Status
Available
Description
This new lathe sets all the standards for a mini variable speed lathe, and is the best value on the market. Solid construction, superb finish and the convenience of electronic variable speed, perfect for beginners or professionals. Featuring 0.75HP power, a remote (magnetized) control box and a 200mm premium tool rest, this lathe is fantastic value. The optional bed extension allows the turner to produce chair or table legs as well as traditional bowls and smaller spindle pieces. In addition, mounted at the head stock end, the extension increases the swing to 380mm.
Features

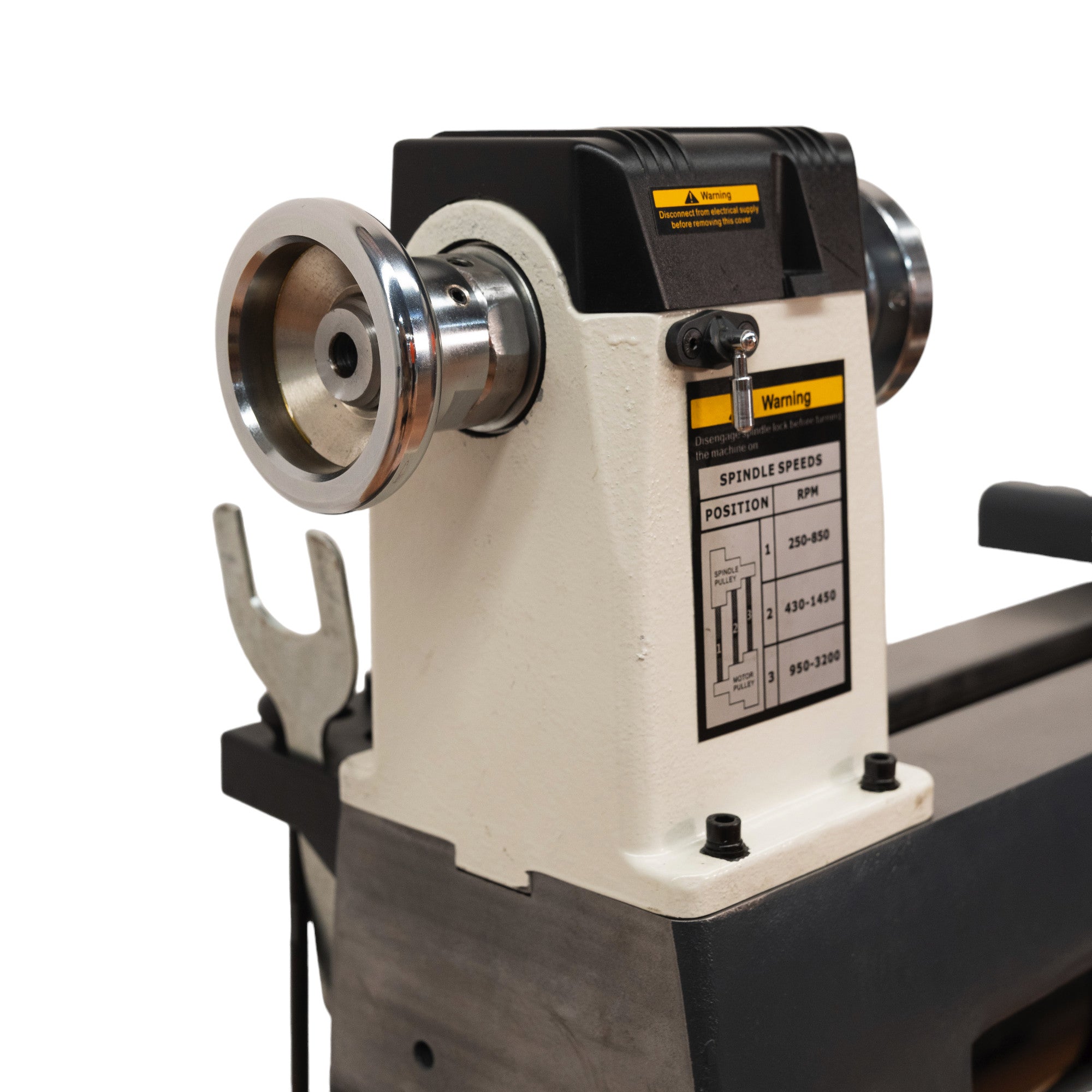

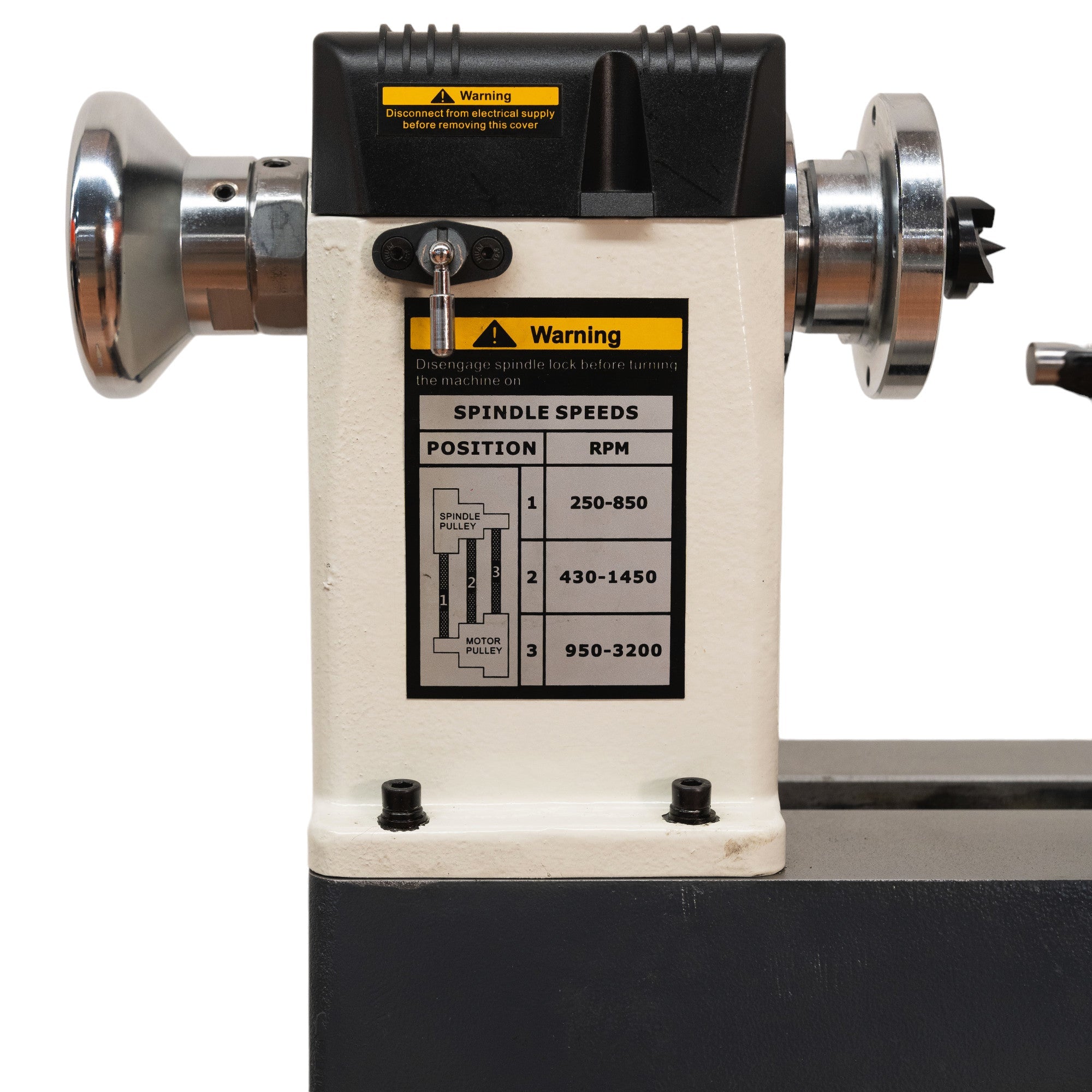

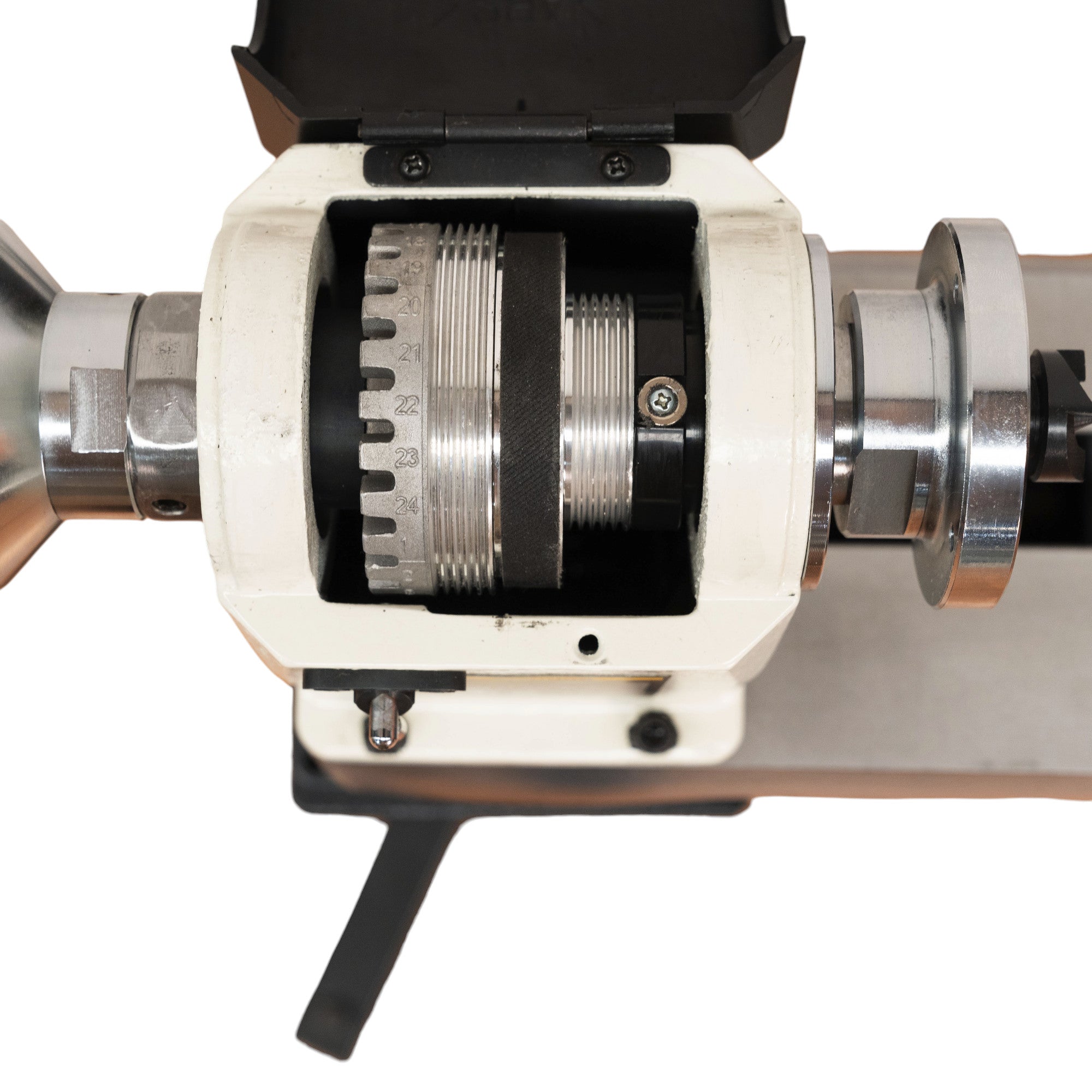

- Easy access to the pulleys to allow a quick change across the speed range.

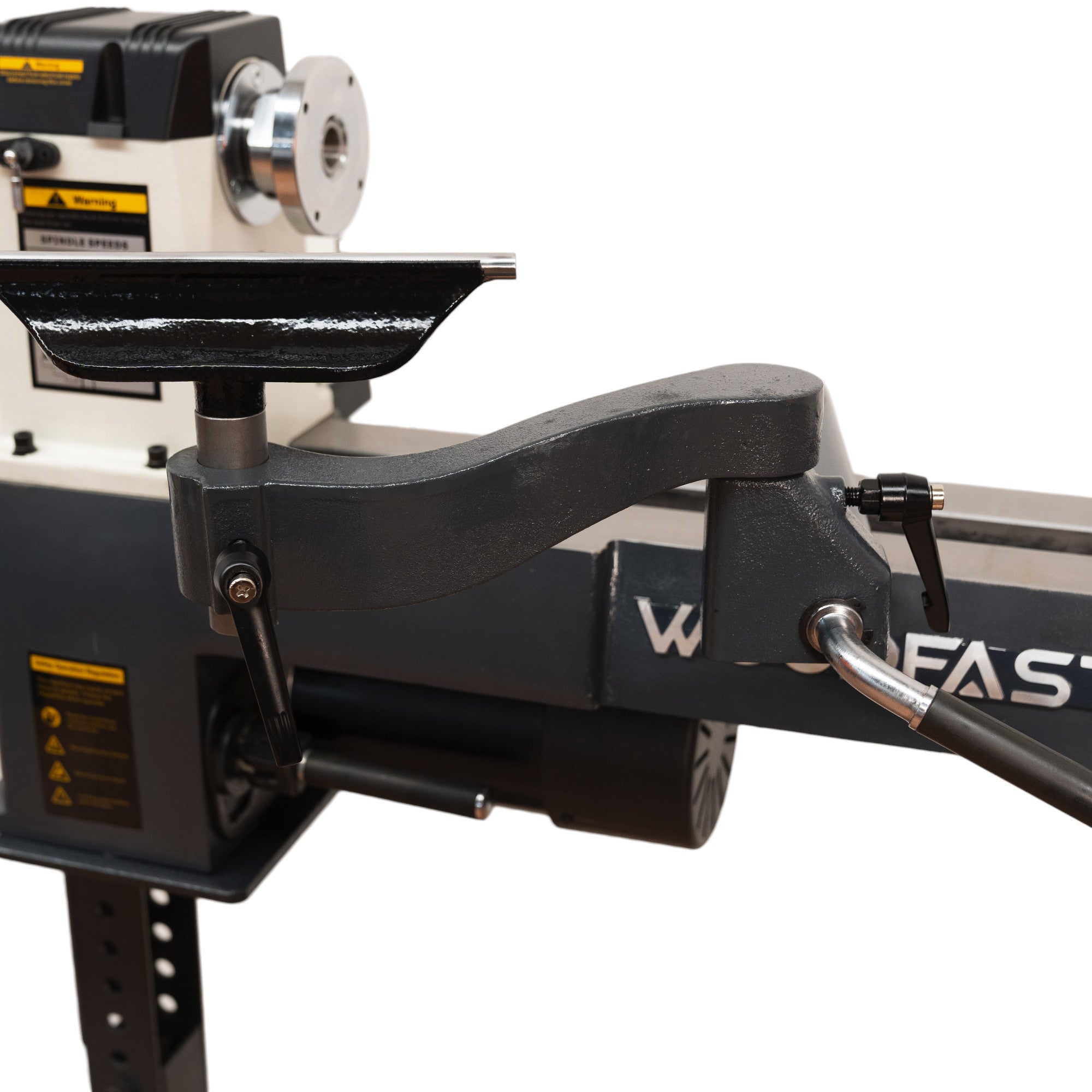

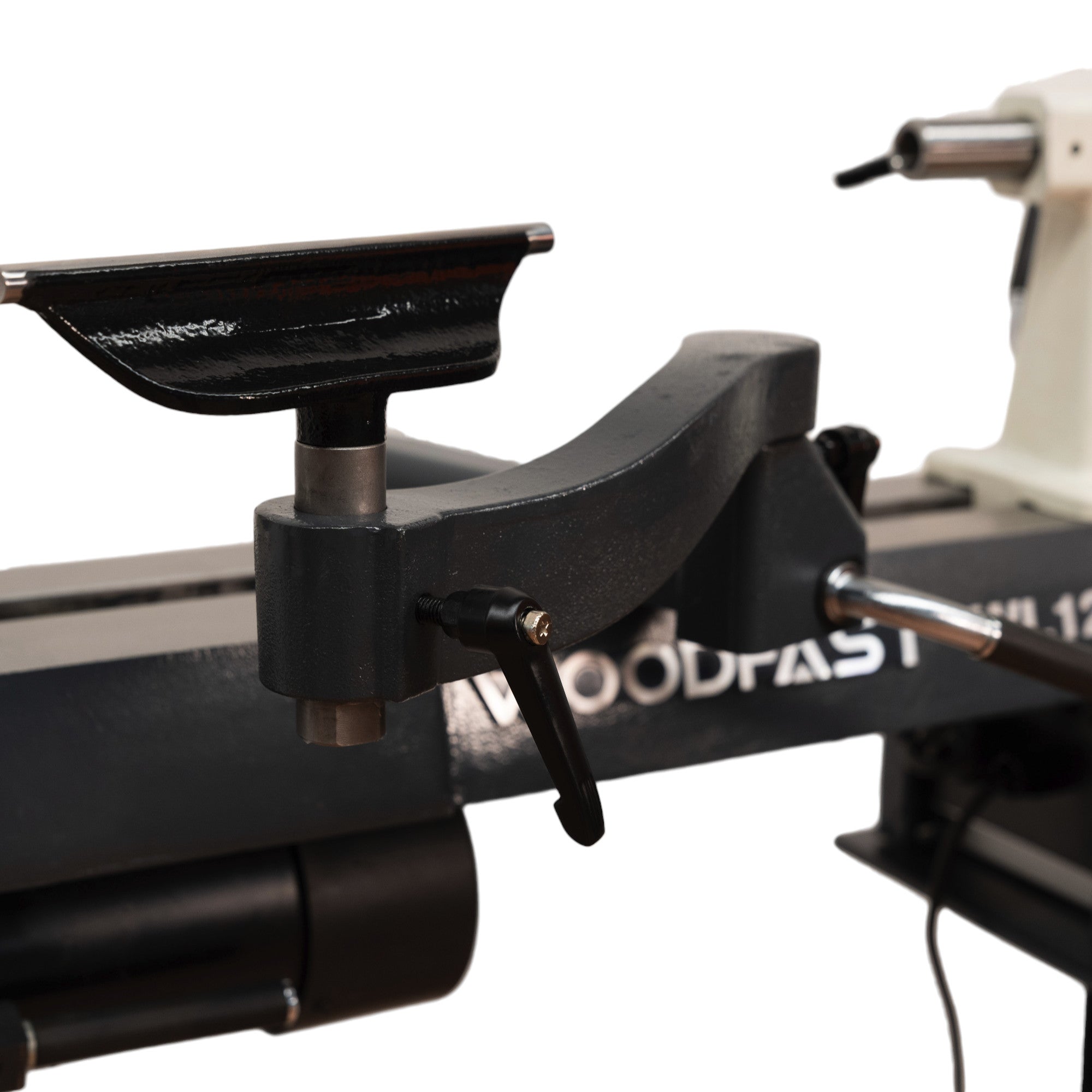

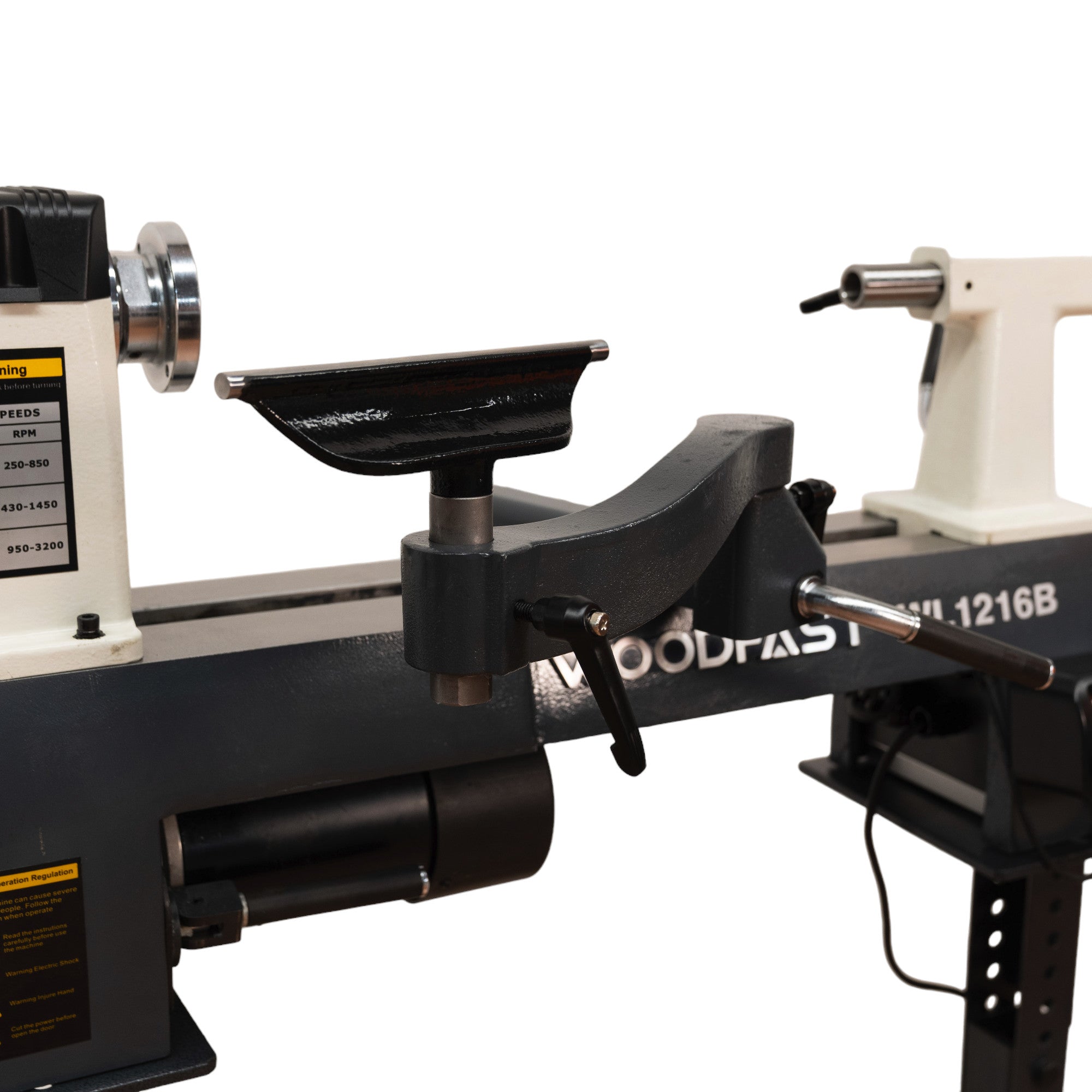

- Heavy duty banjo with premium solid steel topped Tool Rest.

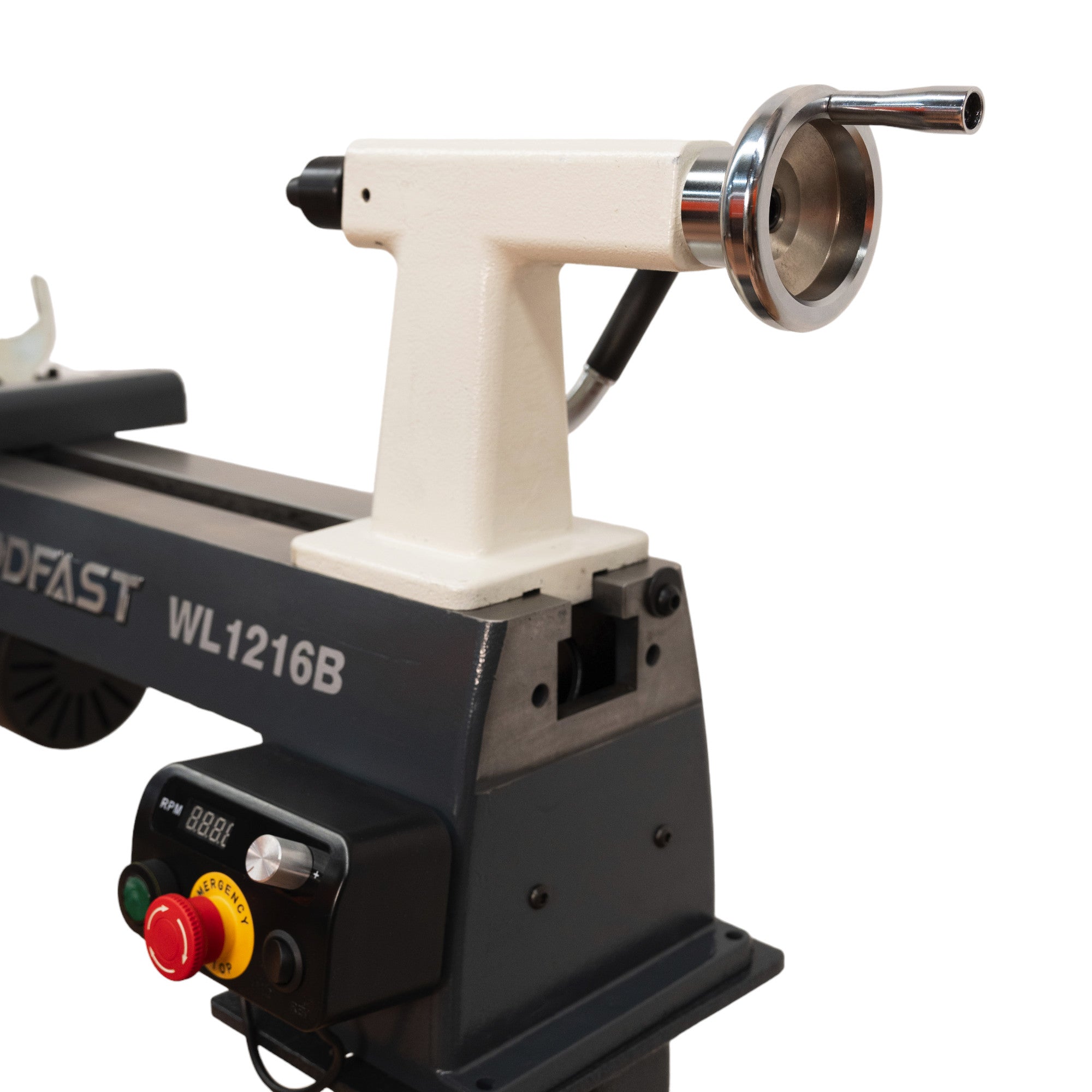

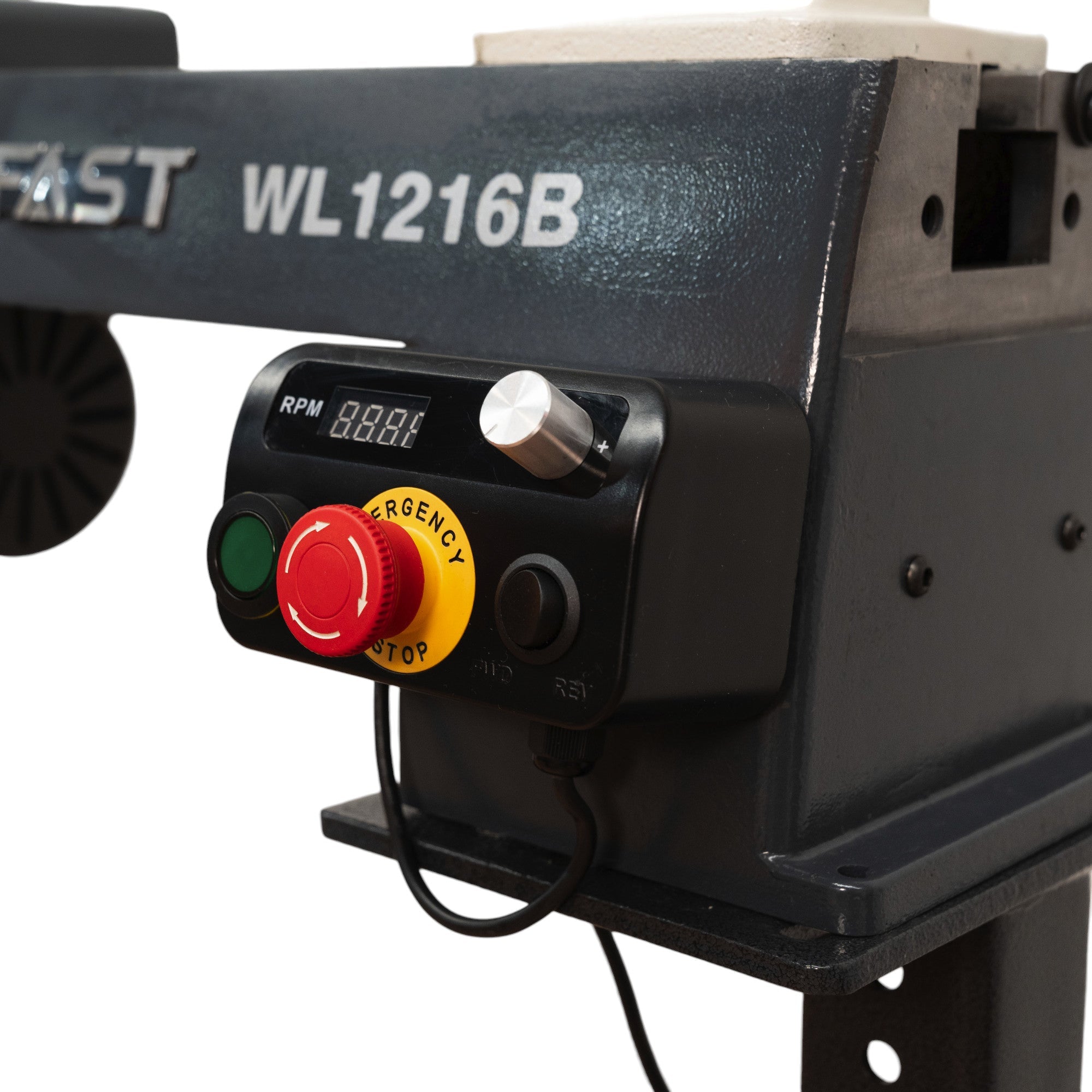

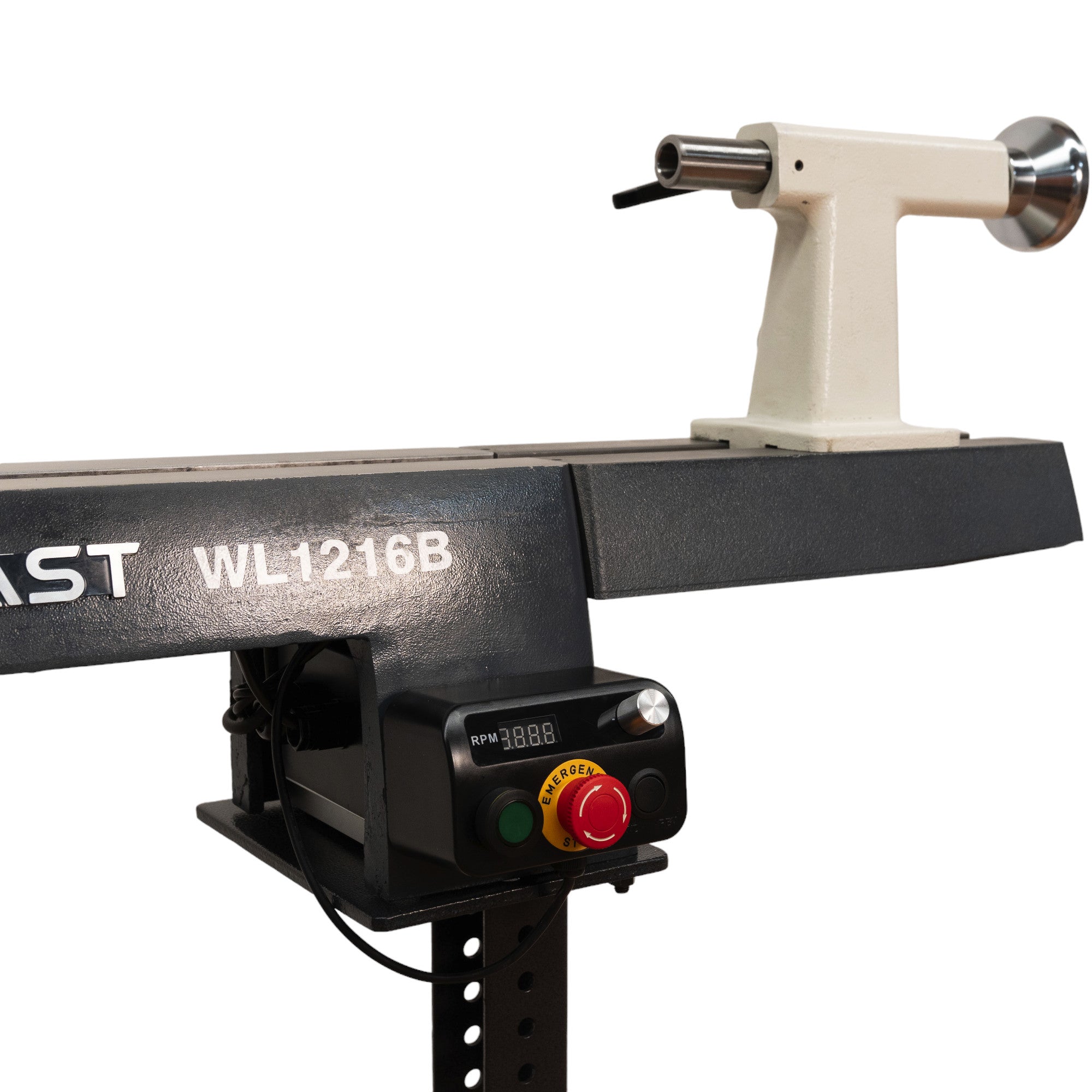

- Premium magnetised control box with Digital Speed Display. Emergency Stop and Reverse switches.

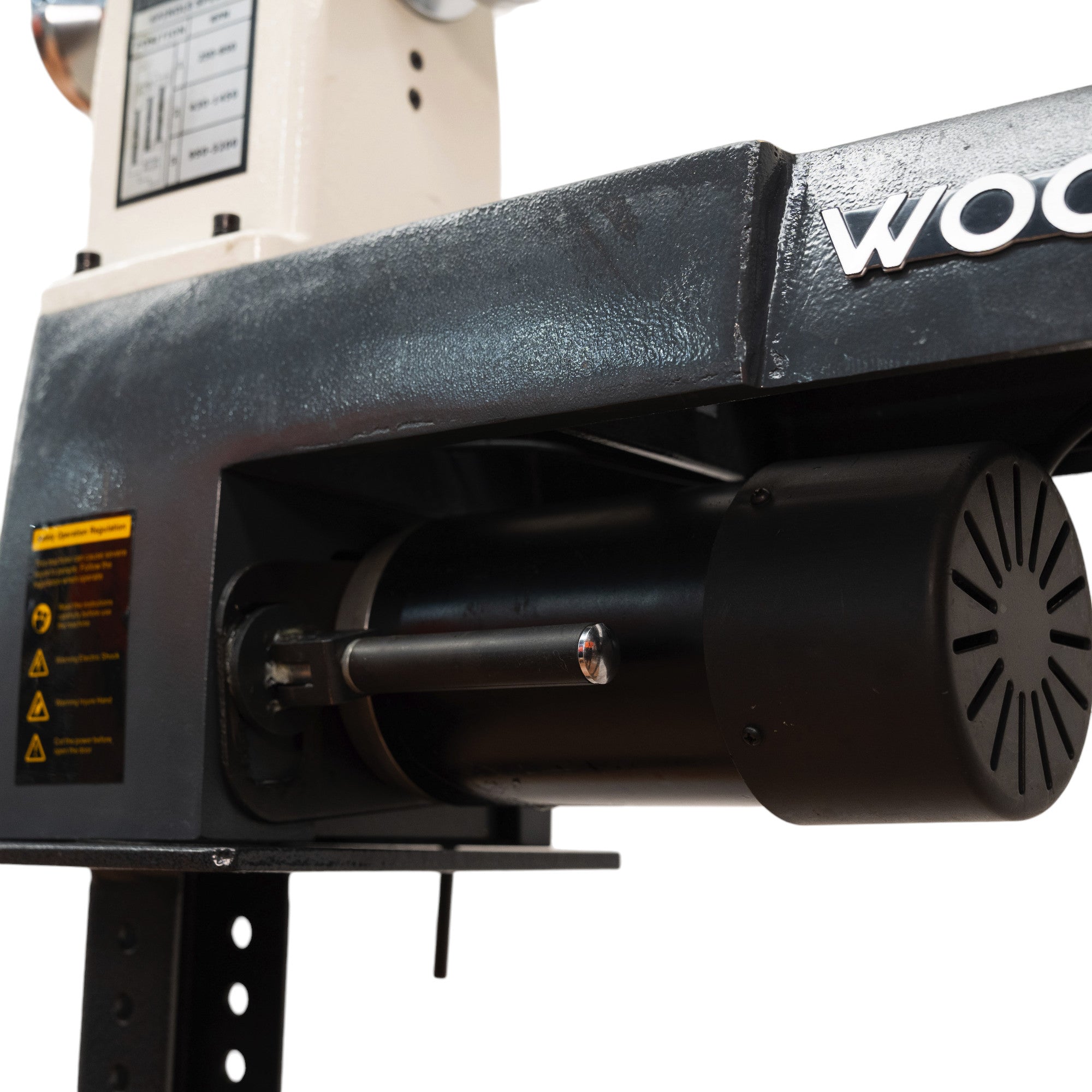

- Powerful 0.75HP motor provides plenty of power in this mini lathe.
- Quality ”soft grip” lever releases the motor for a belt change.

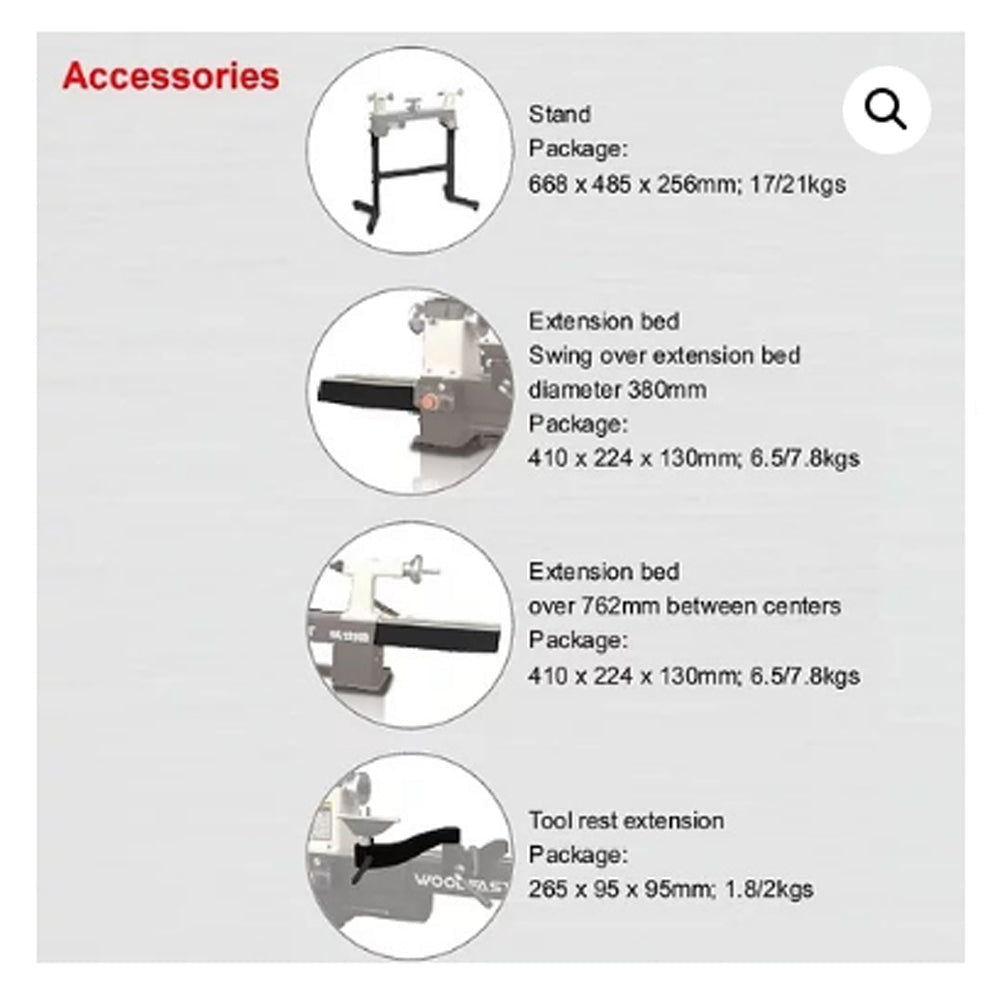

Options

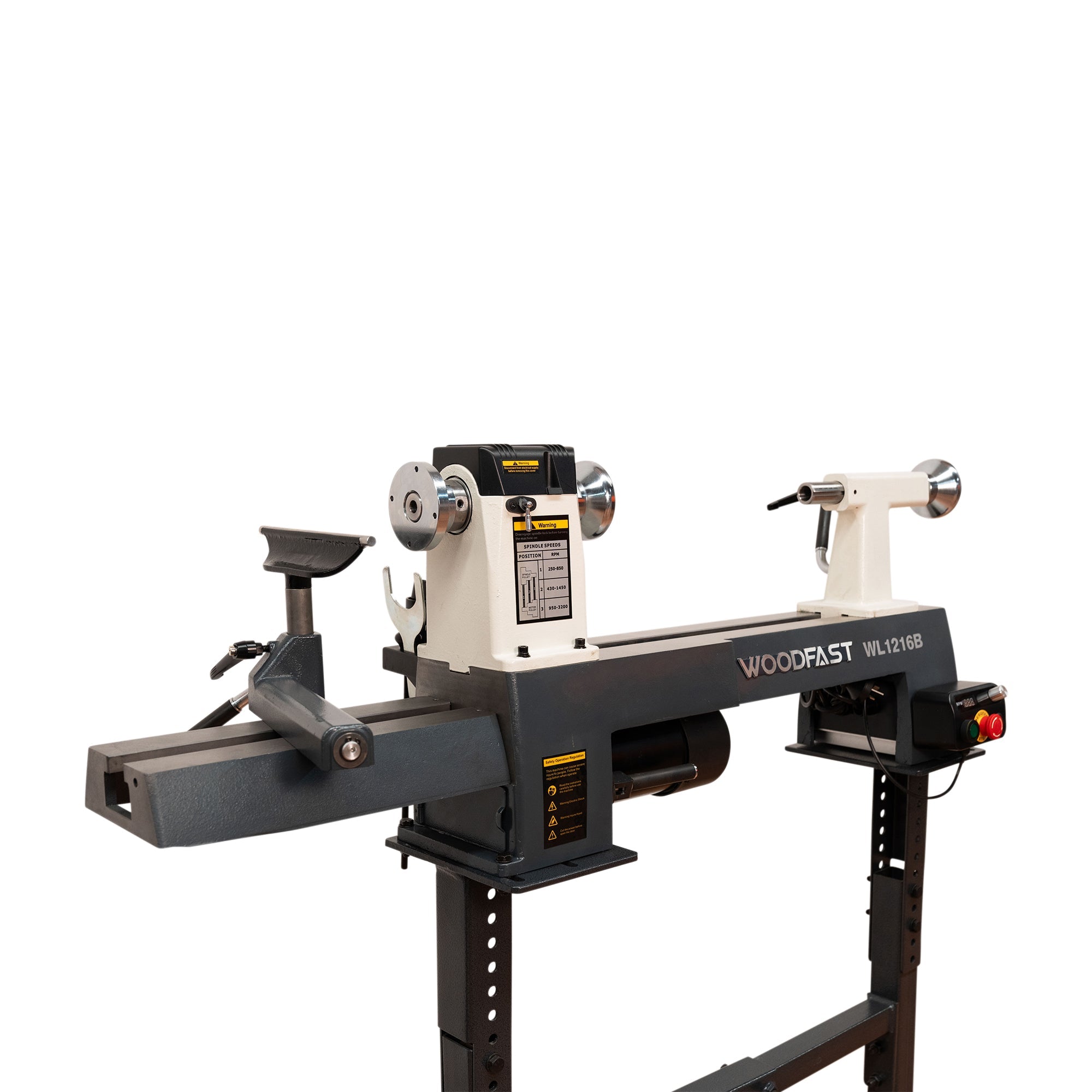

- Extension Bed
- Stand for Extension Bed
- Stand
- 300mm (12″) Tool Rest
- 100mm (4″) Tool Rest
- Tool Rest Extension
Videos
1. Woodfast Universal Stand video on YouTube

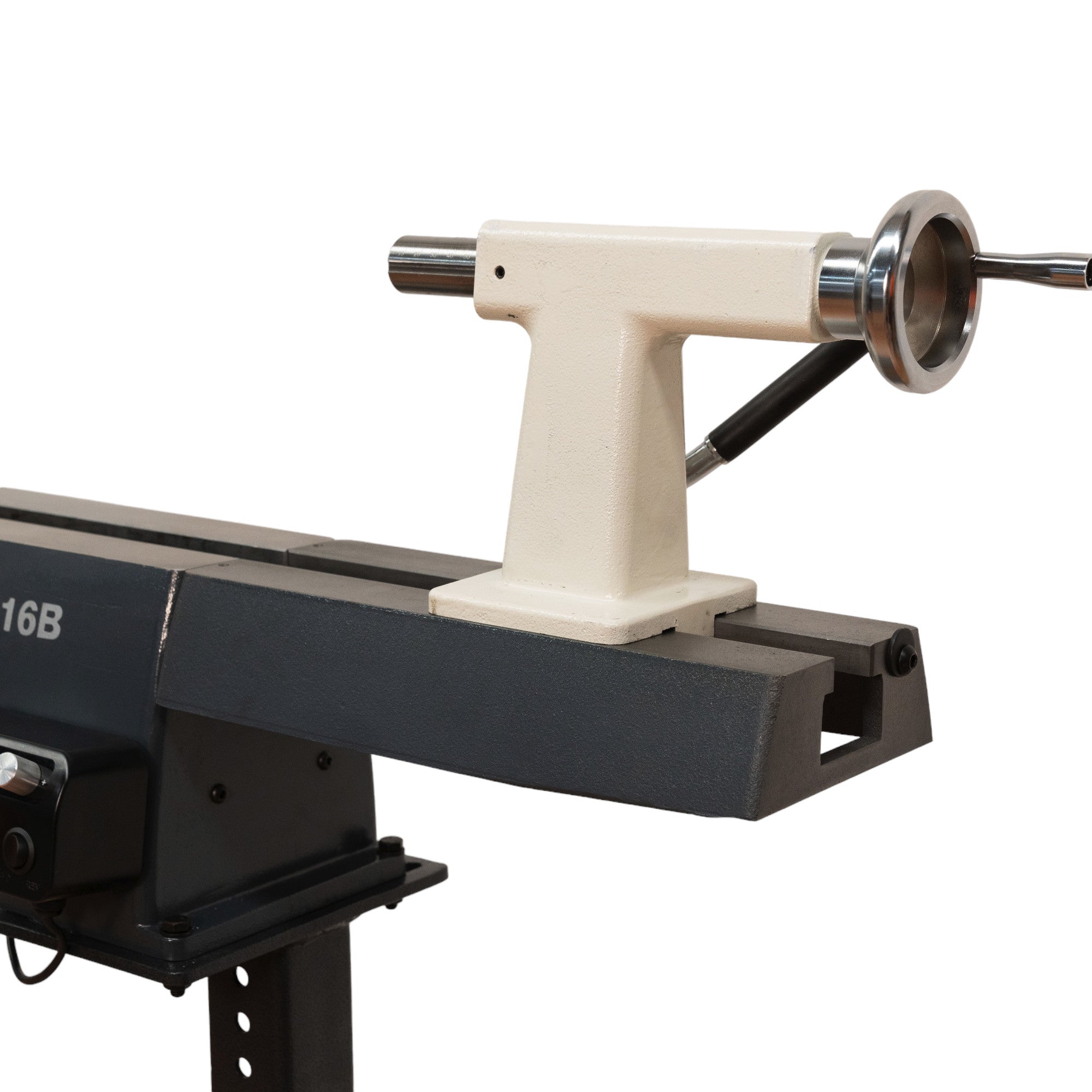

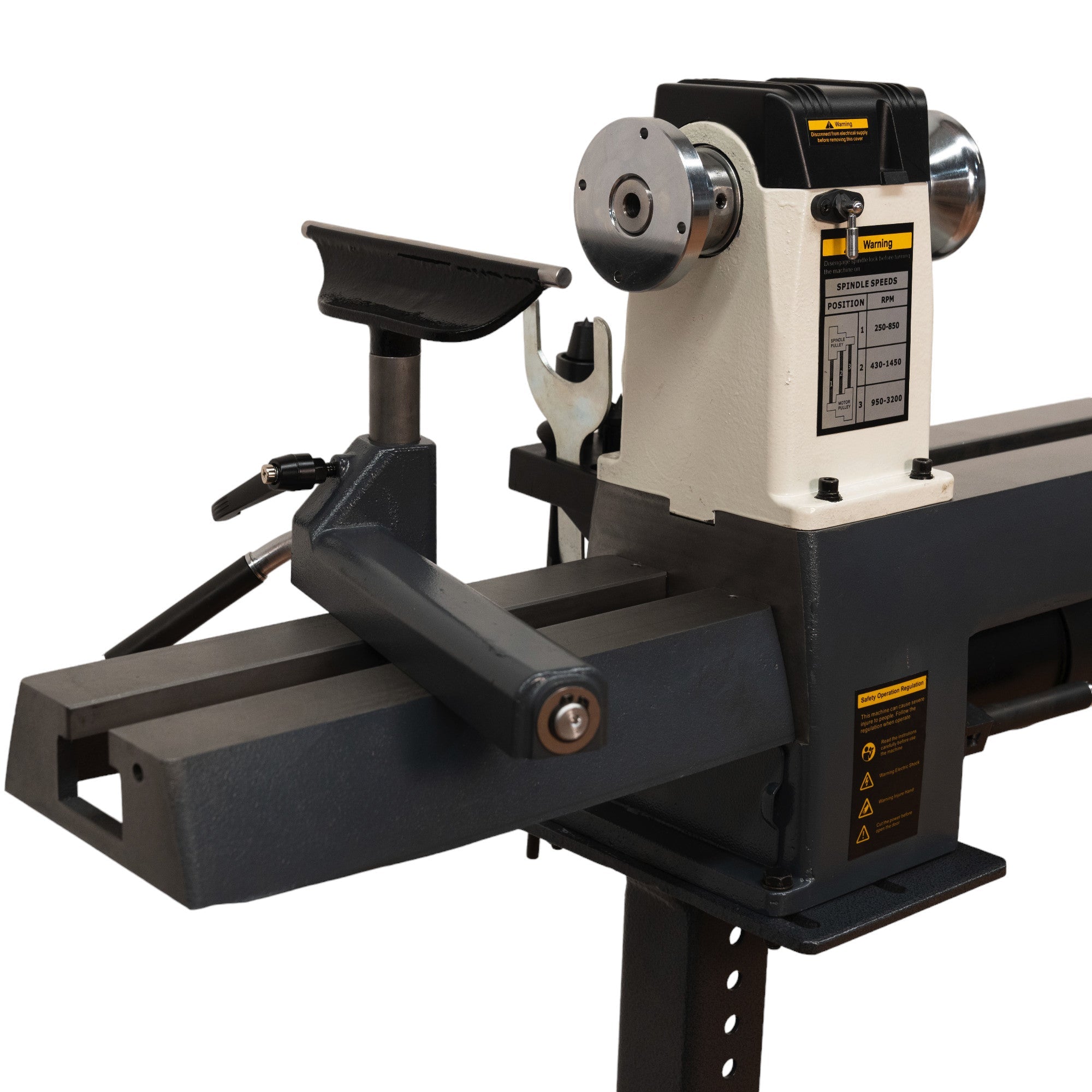

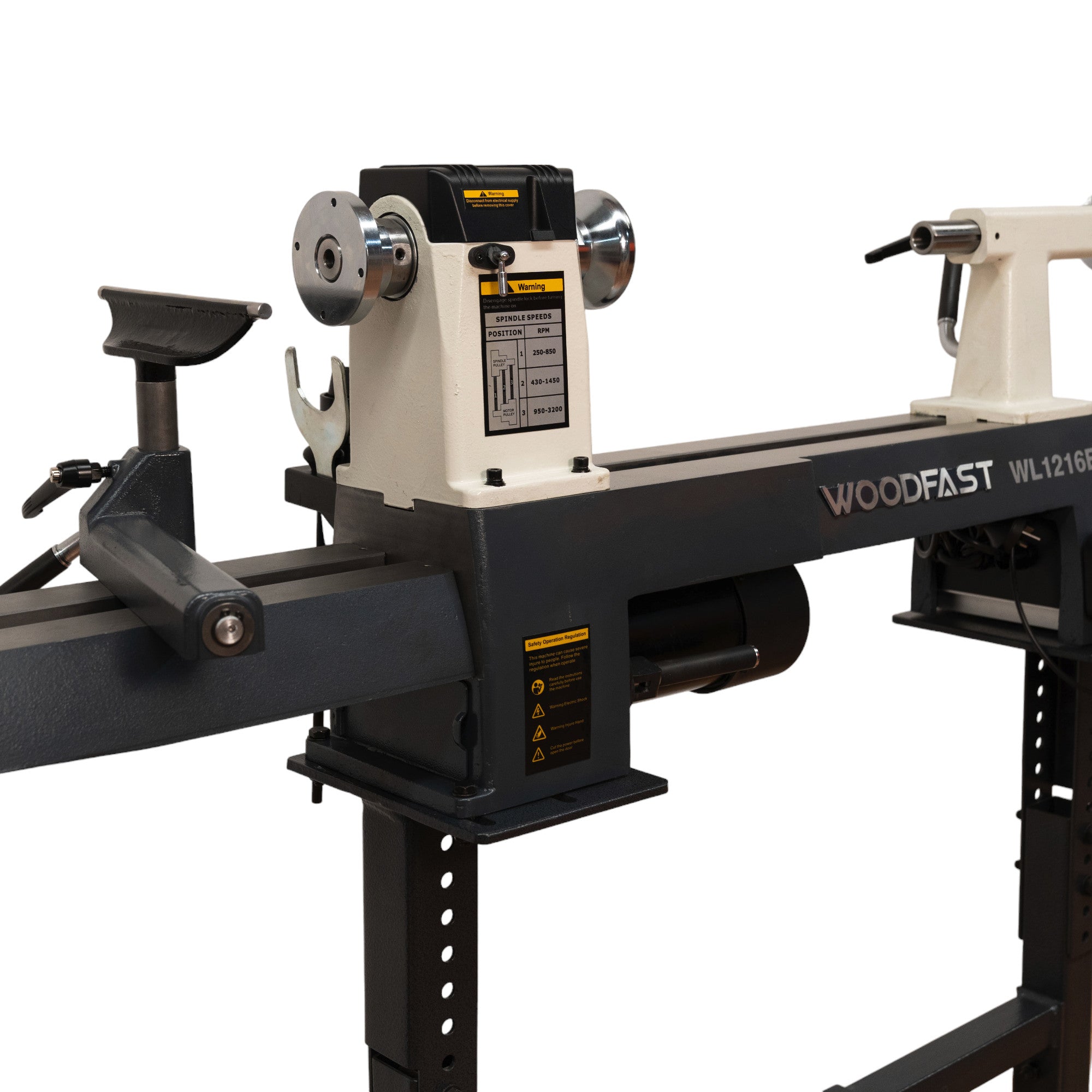

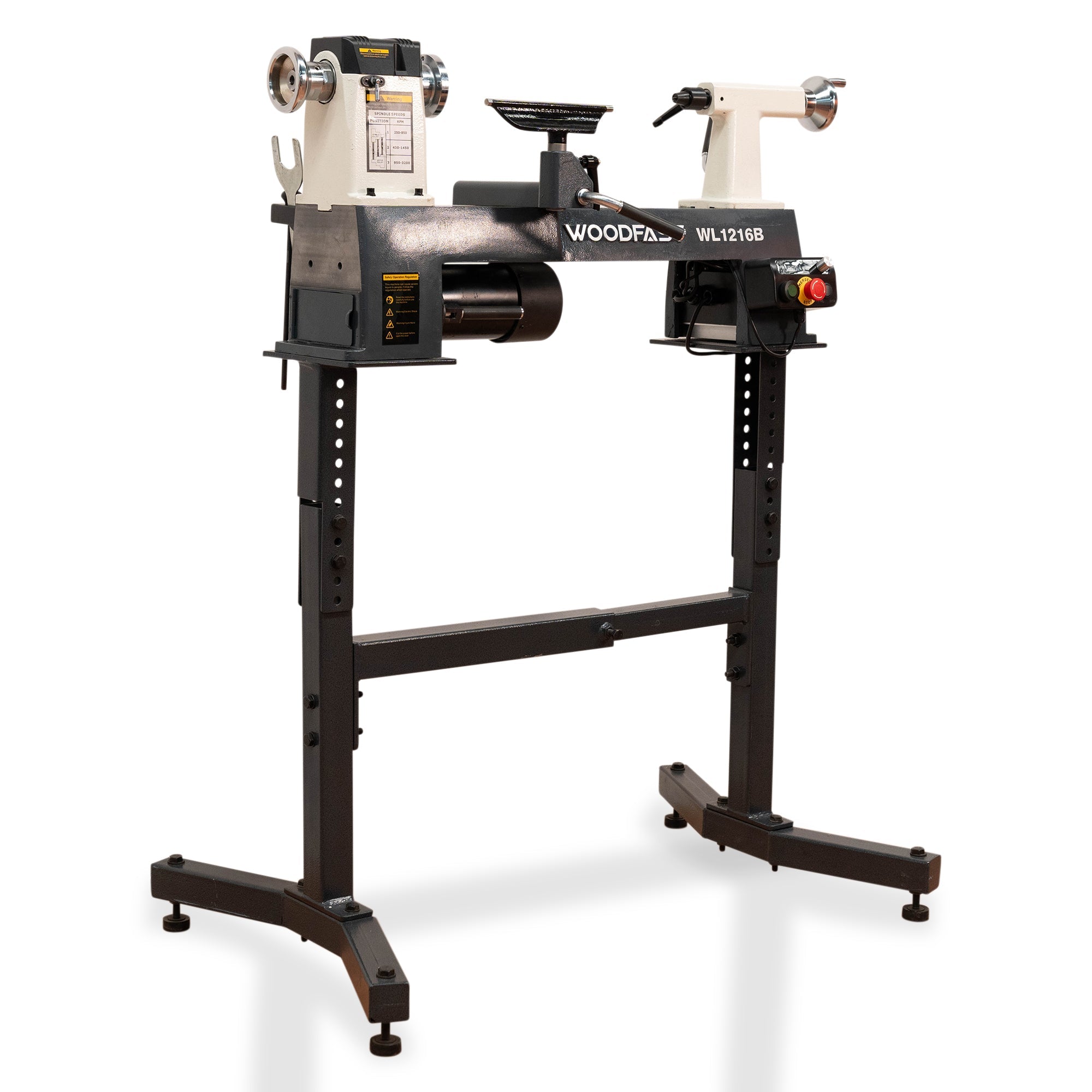

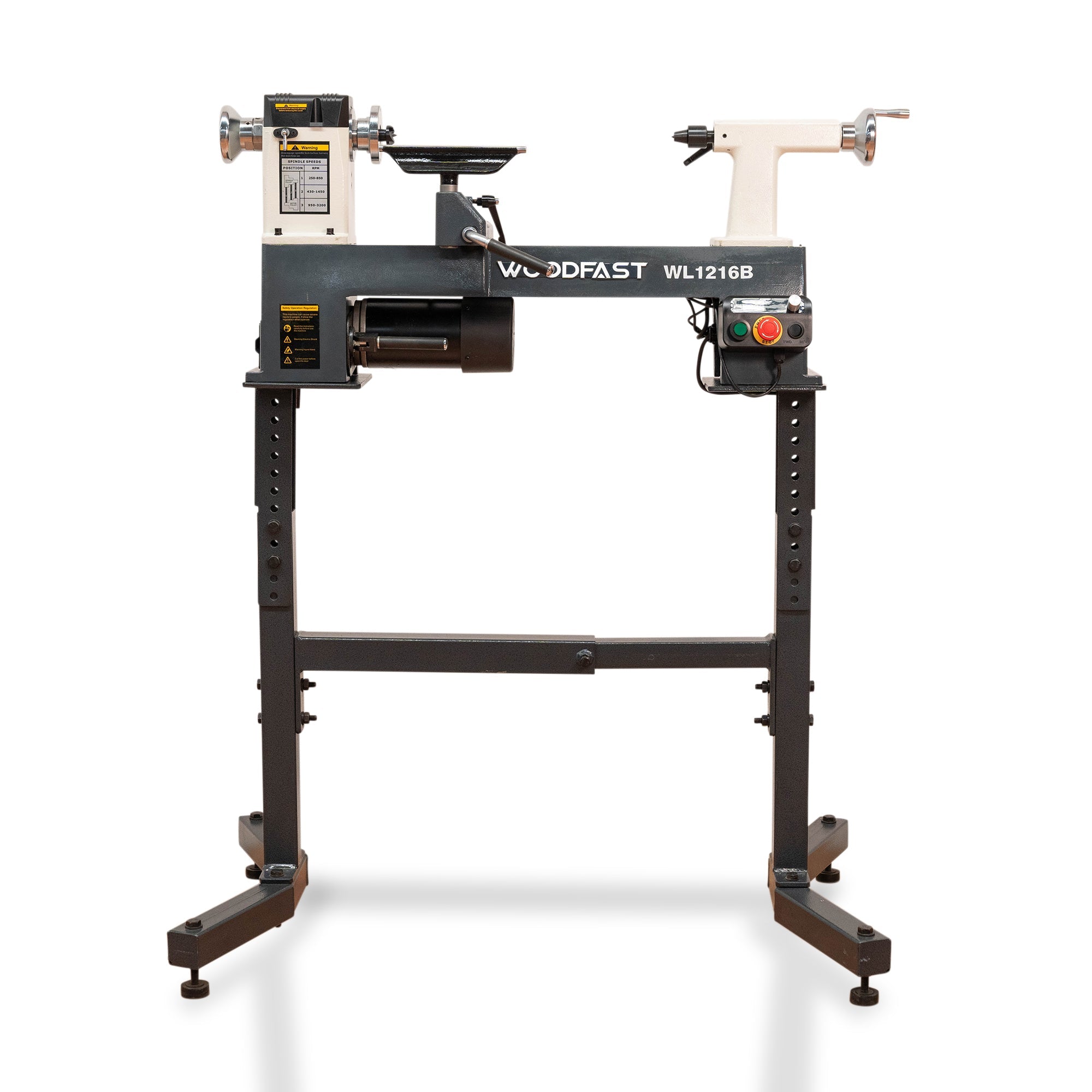

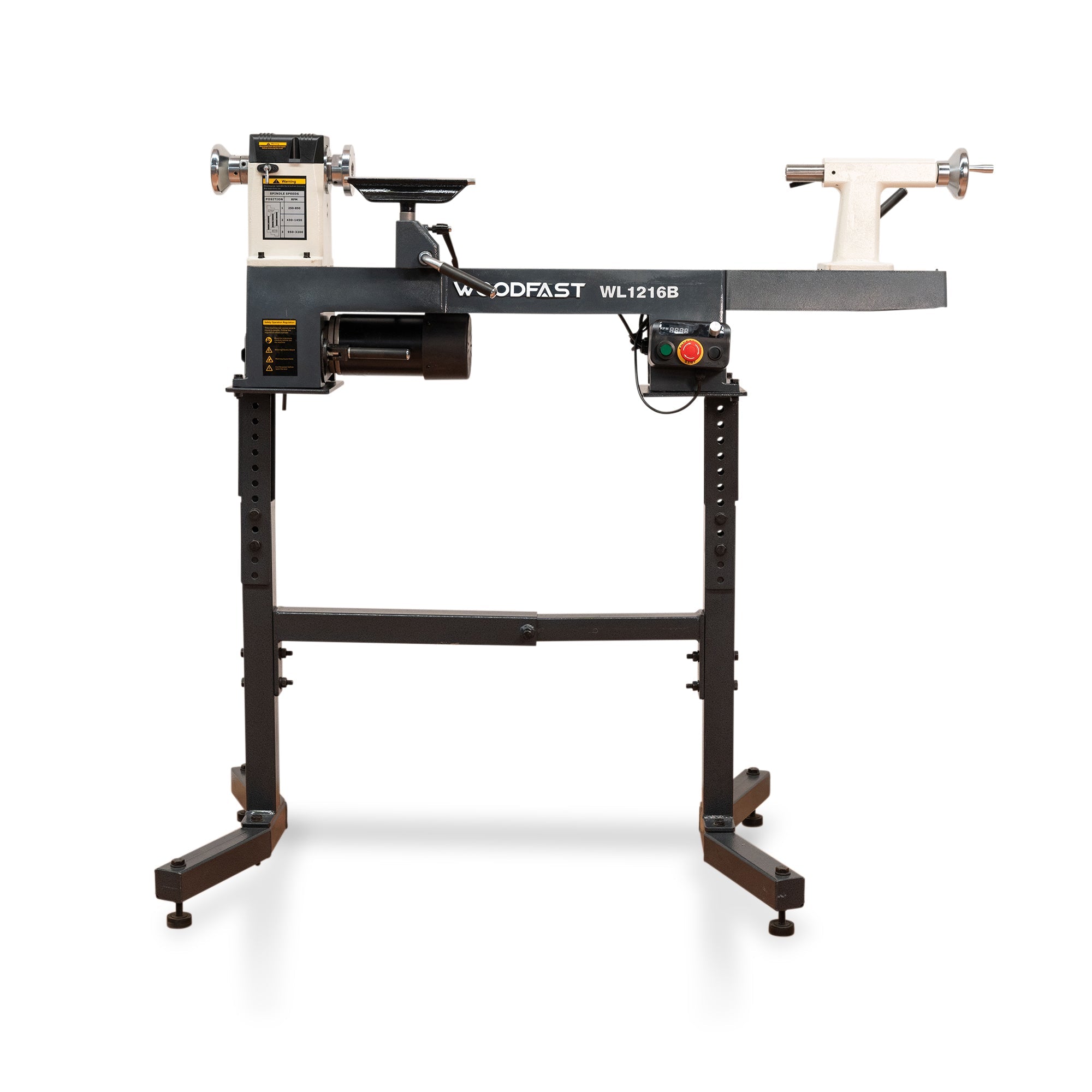

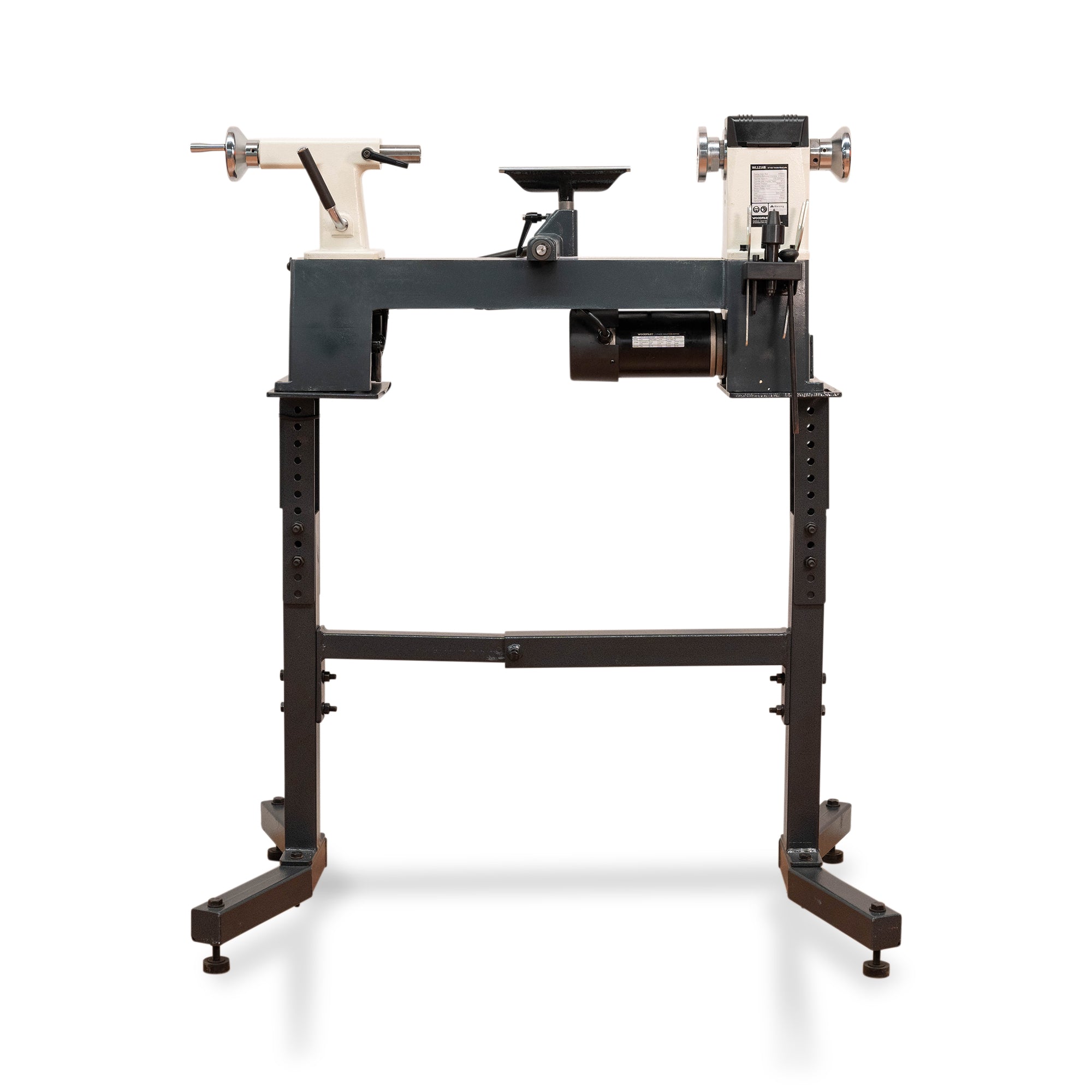

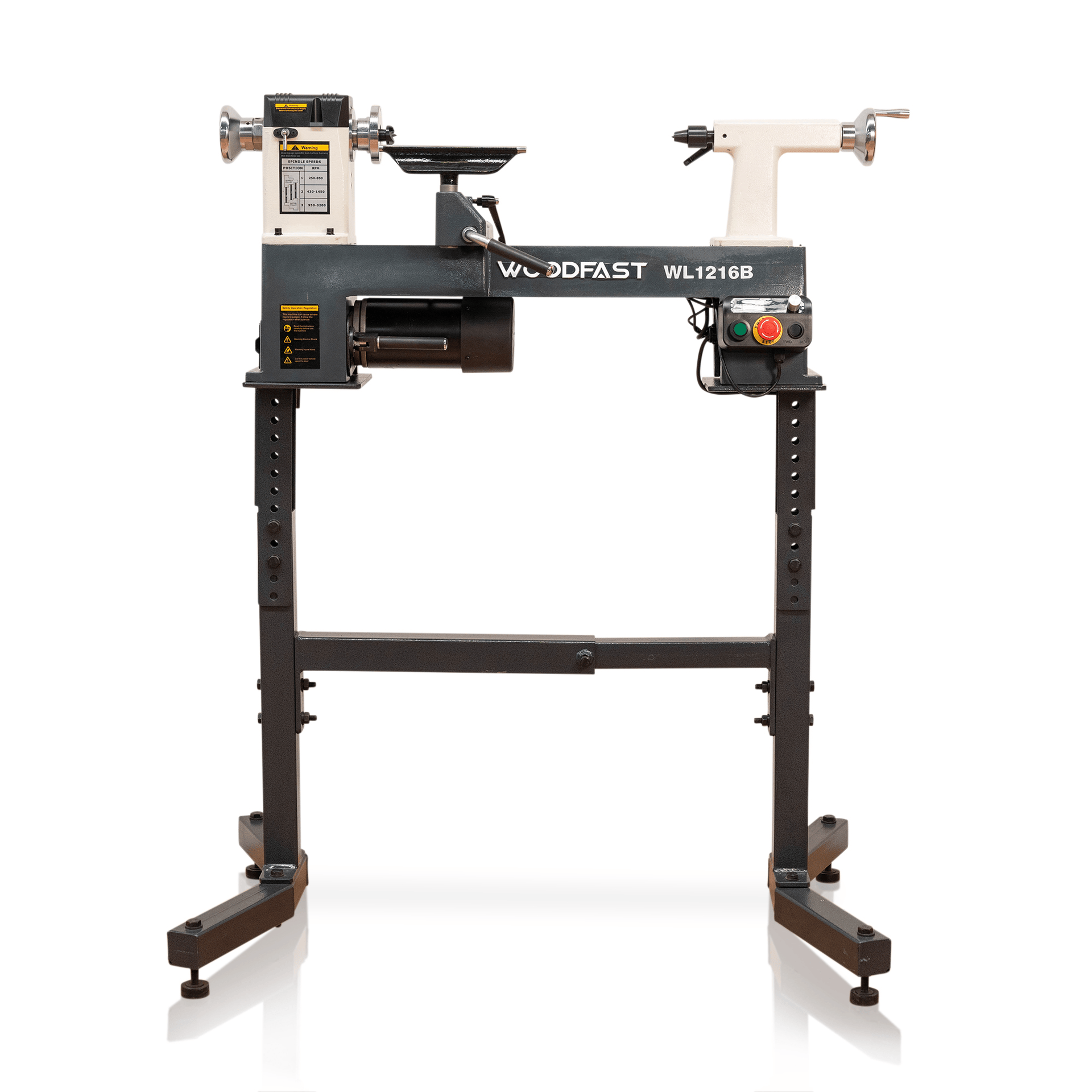

Please note product images are shown with Optional Lathe Stand and Extension Bed, not included as standard.
Additional Information
Model
Type
Woodturning Lathe
SKU
8001558
Part Number
WL1216B
Barcode
745240316343
Brand
Woodfast
Size
305mm (12") Swing x 419mm (16-1/2") Between Centres
Size*
305mm (12") Swing x 419mm (16-1/2") Between Centres
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
1HP (750W)
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
550W (0.75HP)
Distance Between Centres
419mm (16-1/2")
Speed Range
250-3200RPM
Swing Over Bed
300mm (12")
Spindle Taper - Headstock
MT2
Spindle Thread
M30 X 3.5
Country of Origin
Designed, Researched & Developed in
Australia
Workshop (Site) Info
Electrical Connection
10Amp Plug & Lead
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Weight (Gross)
48kg
Whats Included
305mm (12") Swing x 419mm (16-1/2") Between Centres 0.75HP Mini Wood Lathe WL1216B by Woodfast
$999.00
