Type
Thicknesser
SKU
8001570
Part Number
TH530A 415V
Brand
Woodfast
Size
530mm (21")
Status
Available
Description

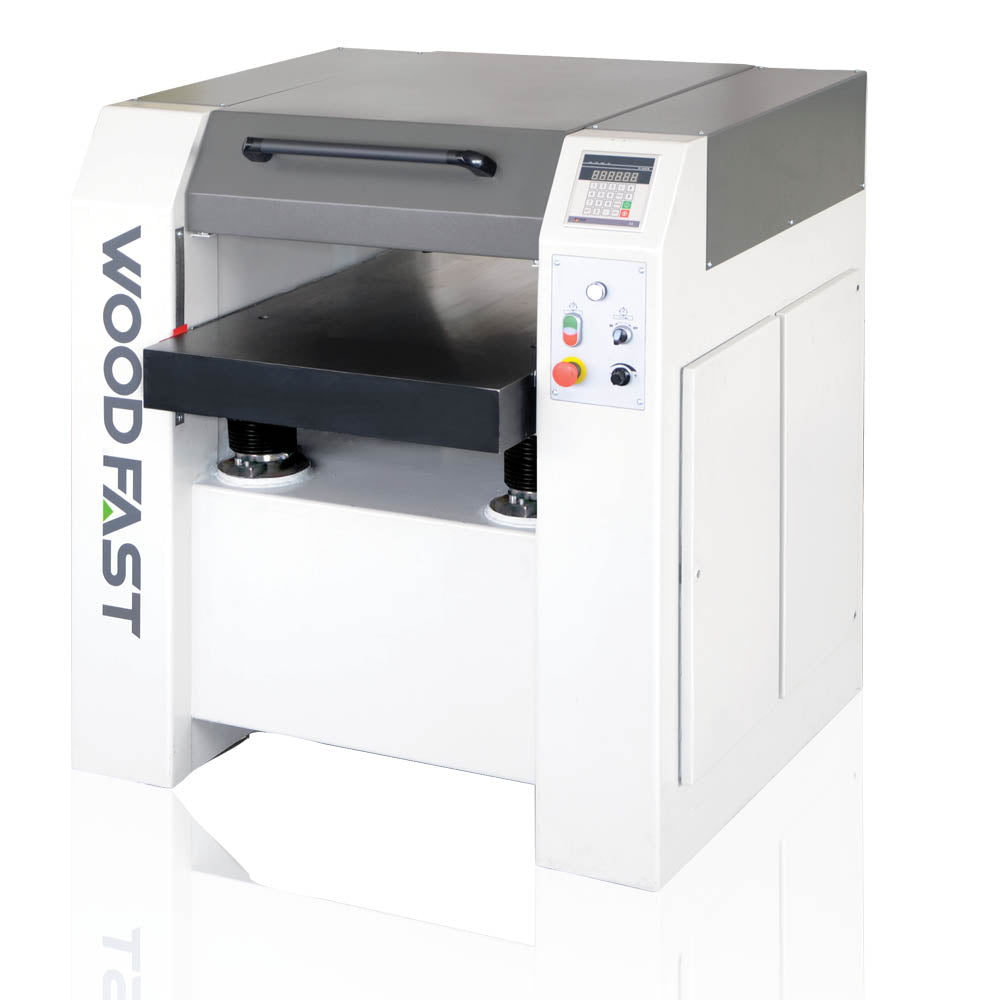

Surfacing lumber to a specific thickness requires a machine that has plenty of power to remove a lot of material from oversized lumber, especially if the boards are wide and hardwood. TH530A with spiral head cutters has proven that it can handle these conditions and reduce smooth surfaces that required little sanding before finishing.
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Blade Type
Spiral Head Cutter Block
Cutting Capacity - Height
220 mm
Feed Speed
6.5m / Min.
Cut Max. Depth @ 0°
4 mm
Table Size
750mm x 530mm
Technical - Saw
Blade (Main) - Speed
4,200RPM
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
97 mm
Blade - Cutter Head Block - Rows
4
Blade - Cutter Head Block Speed (RPM)
4200
Blade - Cutter Head Block - No. of Blades / Tips
72
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Digital Speed Display
Digital Speed Display
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Safety
Safety Switch
Safety Switch
Safety switches are low-wear and low-maintenance when it comes to safe monitoring of doors or safe position monitoring.
Magnetic safety switches on all openings
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Dust Port
1 x 120mm
Workshop (Site) Info
Electrical Connection
15Amp Plug & Lead
Other Requirements
A dust collector is highly recommended
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years
Packaging + Shipping
Shipping Weight (Gross)
526.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
Whats Included
530mm (21") Thicknesser with Spiral Head Cutter Block TH530A by Woodfast *Special Order*
$14,950.00
