Status
Available
Description

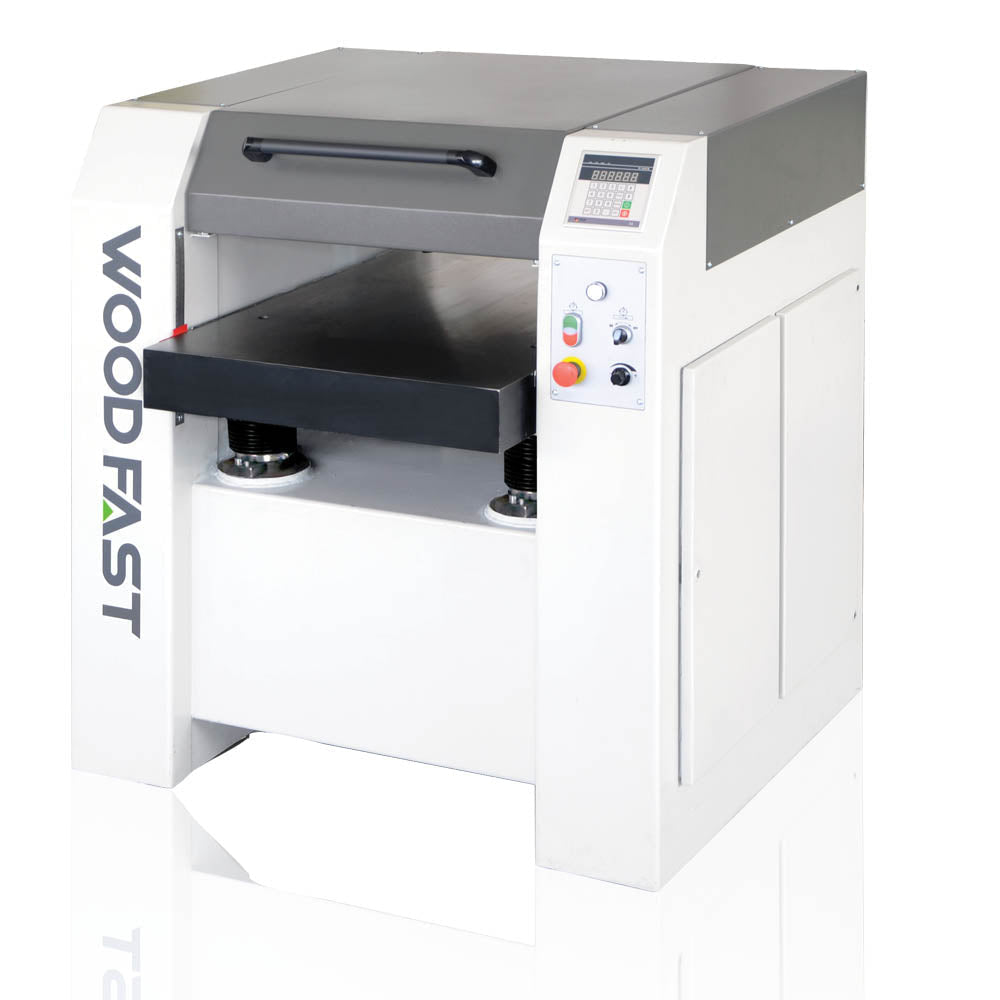

630mm (25") Industrial Thicknesser with Spiral Head Cutter Block 10HP 415V TH630A by Woodfast *Special Order*
Specification
- Minimum Height for Working Table - 600mm
Additional Information
Model
Type
Thicknesser
SKU
9700056
Part Number
TH630A
Brand
Woodfast
Size
630mm (25")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Blade Type
Spiral Head Cutter Block
Blade Width
630mm (25")
Cutting Capacity - Height
300mm
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
117mm
Blade - Cutter Head Block Speed (RPM)
5500
Blade - Cutter Head Block - No. of Blades / Tips
108
Country of Origin
Manufactured in
China
Features
Variable Speed
Variable Speed
Variable speed motors generally start a motor at zero voltage and ramp it up slowly. This minimises the power needed to set the mechanism into operation, which in turn reduces the wear and tear on the motor. Variable speed also enables equipment to have precise speed control.
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
2 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
1220mm
Shipping Width
1150mm
Shipping Height
1325mm
Shipping Weight (Gross)
667kg
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
Product Accessories
Product Accessories
- 1000mm x 410mm x 650-1100mm H Heavy Duty Roller Support Conveyor Stand 26122 by Oltre
- 1000mm x 600mm x 580-1030mm H Roller Support Conveyor Stand HRT60-4 by Oltre *Special Order*
- 1065mm x 470mm x 650-1100mm H Heavy Duty Roller Support Conveyor Stand 26123A by Oltre
- 1200mm x 465mm x 650-1100mm H Heavy Duty Roller Support Conveyor Stand 26124A by Oltre
- 1650mm x 470mm x 650-1100mm H Heavy Duty Roller Support Conveyor Stand 26123 by Oltre
- 1680mm x 500mm x 650-1100mm H Roller Support Conveyor Stand HRT57-9 by Oltre
Whats Included

Woodfast 630mm (25") Industrial Thicknesser with Spiral Head Cutter Block 10HP 415V TH630A *Special Order*
$16,950.00
