Type
Cyclone Dust Collector / Extractor
SKU
8601542
Part Number
CD300A-415V
Part Number
CD300A-240V
Brand
Woodfast
Status
Available
Description
Mobile cyclone dust extractor suitable for small to medium sized trade workshops.
Features
- 3HP powerful motor can provide 3000m3/hr air flow volume with dust removal efficiency up to 99%.
- 5HP motor can provide 5000m3/hr air flow volume with dust removal efficiency up to 99%.
- The micron level high efficient filtration system will completely solve the dust problem and achieve a double separation of wood and dust
- Three dust suction ports to suit multiple equipment at the same time.
- Solid Base with Mobility Wheels for Easy Movement
- 174L Large Capacity Dust Bin with Bag Supplied for Easy Dust Collection and High Load Requirements
- 200mm Outlet to 3 x 100mm Outlets
Specifications - 3HP Version
- Air flow: 3,000m3/HR
- Motor Speed: 2800RPM
- Noise Level: 78dB(A)@3m
- Filter Area: 4.32 m2
Specifications - 5HP Version *Pre-Production - ETA Unknown*
- Please note this model is currently in pre-production.
Options
- CD300A-240V
- CD300A-415V
Options
- CD300A-240V
- CD300A-415V
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)
Filter Class
HEPA
Filtration Rate
1 Micron
Filter Bag / Sleeve Diameter
400 mm
Filter Bag / Sleeve Height
660 mm
Filter Bag / Sleeve Volume
174L
Filter Bag / Sleeve Material
Cartridge Canister Filter
Collection Bag Material
Plastic
Motor Speed (RPM)
2800
Dimensions
Product Length
800 mm
Product Width
820 mm
Product Height
1900 mm
Product Weight (Net Weight)
145 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Standard Inclusions
Tool Kit with 10mm Spanner, 13mm Spanner + Hex Keys
Safety
Dust Port
1 x 200mm with adaptor (3 x 100mm)
Workshop (Site) Info
Electrical Connection

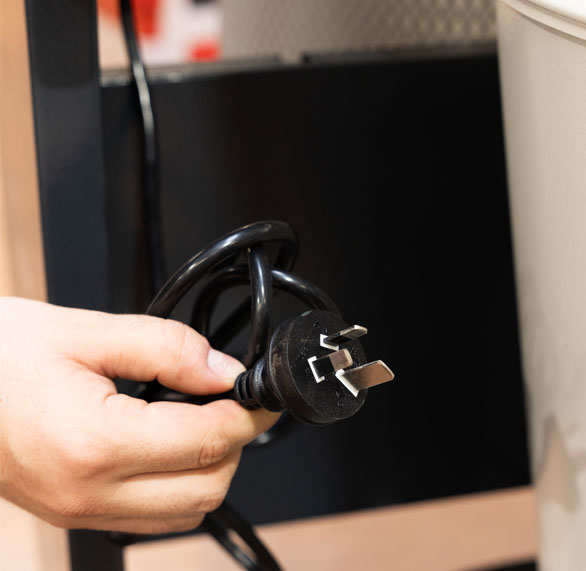

15Amp Plug & Lead
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
12 Months (Wood Dust) or 3 Months (Other Non-Wood Dust)
Brochure
Packaging + Shipping
Shipping Weight (Gross)
296.0 kg
Carton 1 (L X W X H x KG)
1235 x 760 x 1130mm (Main Engine)
Carton 2 (L X W X H x KG)
1550 x 375 x 220mm (Column)
Carton 3 (L X W X H x KG)
844 x 540 x 520mm (Filter Element)
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
Whats Included
Industrial Cyclone Dust Collector / Extractor CD300A by Woodfast
$2,999.00
