Status
Available
Description

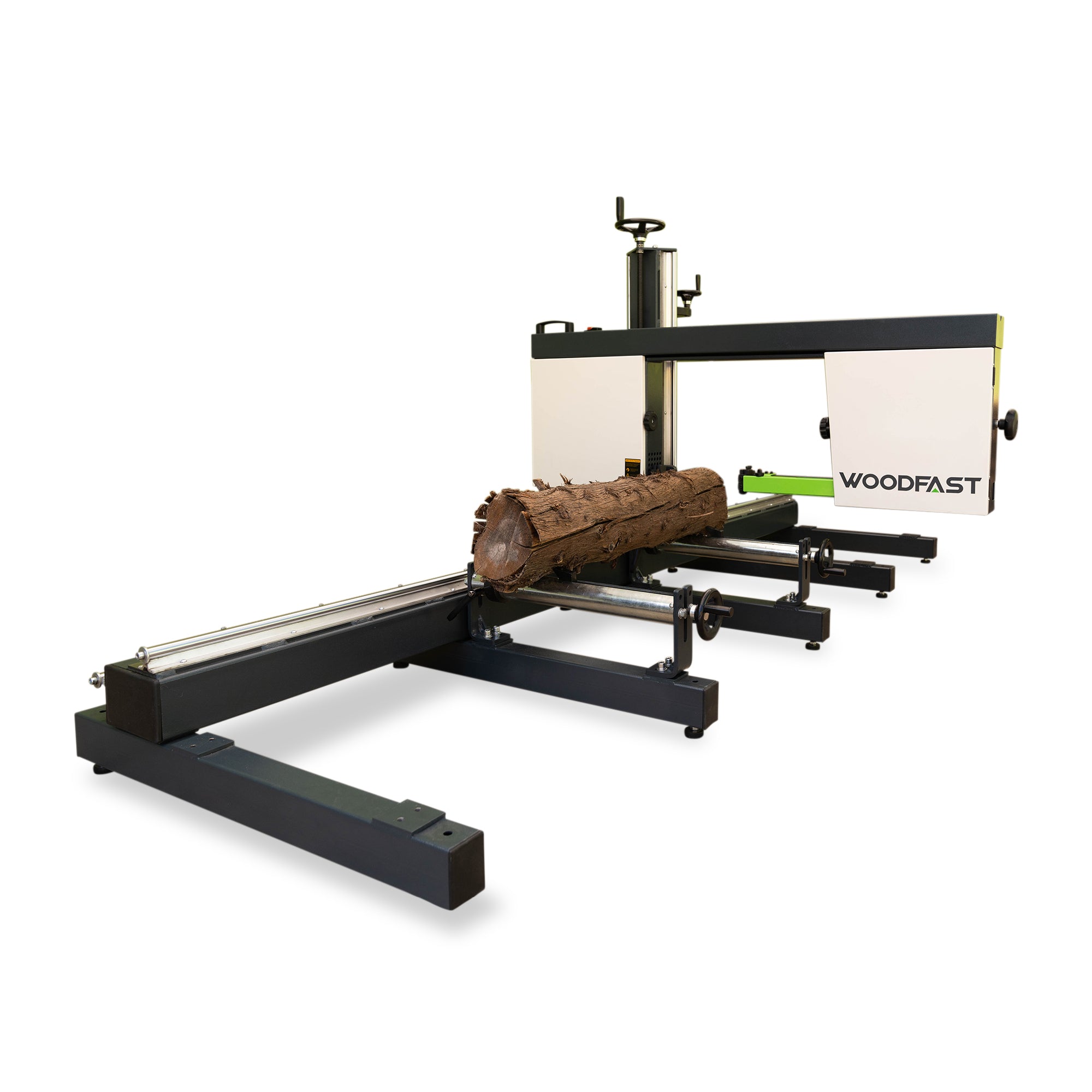

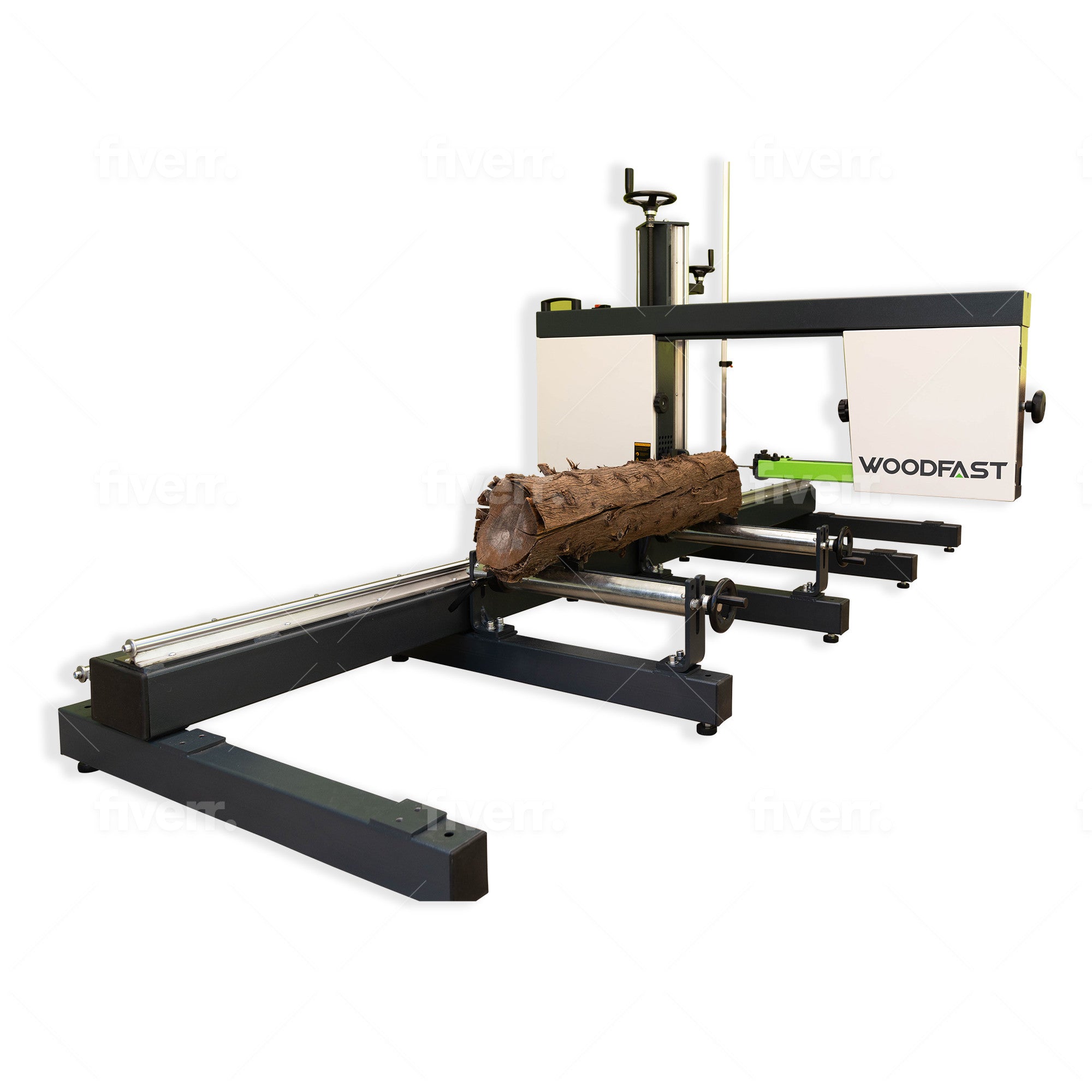

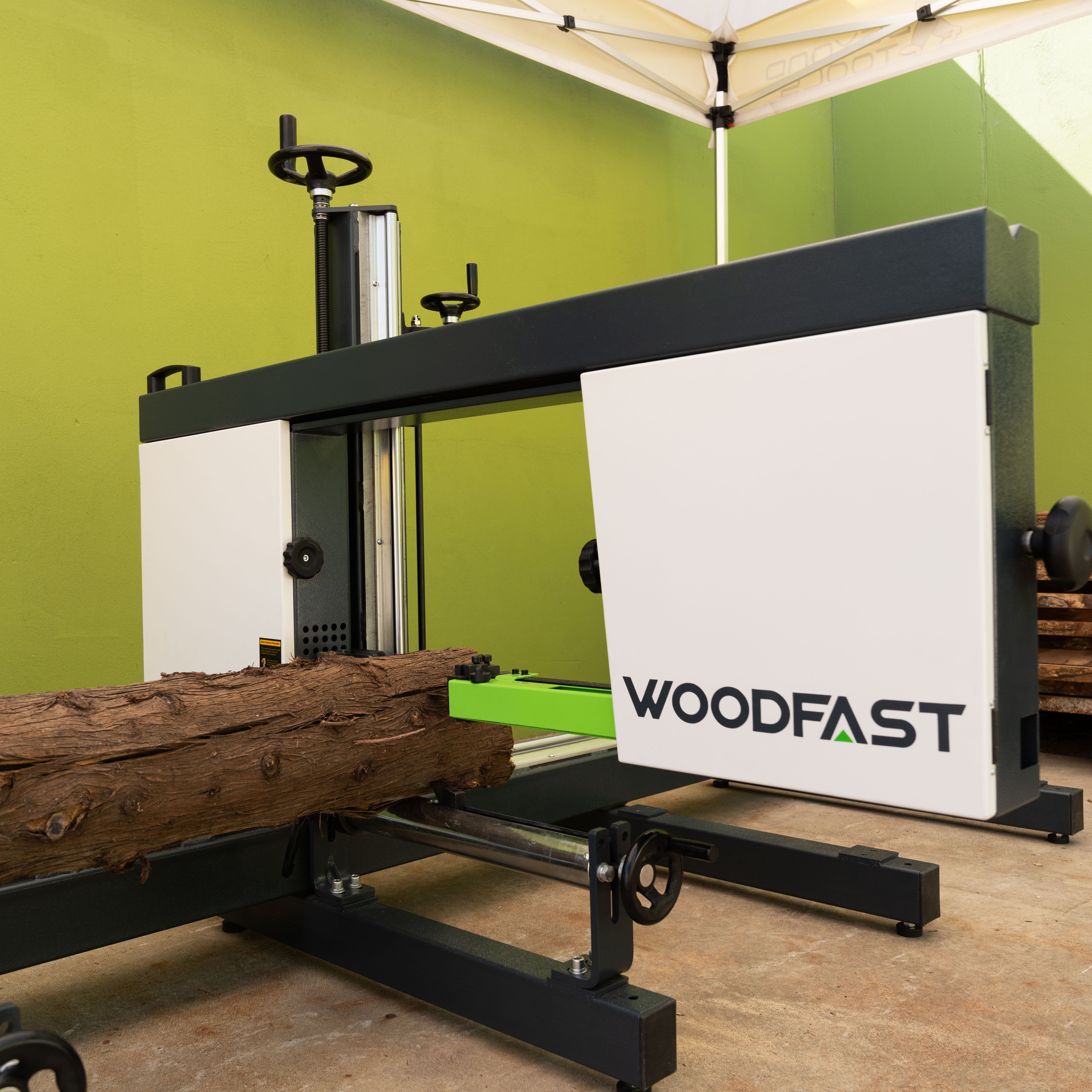

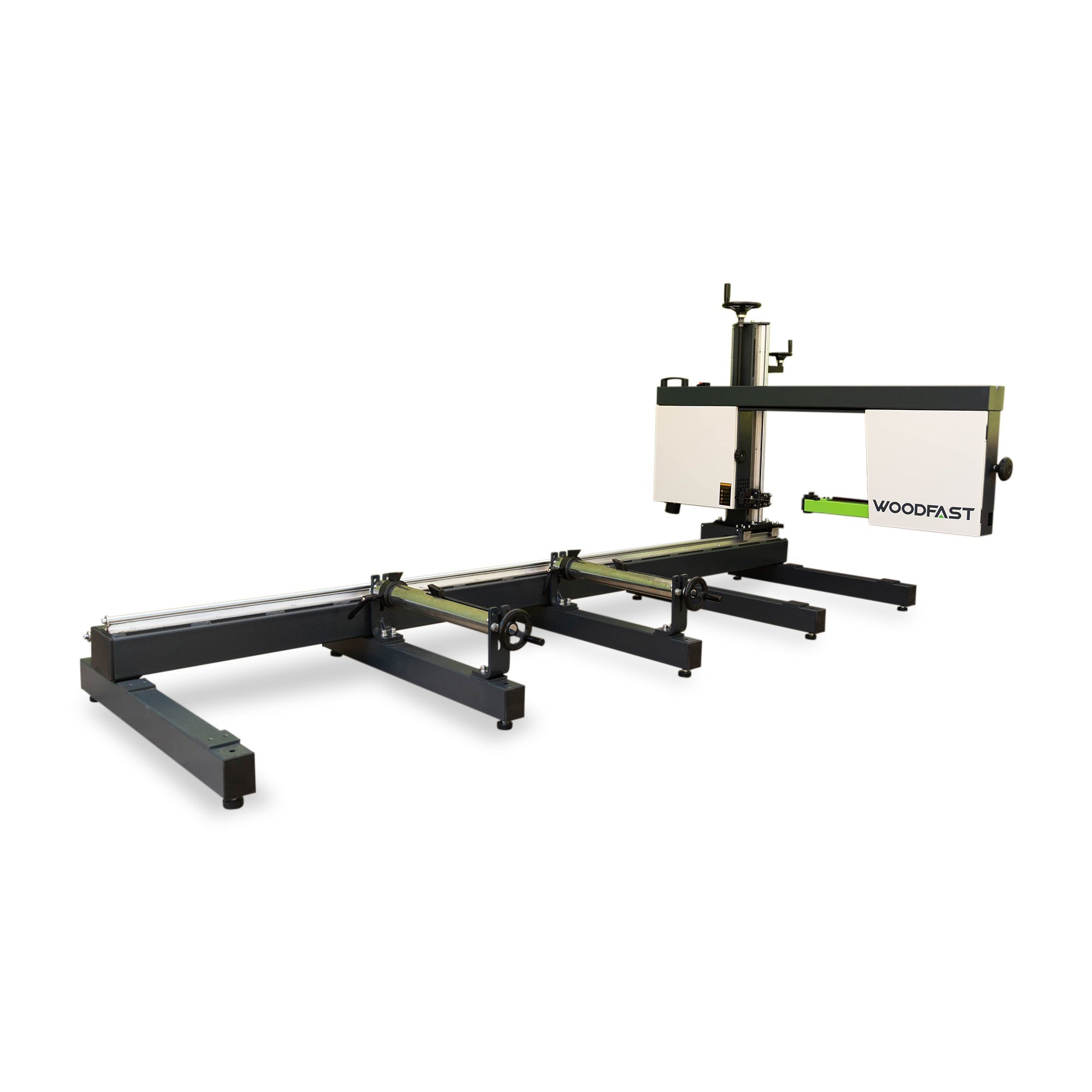

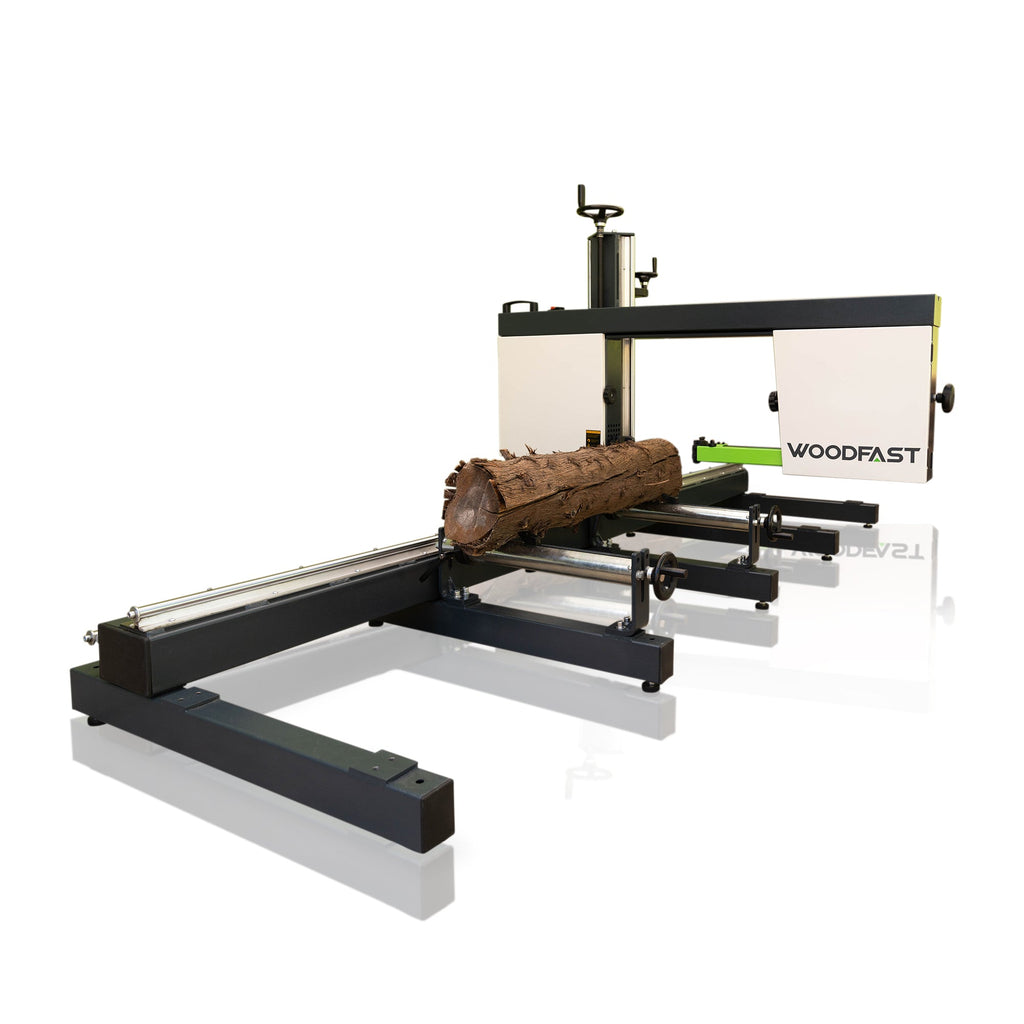

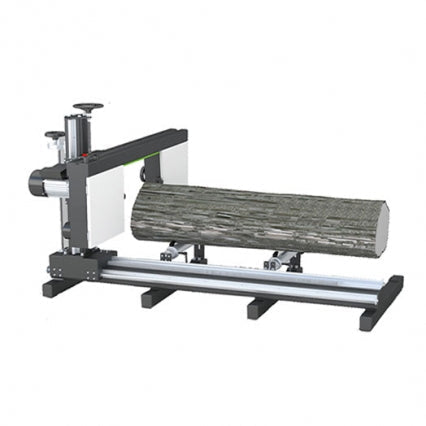

Designed for budget minded customers looking at getting into milling their own lumber at an exceptional price. The HB350B offers hobby sawyers an easy to use, well engineered sawmill with the ability to mill logs up to 40cm in diameter and 2.4m in length.
Features
- Works like a real sawmill, whilst being compact.

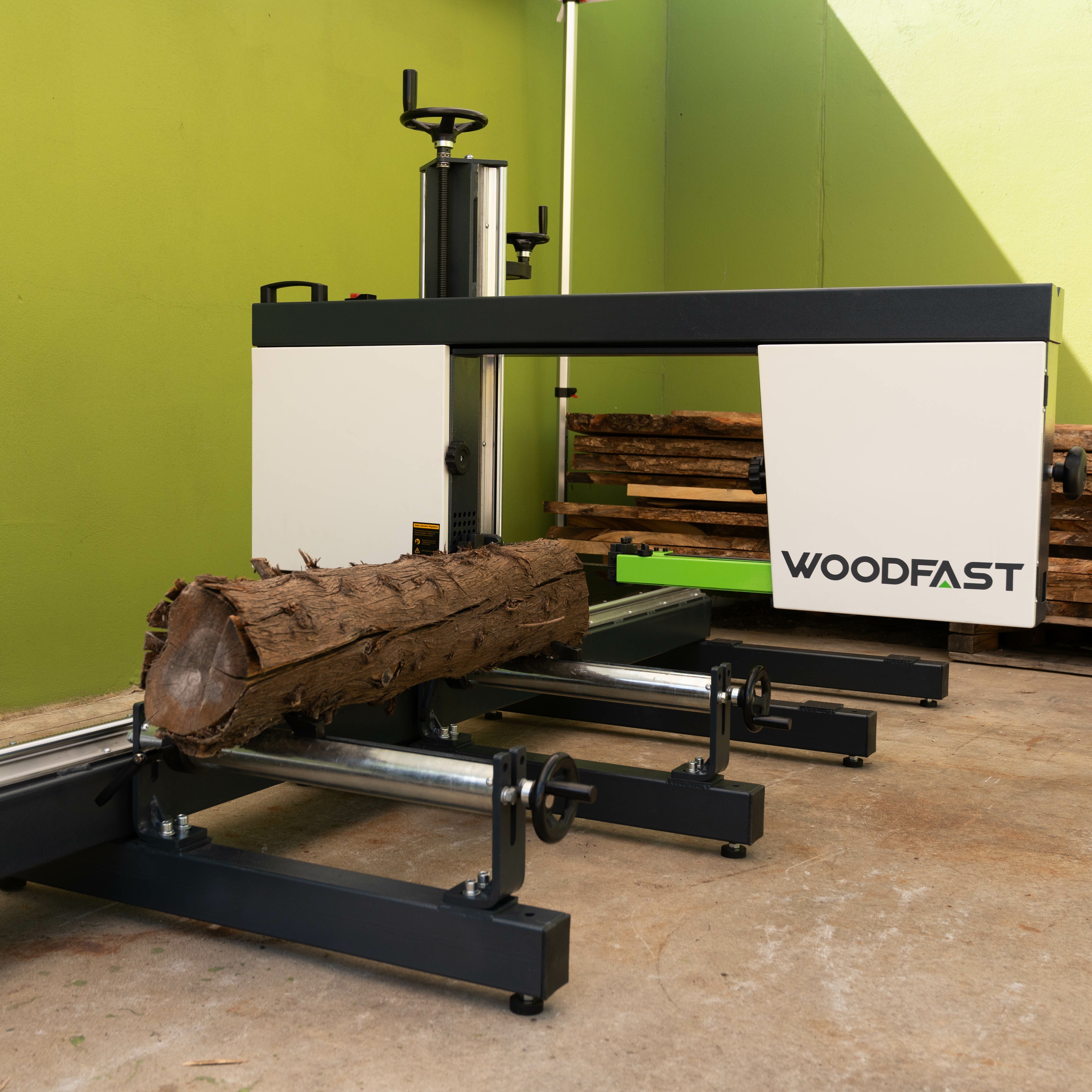

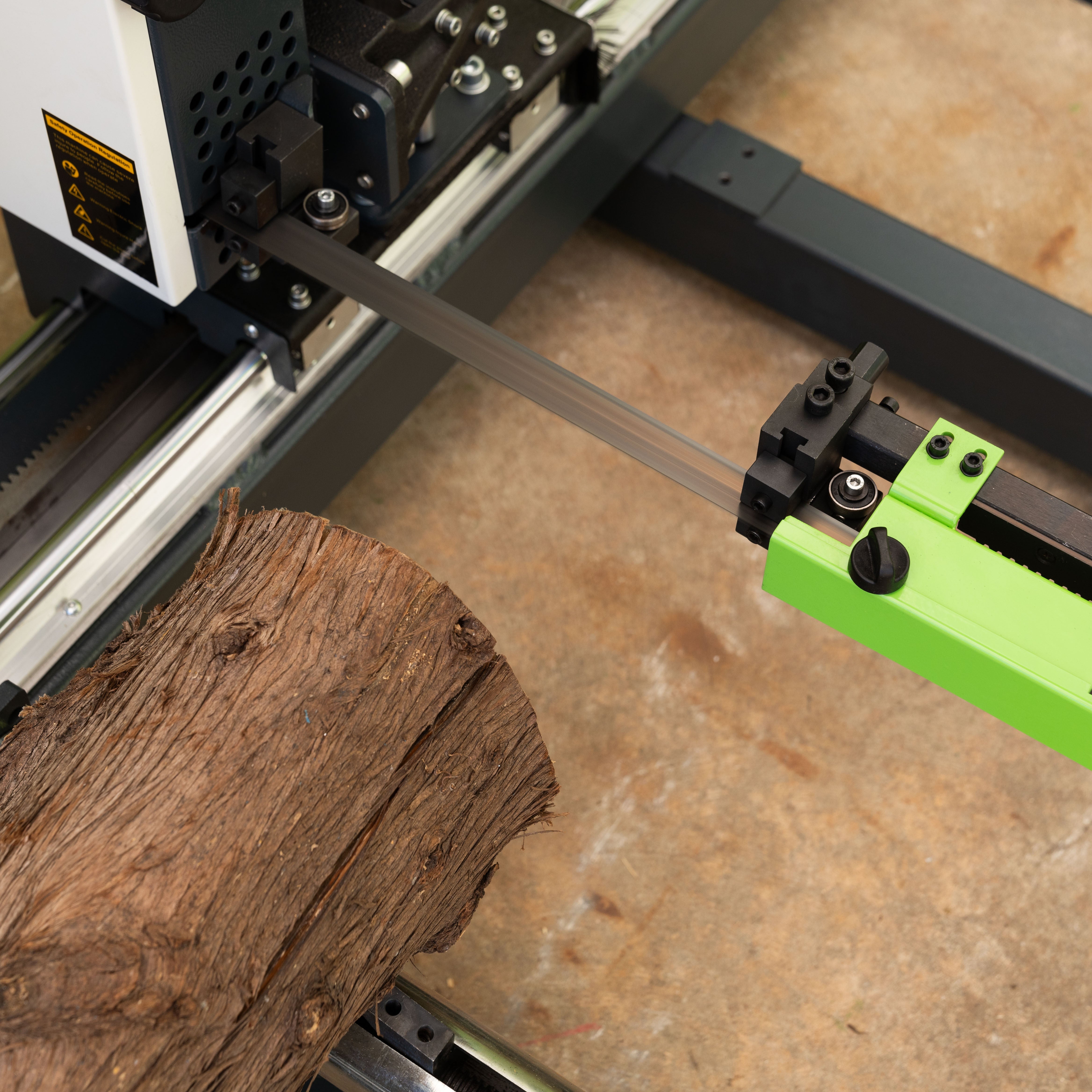

- The log stays stationary whilst the saw head passes along its length, slicing boards at the height you choose.

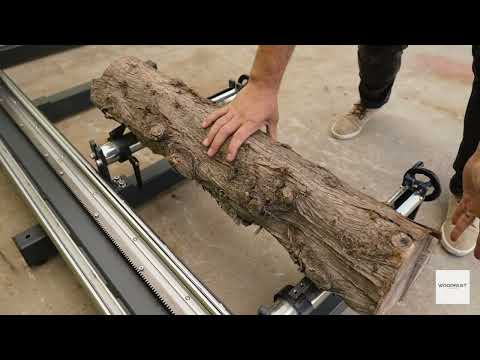

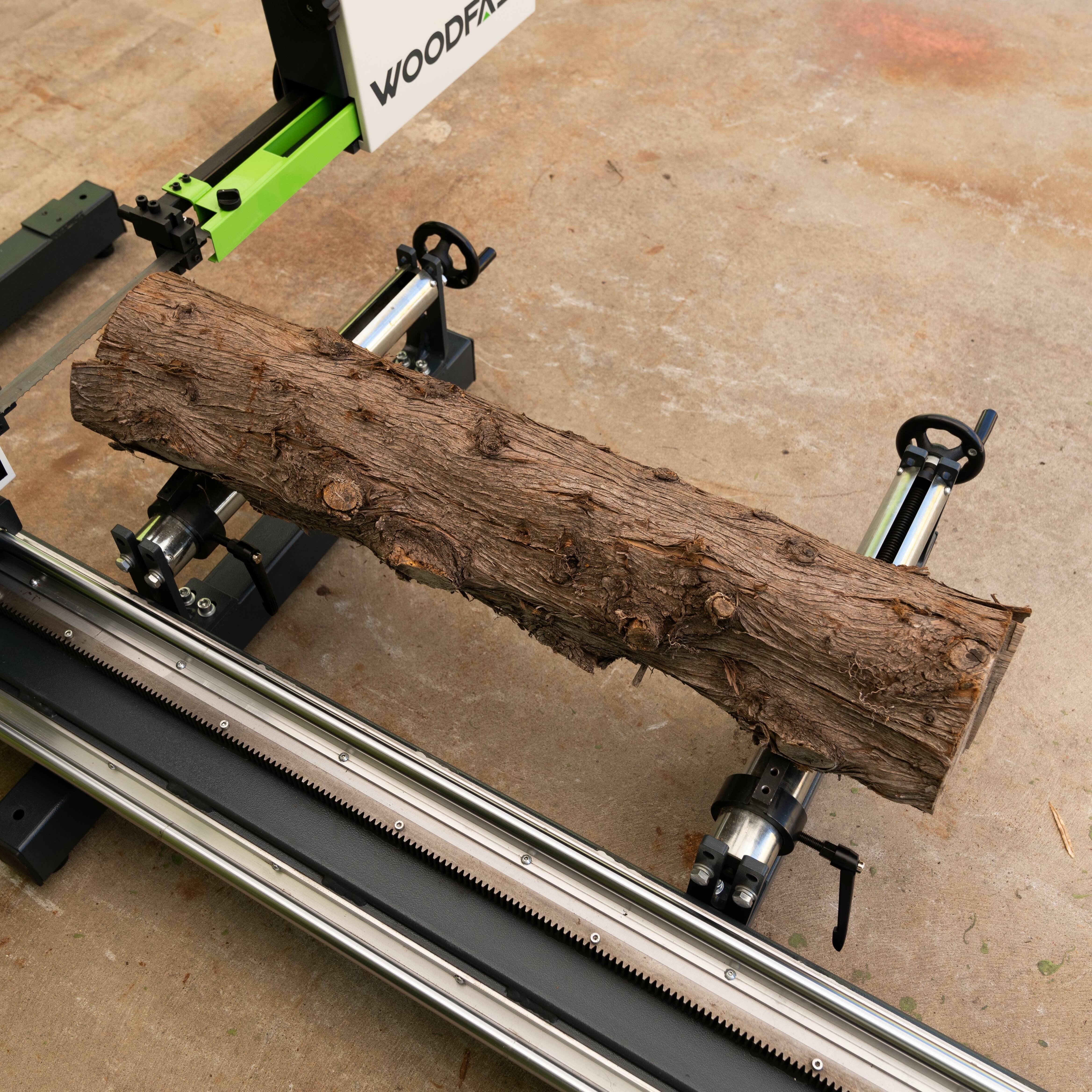

- Log Clamping

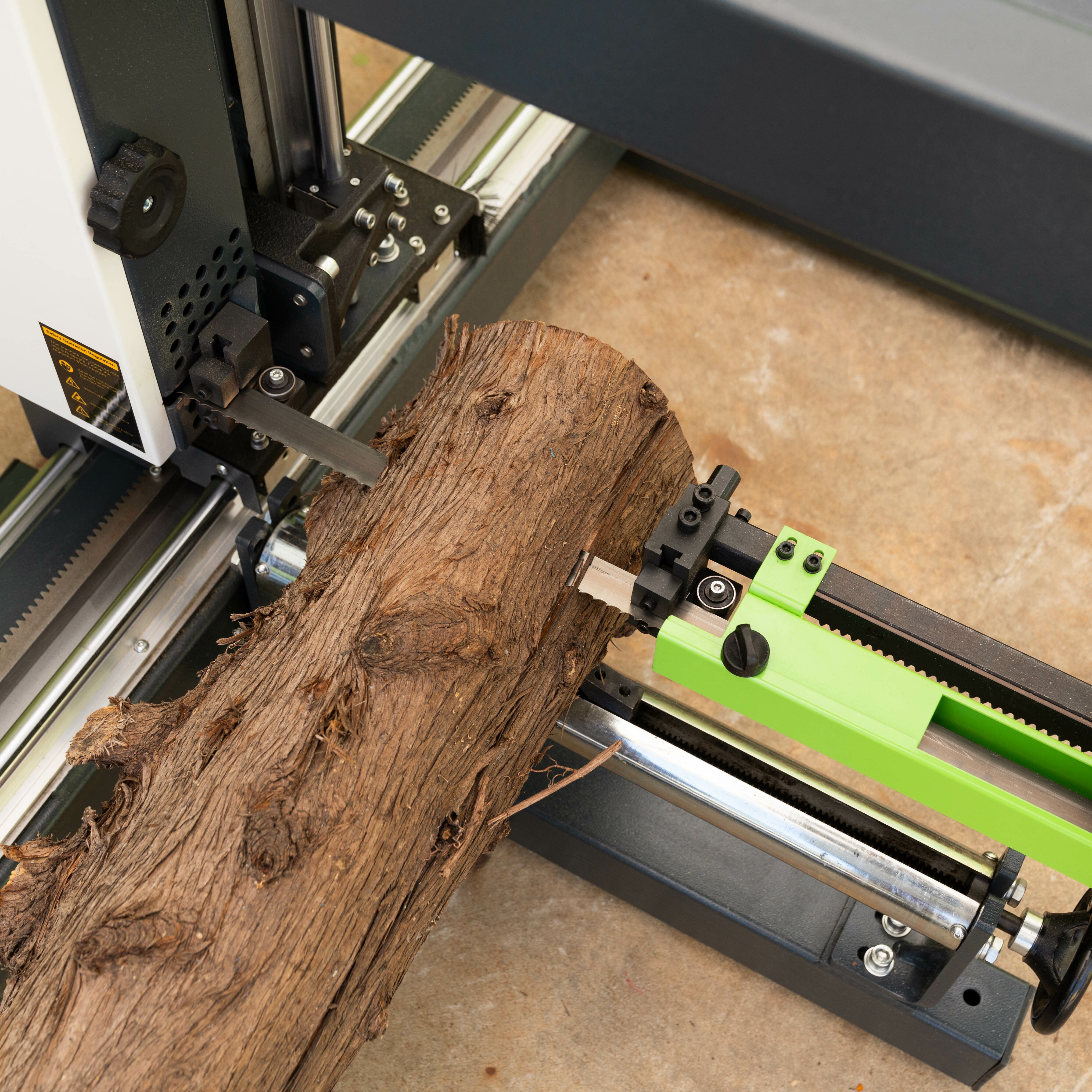

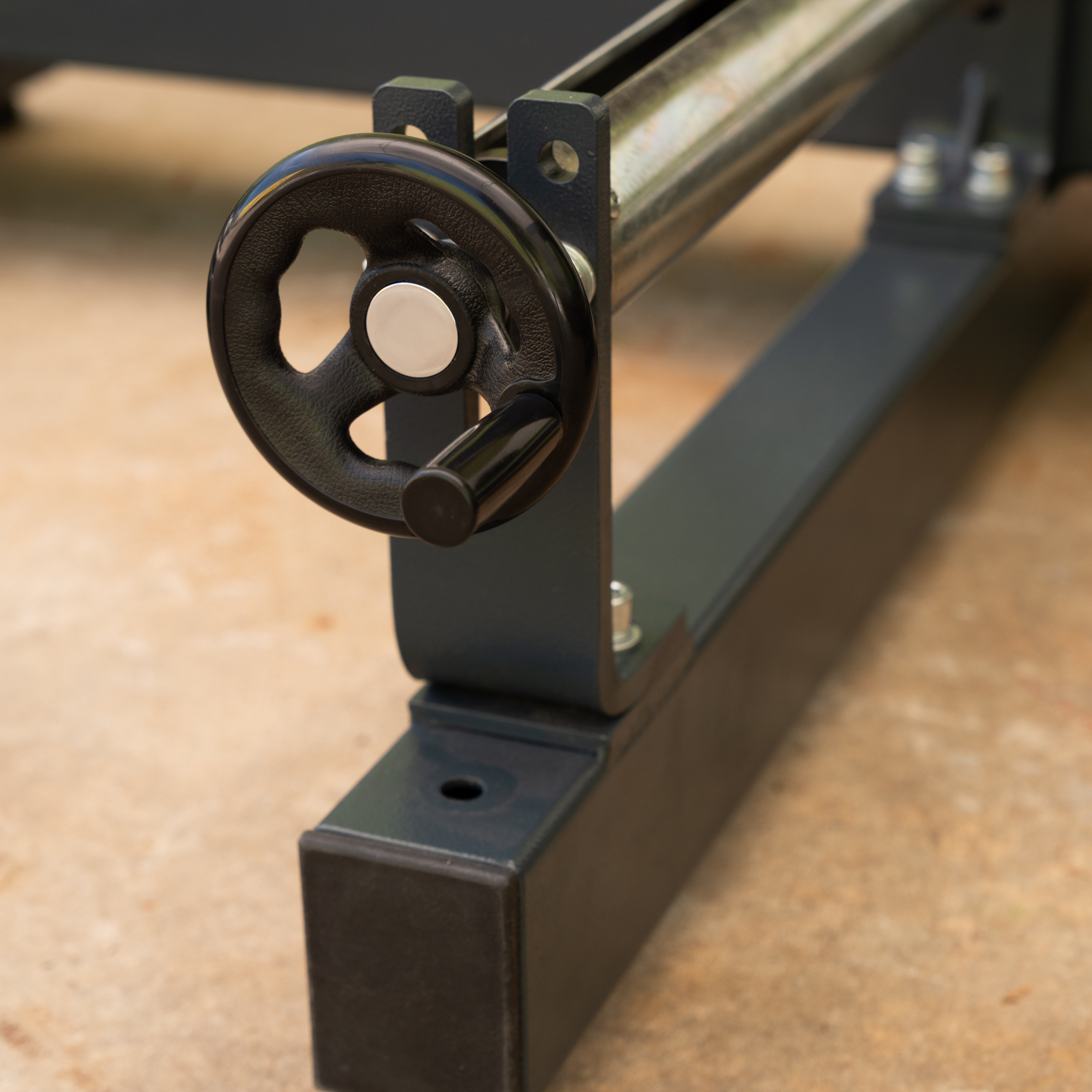

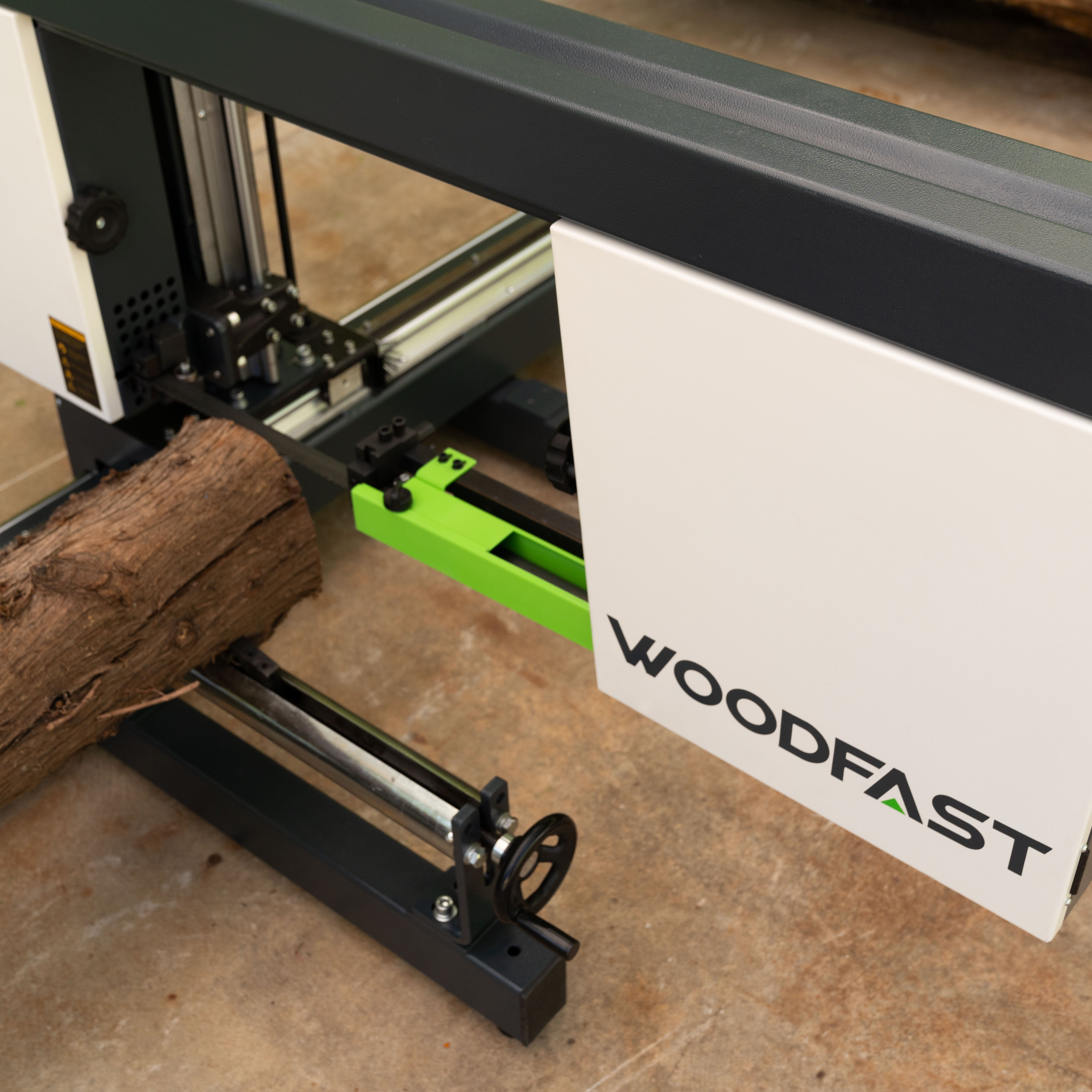

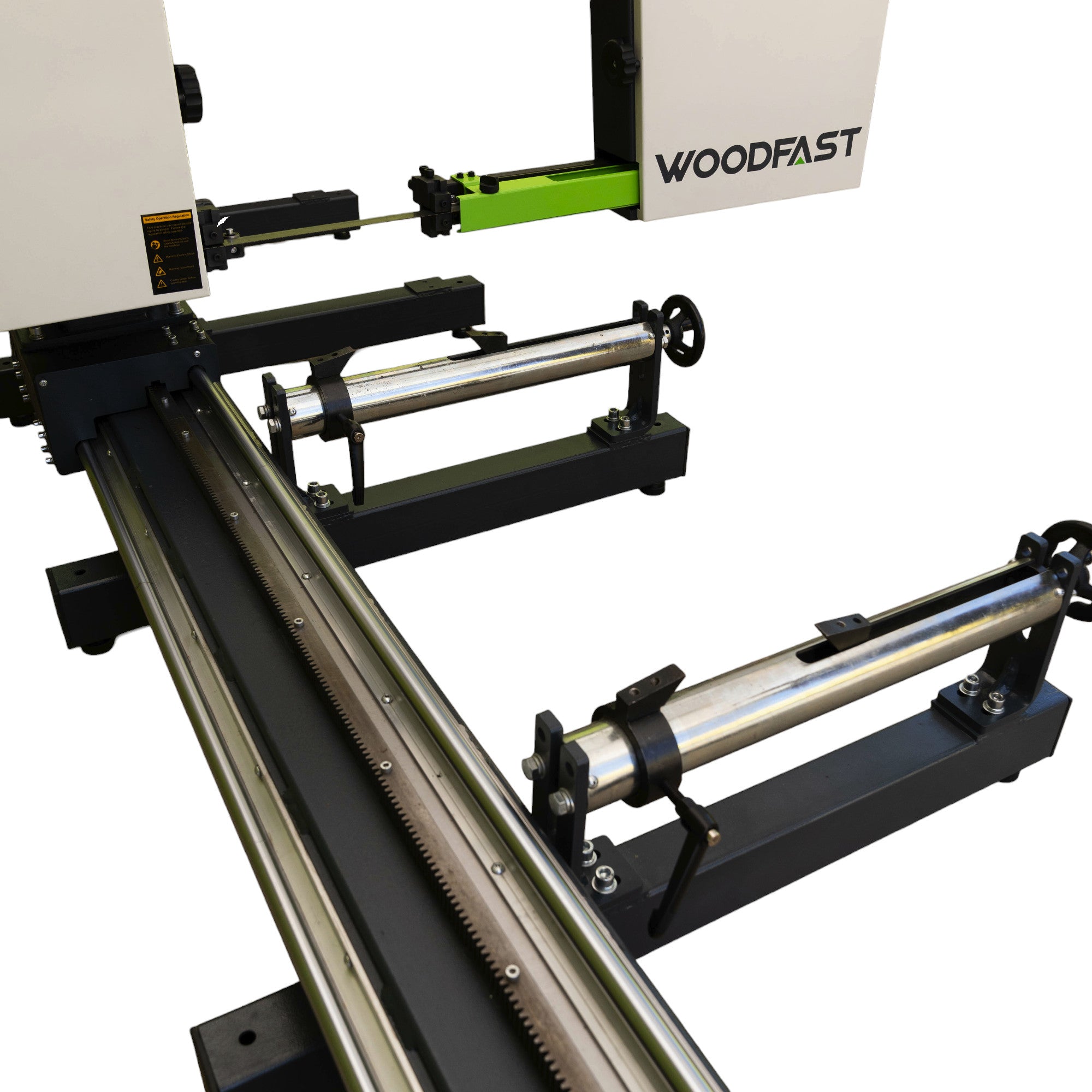

- The mill comes standard with two log rest / log dog assemblies for fast dogging and positive locking. Also features back dogs for easy clamping of beams, cants and boards.
- Smooth Saw head Action

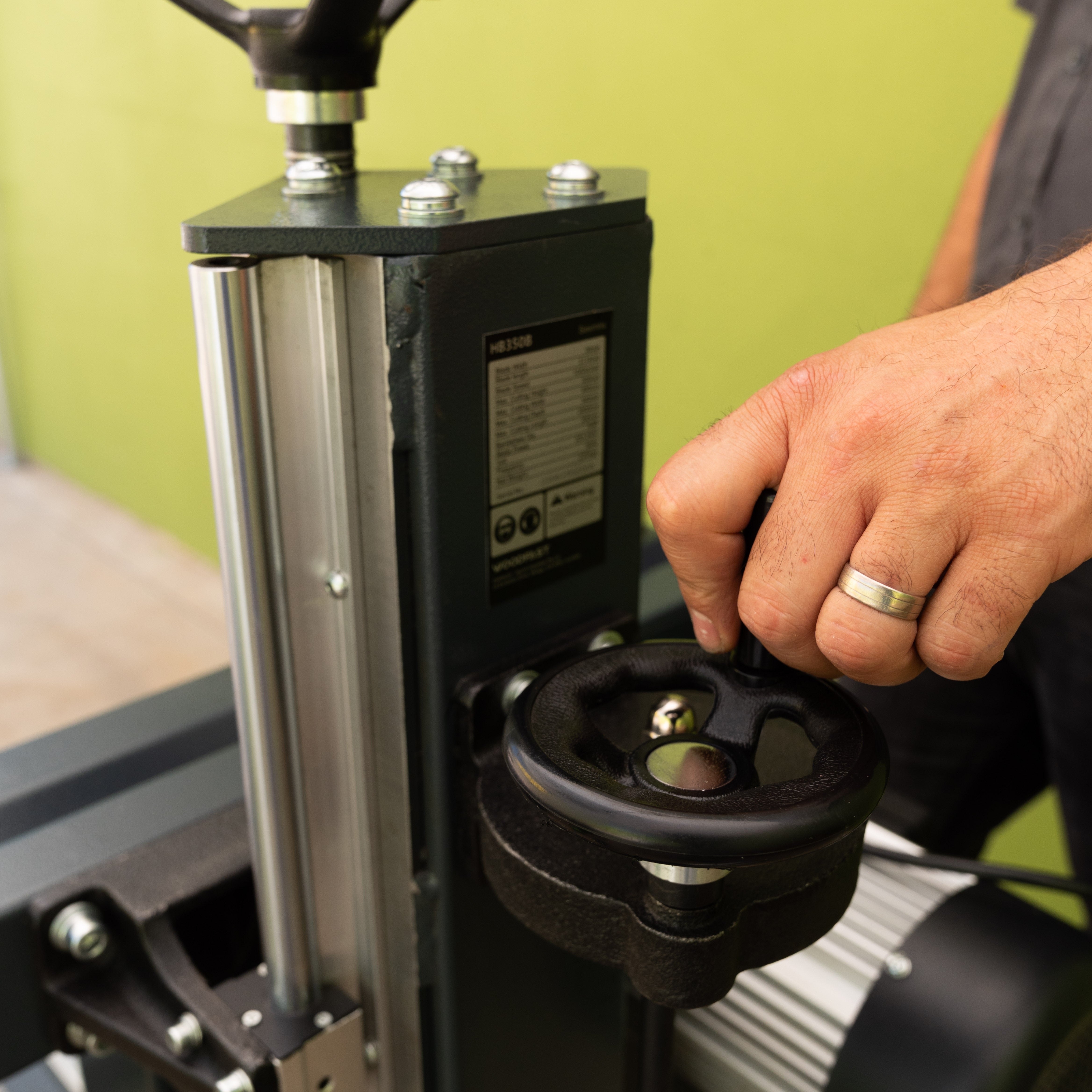

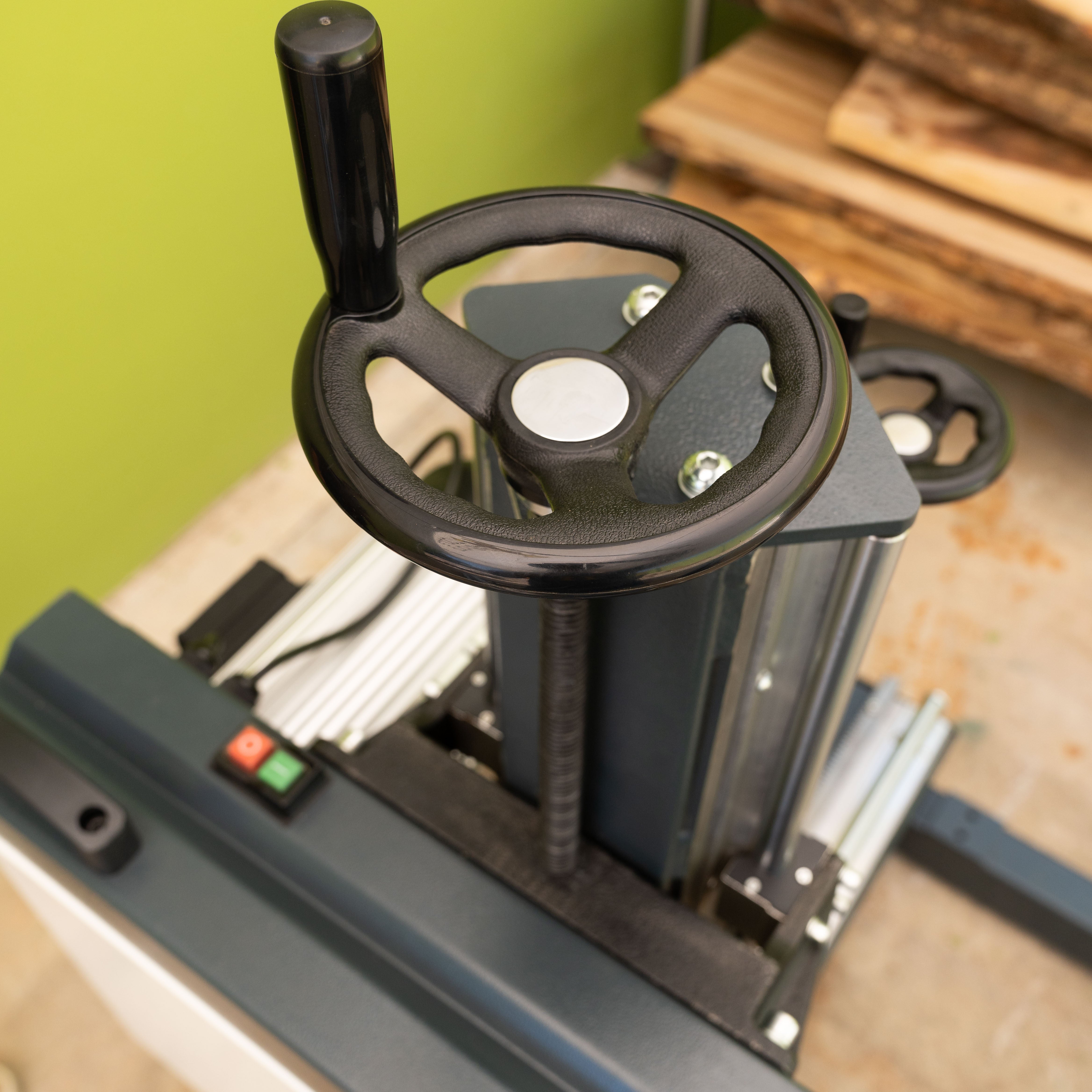

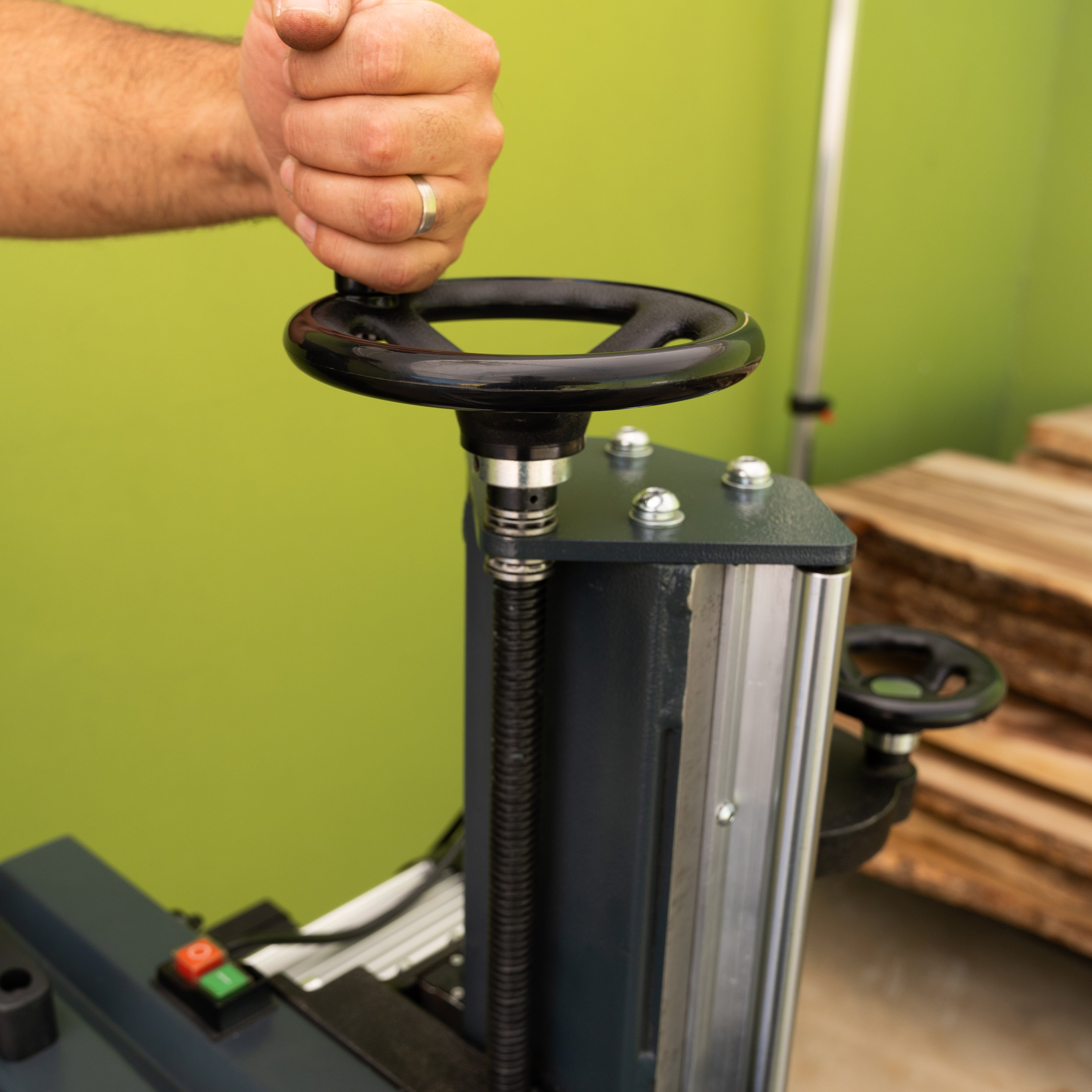

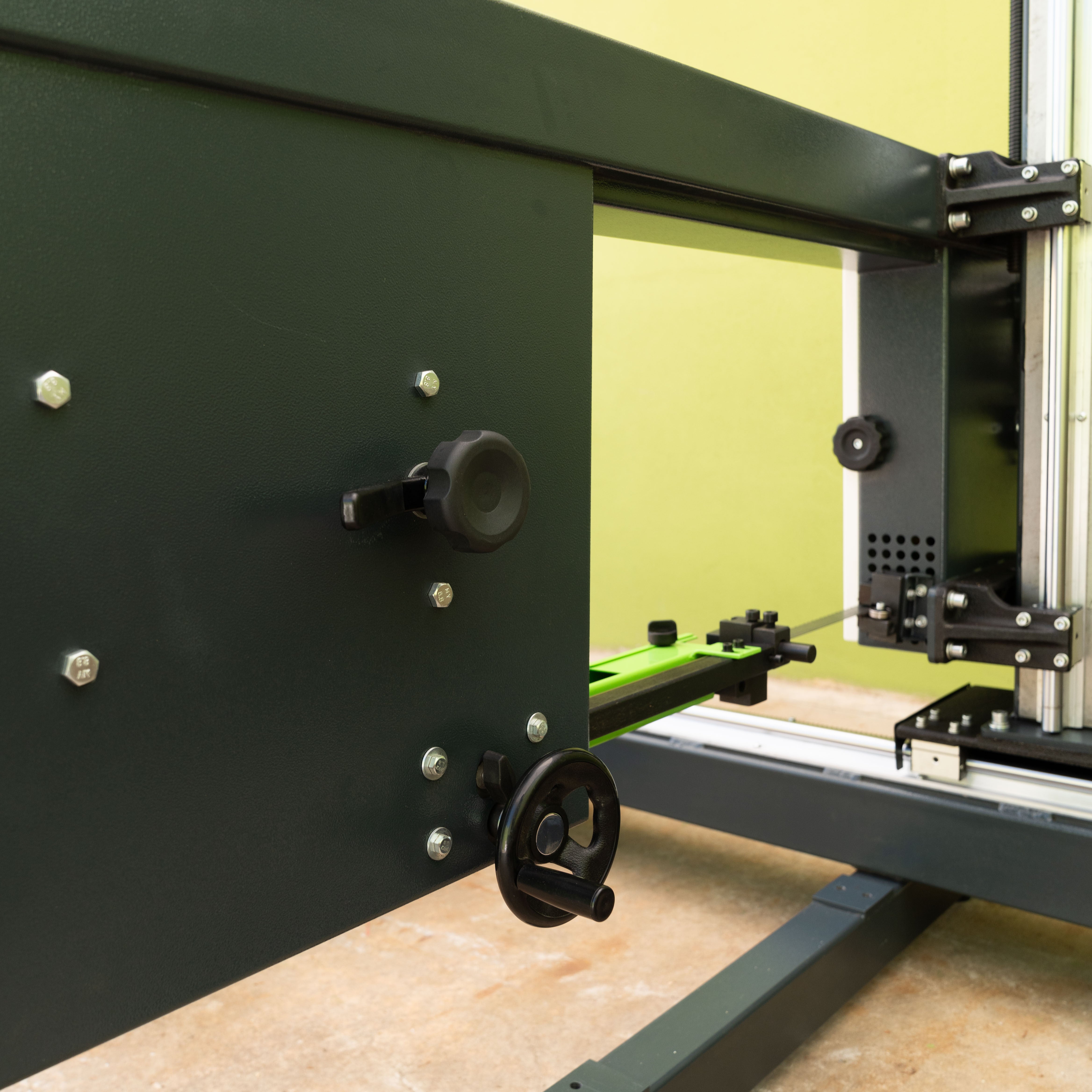

- Smooth operation of the saw head crank handle precisely adjusts the saw head height – clockwise to raise the saw head, counter-clockwise to lower the saw head
- Operator Comfort
- Crank feed wheel for operator comfort and easy control
Additional Information
Model
Type
Sawmill
SKU
8723804
Part Number
HB350B-2.4-3HP(HBS350C)
Barcode
735745530887
Brand
Woodfast
Size
2.4m
Size*
2.4m
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
230-240V 50Hz (Single Phase)

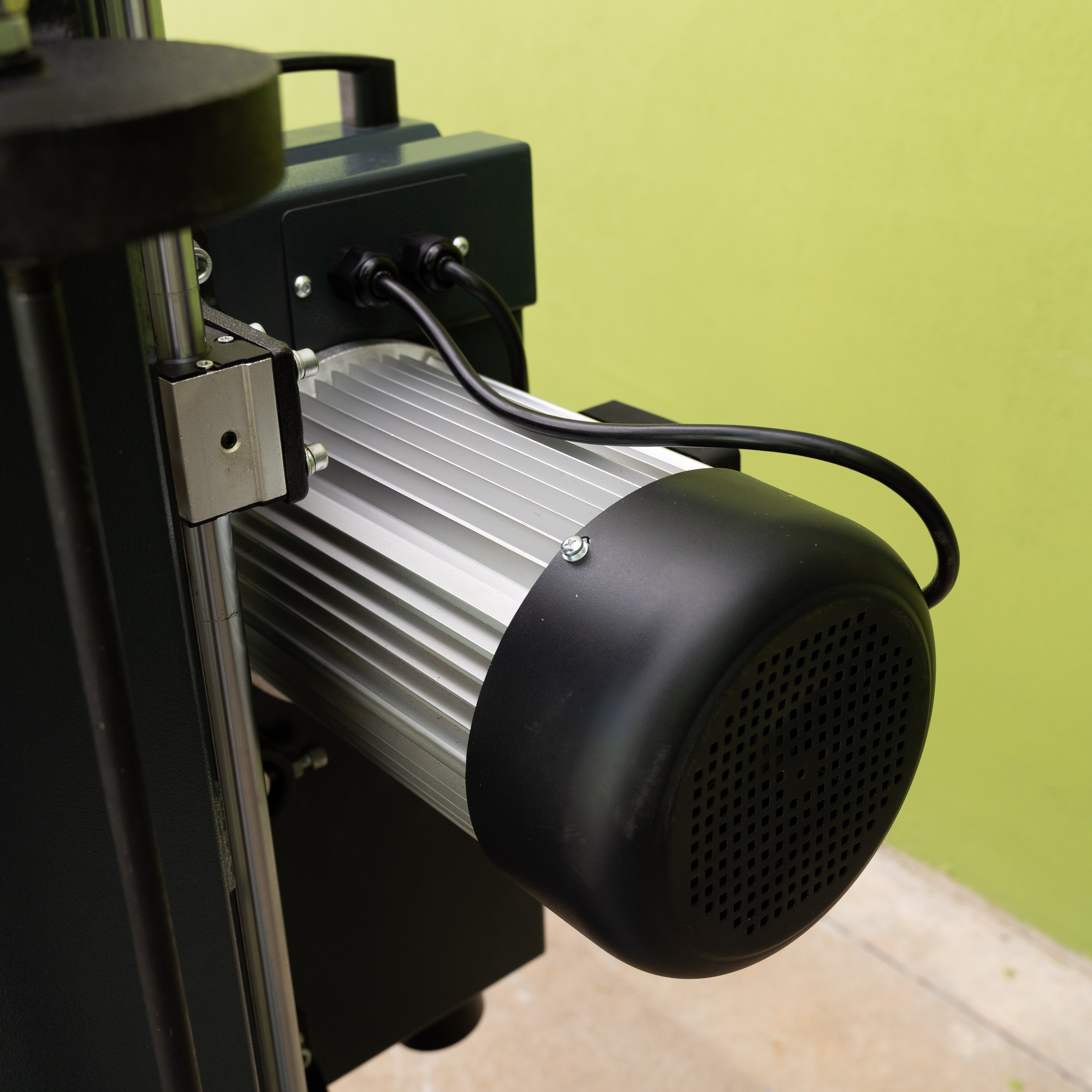

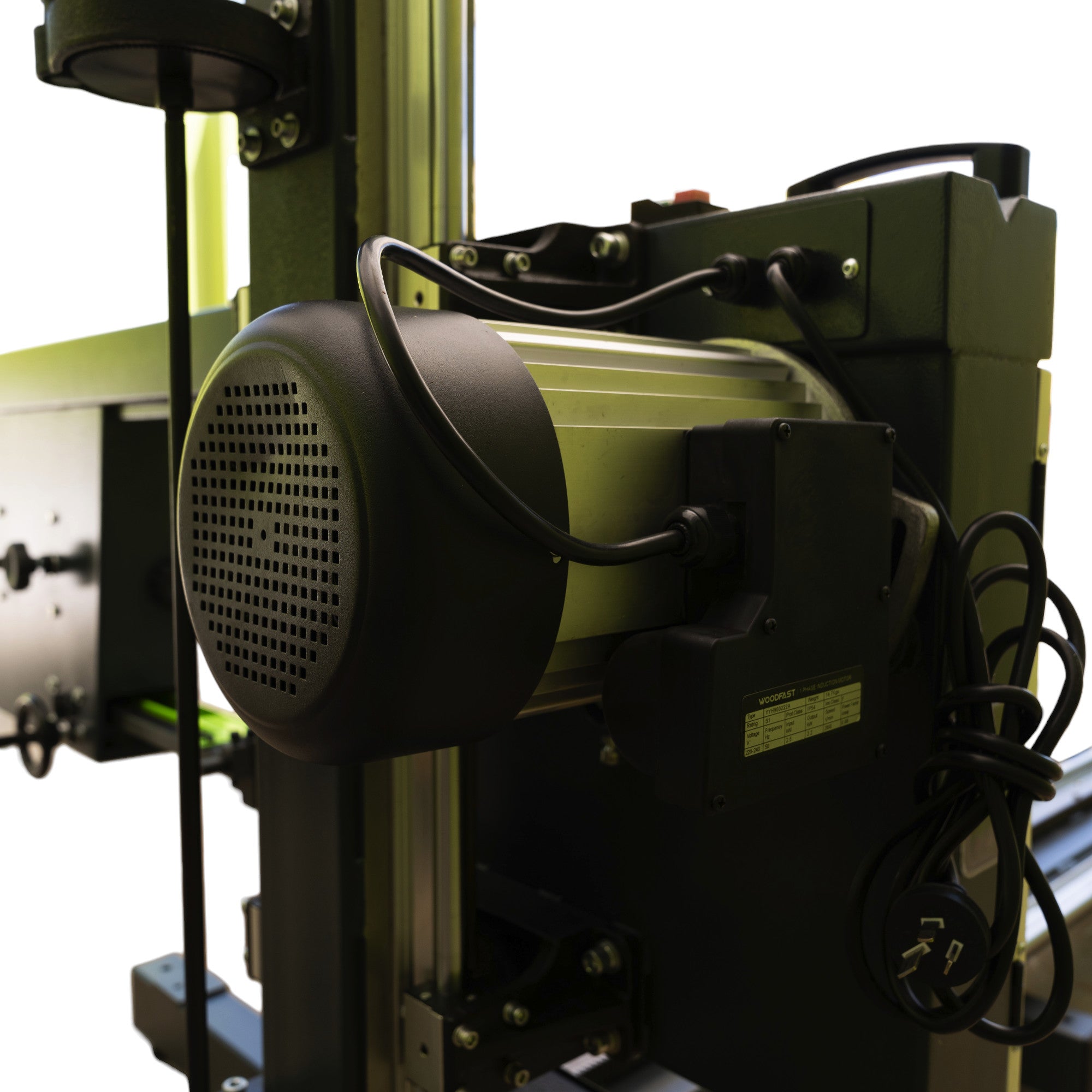

Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)

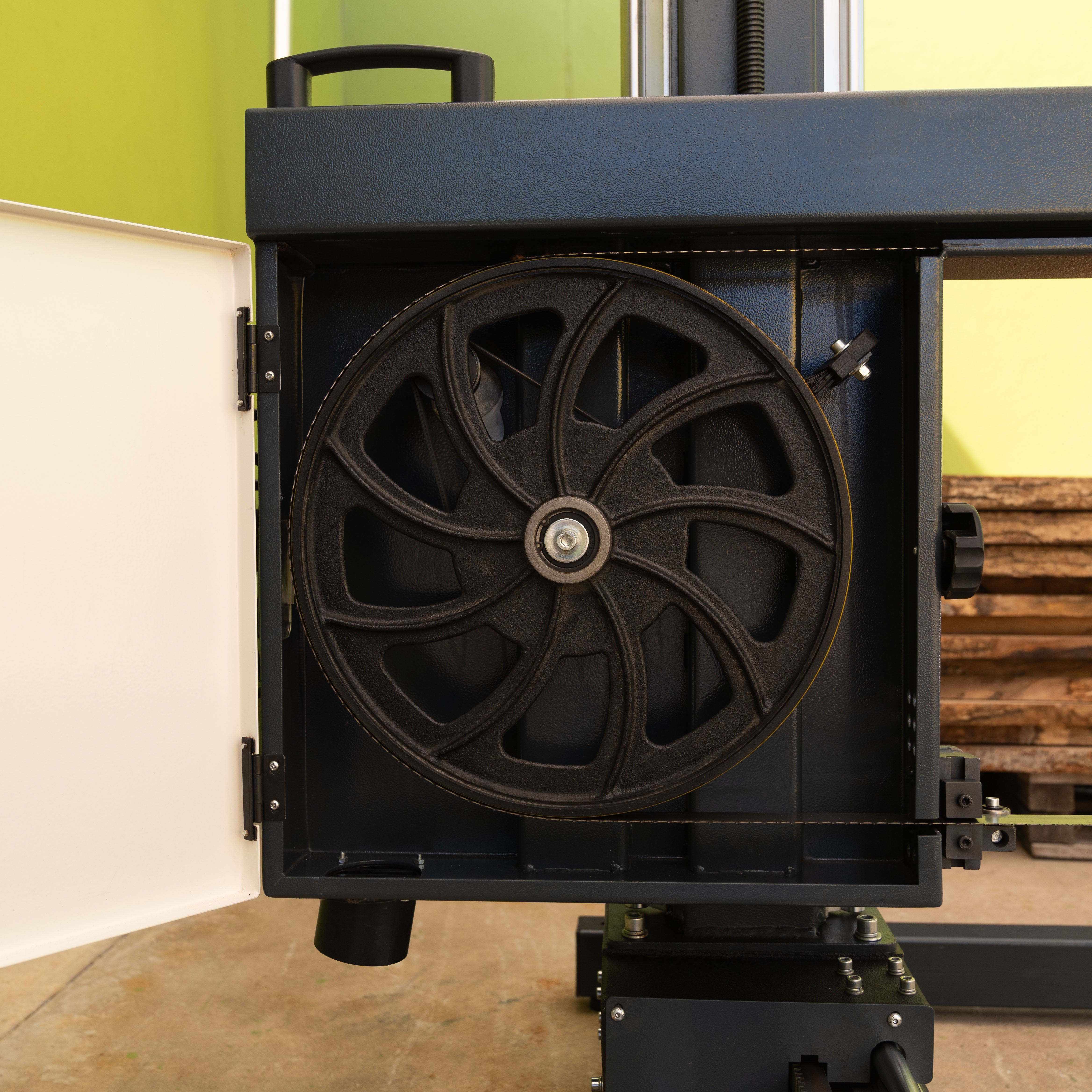

Blade Type
Continuous
Blade Length
3114mm
Blade Width
19-26mm
Cutting Capacity - Height
300mm
Cutting Capacity - Length
1500mm
Cutting Capacity - Width
400mm
Throat Capacity
340mm
Technical - Saw
Blade (Main) - Speed
1040m / min.
Dimensions
Product Length
2400mm
Product Width
1200mm
Country of Origin
Designed, Researched & Developed in
Australia
Features
Standard Inclusions
1 x 3114mm Bandsaw Blade
Workshop (Site) Info
Electrical Connection
15Amp Plug & Lead
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Weight (Gross)
311kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
2
Carton 1 (L X W X H x KG)
Box 1 of 2 (Top) 1480 x 430 x 695mm (NW: 104Kg) (GW: 133Kg)
Carton 2 (L X W X H x KG)
Box 2 of 2 (Base) 2900 x 480 x 325mm (NW: 138Kg) (GW: 178Kg)
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Whats Included
2.4m 3HP Sawmill 240V HB350B by Woodfast
$4,199.00
