Status
Available
Description

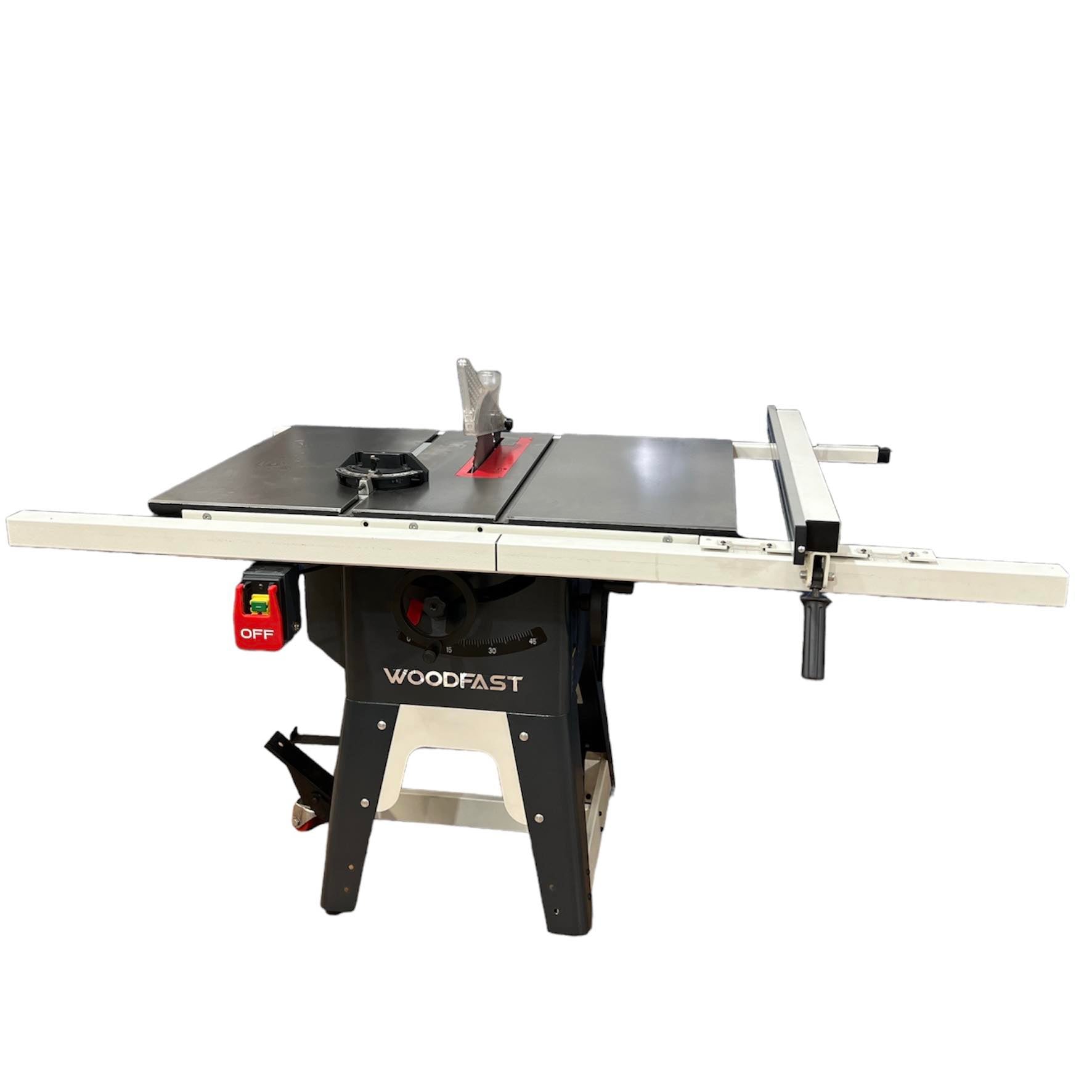

The Woodfast 250mm (10") Table Saw 2HP 240V TS250-CS is a lightweight, reliable tool for any workshop. It's a powerful and precise saw, perfect for DIY projects, woodwork, cabinetry, and more.
Features

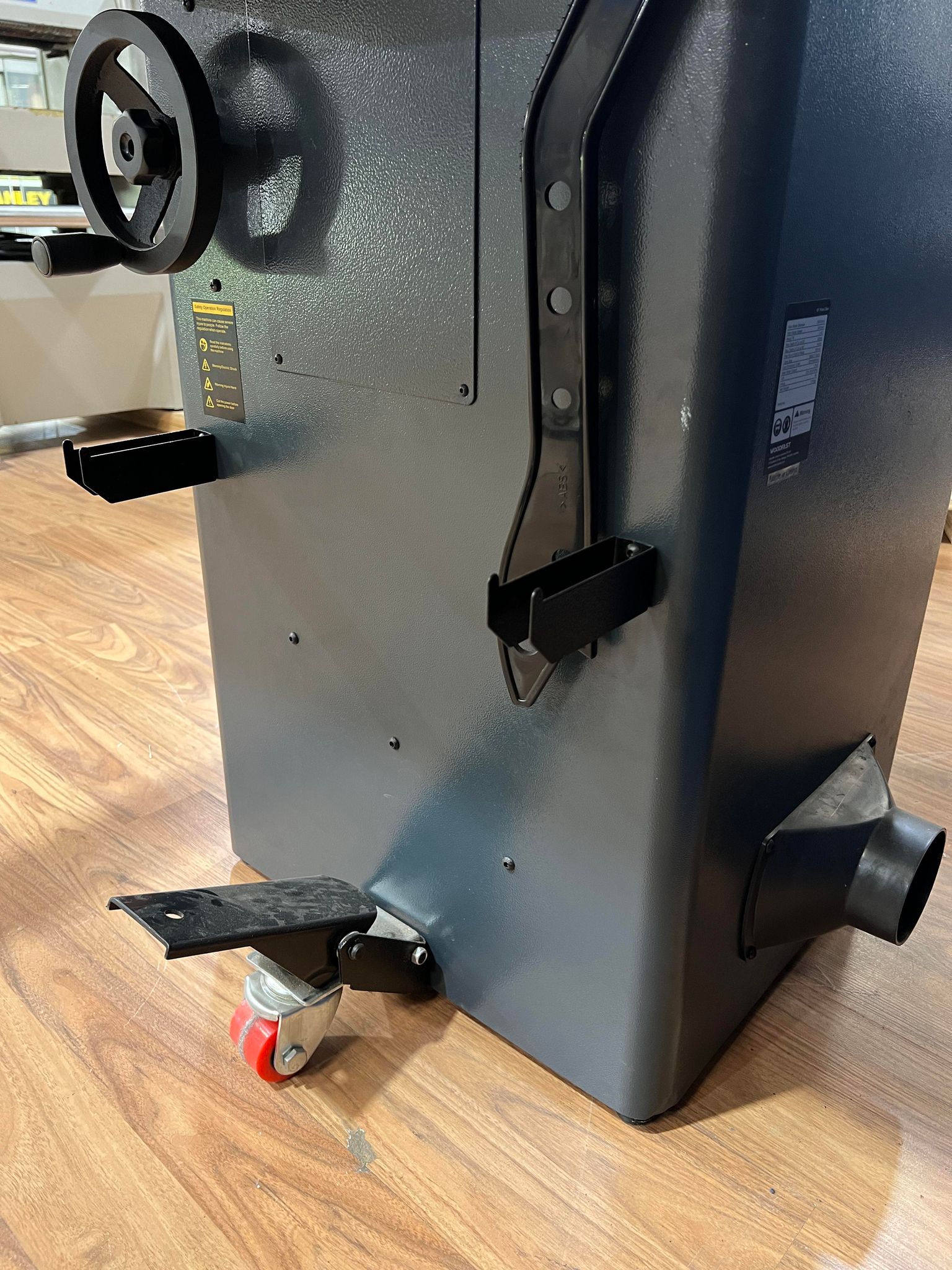

- Closed or Open Cabinet - Select your Preferred Style
- Mobility Wheel Kit

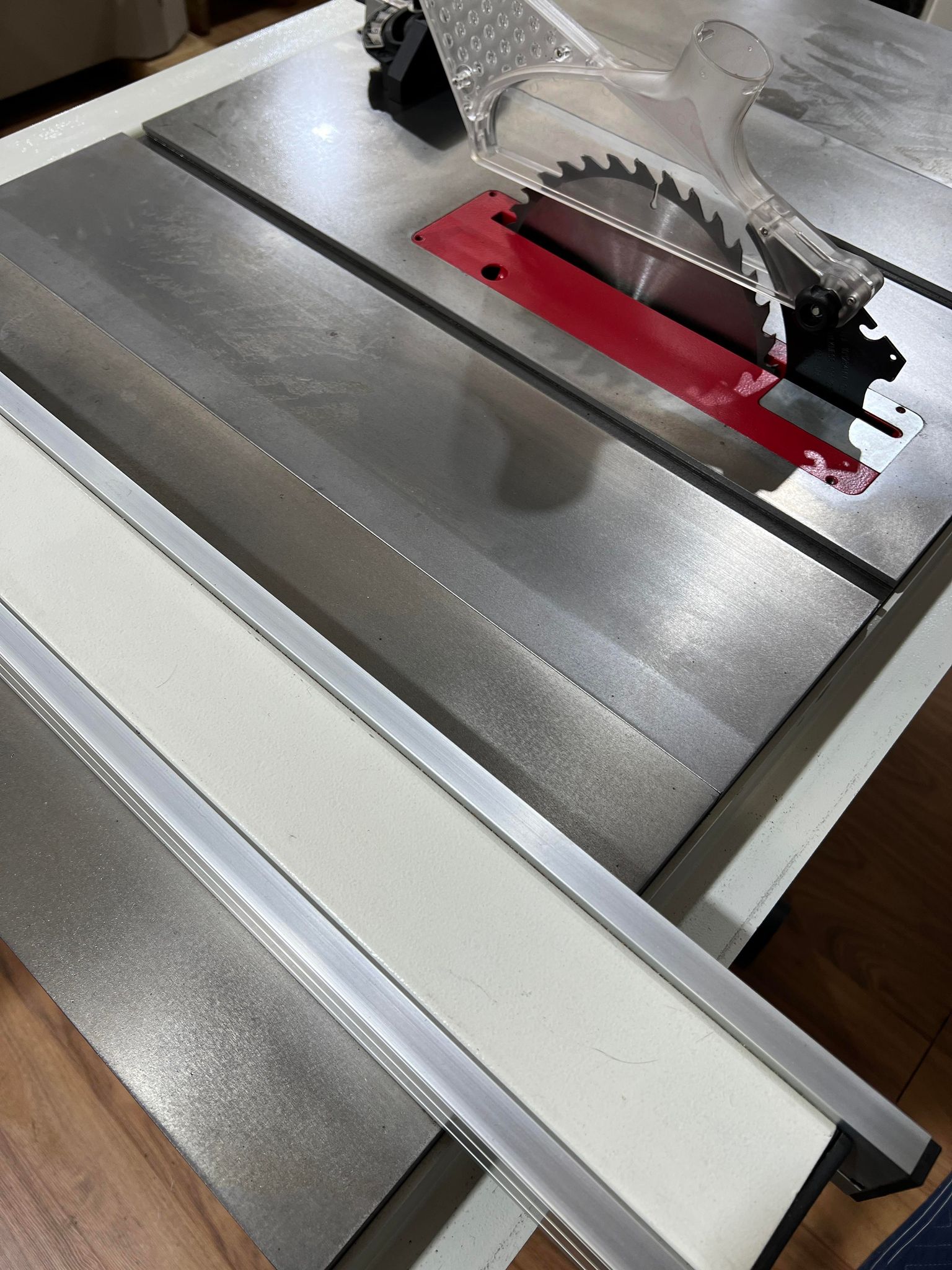

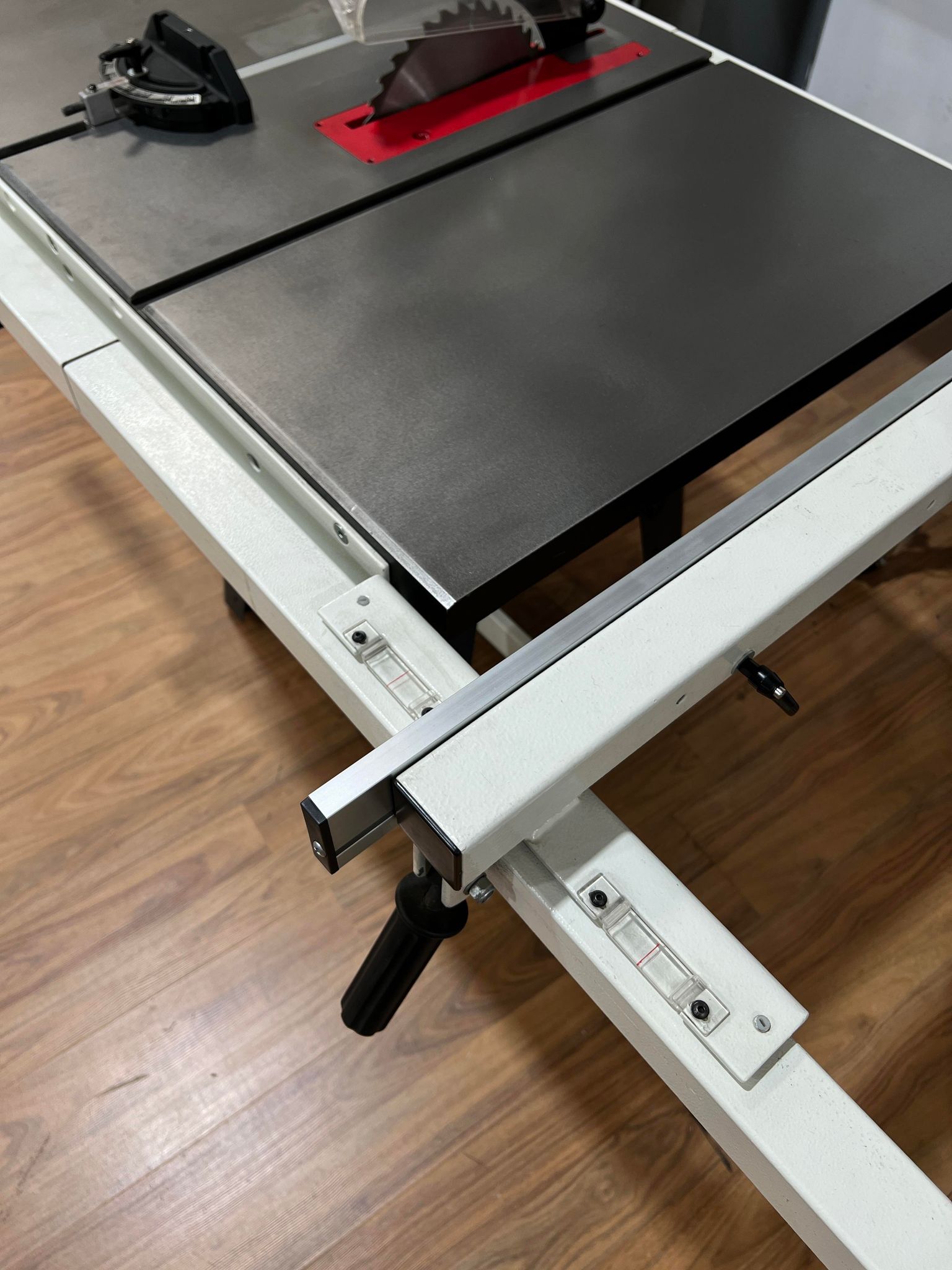

- Cast Iron Table and Extension Wings on both Left and Right Side
- Extension Table: Right Side / Left Side: 685.8 x 269mm
- Main Table Size: 685.8 x 508mm
- Table in Front of Blade: 860mm
- Maximum Dado Width: 30mm
- Maximum Dado Blade Diameter: 203mm
- Max Depth of cut at 90Deg: 80mm
- Max Depth of cut at 45Deg: 54mm
Options
- TS250-CS
- TS250-OS
Additional Information
Model
Type
Table Saw
SKU
8601518
Part Number
TS250-CS
Brand
Woodfast
Size
250mm (10”)
Size*
250mm (10”)
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
2HP / 1500W
Cutting Capacity - Height
80mm
Technical - Saw
Rip Capacity
Rip Capacity
Rip capacity refers to the distance between a table saw's blade and its fully extended rip fence.
762mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
254mm
Blade (Main) - Speed
3400RPM

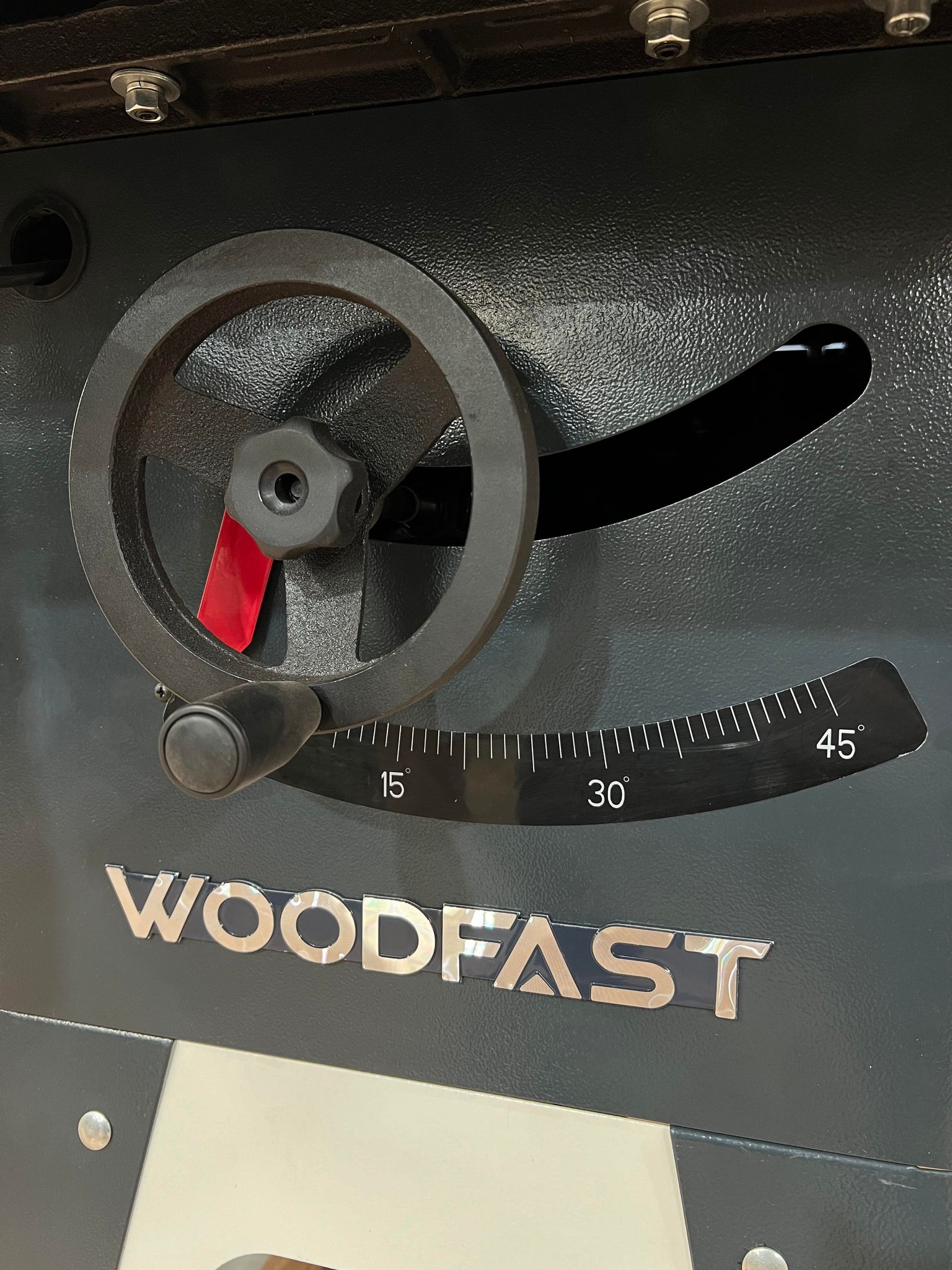

Blade Tilt
90° to 45°
Dimensions
Product Length
1046mm
Product Width
685mm
Product Height
870mm
Features
Induction Motor
Induction Motor
This motor operates using electromagnetic induction, which allows it to generate consistent torque and speed without the need for brushes or commutators, resulting in lower maintenance and increased durability. With its robust design, the induction motor delivers reliable power, ensuring smooth operation even under heavy loads.
Push Stick Included
Workshop (Site) Info
Electrical Connection
10Amp Plug & Lead
Packaging + Shipping
Shipping Length
990mm
Shipping Width
760mm
Shipping Height
1030mm
Shipping Weight (Gross)
184kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Whats Included
250mm (10") Table Saw 2HP 240V TS250-CS by Woodfast
$2,599.00
