Type
Bandsaw
SKU
1041085
Part Number
BS350D-N
Part Number
BS350D-N
Brand
Woodfast
Size
350mm (14")
Status
Available
Description

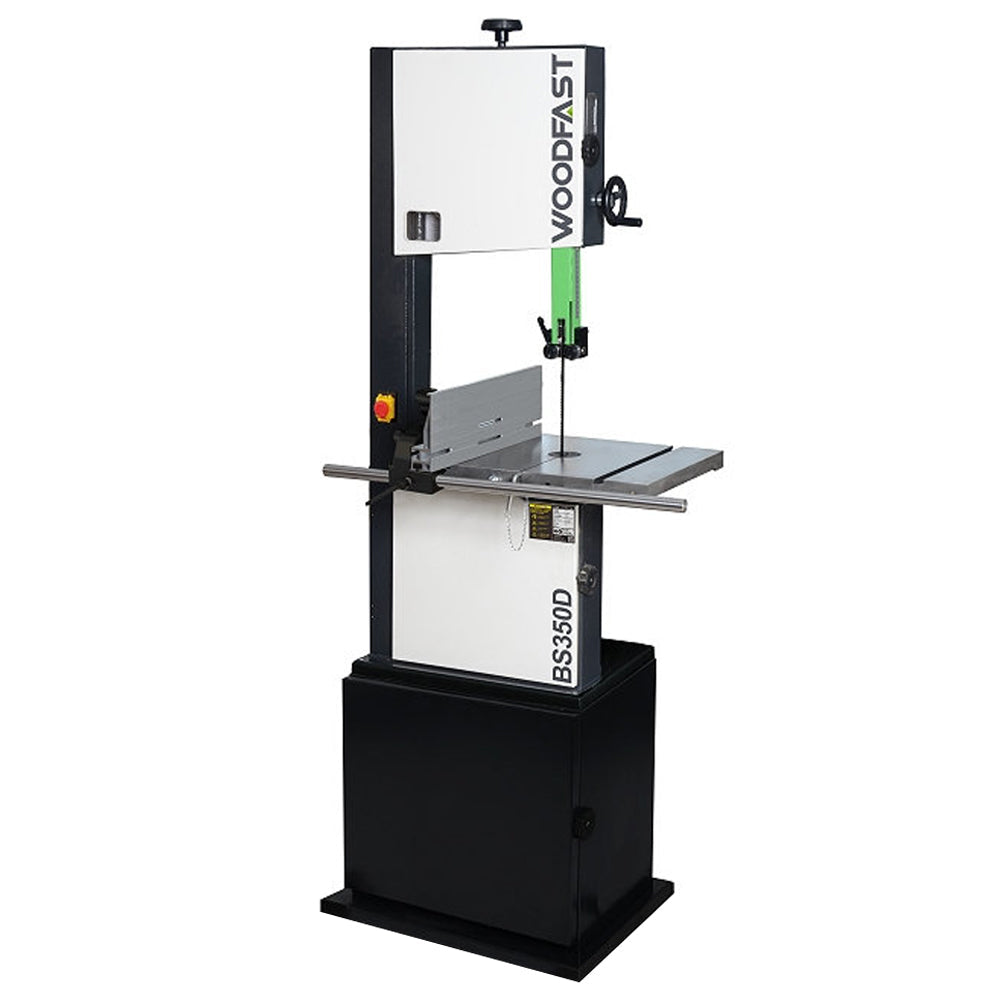

The BS350D bandsaw features several unique innovations that promise enhanced accuracy and ease of use. It is more effective, accurate and easier to use than any other machine in its own class. Featuring a 2HP motor coupled with well balanced bandwheels it will easily handle anything thrown at it.
The two speeds which are slightly faster than comparable machines make it ideal for non-ferrous metals as well as wood. The 150mm tall fence that can be easily rotated flat for thinner stock, along with the double-sided fence mount make this machine easy to setup leaving you free to concentrate on the project at hand.
Features

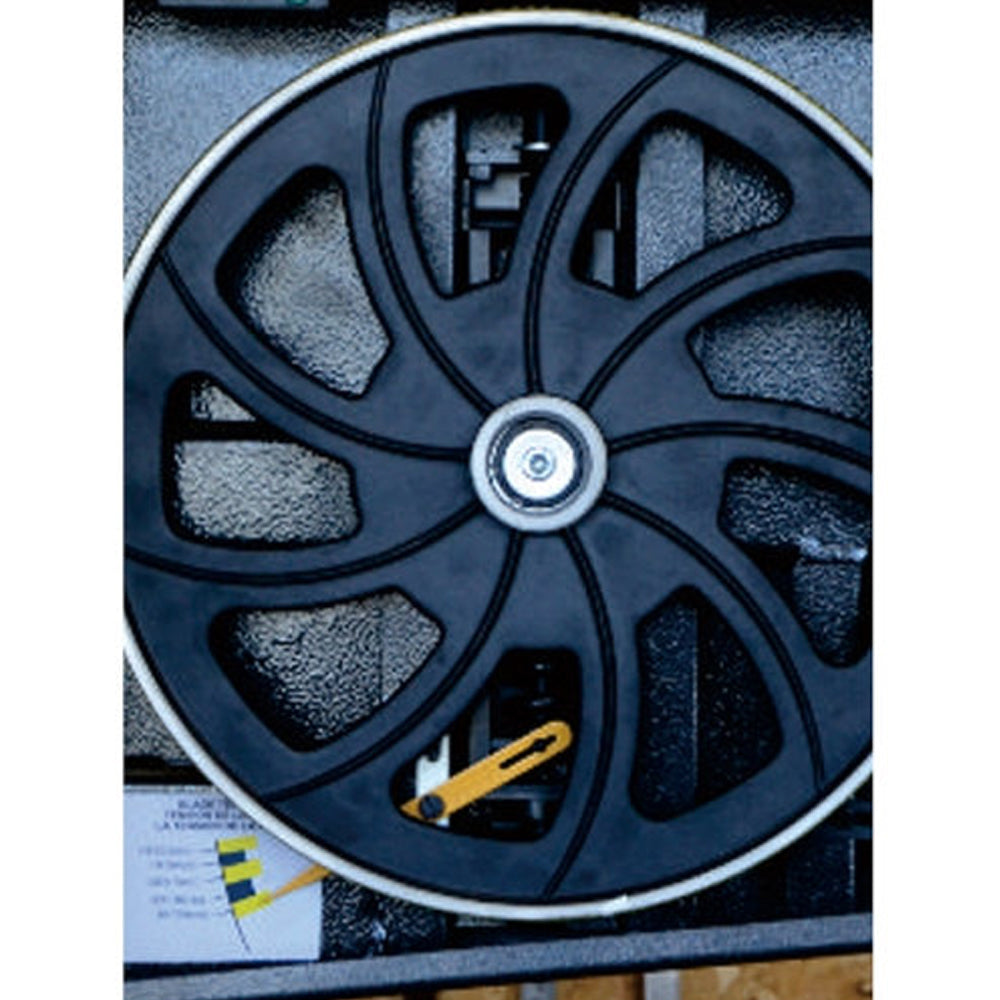

- Dynamically balanced and heavy cast bandwheels provide a flywheel effect during use contributing to the power and effectiveness of the machine.

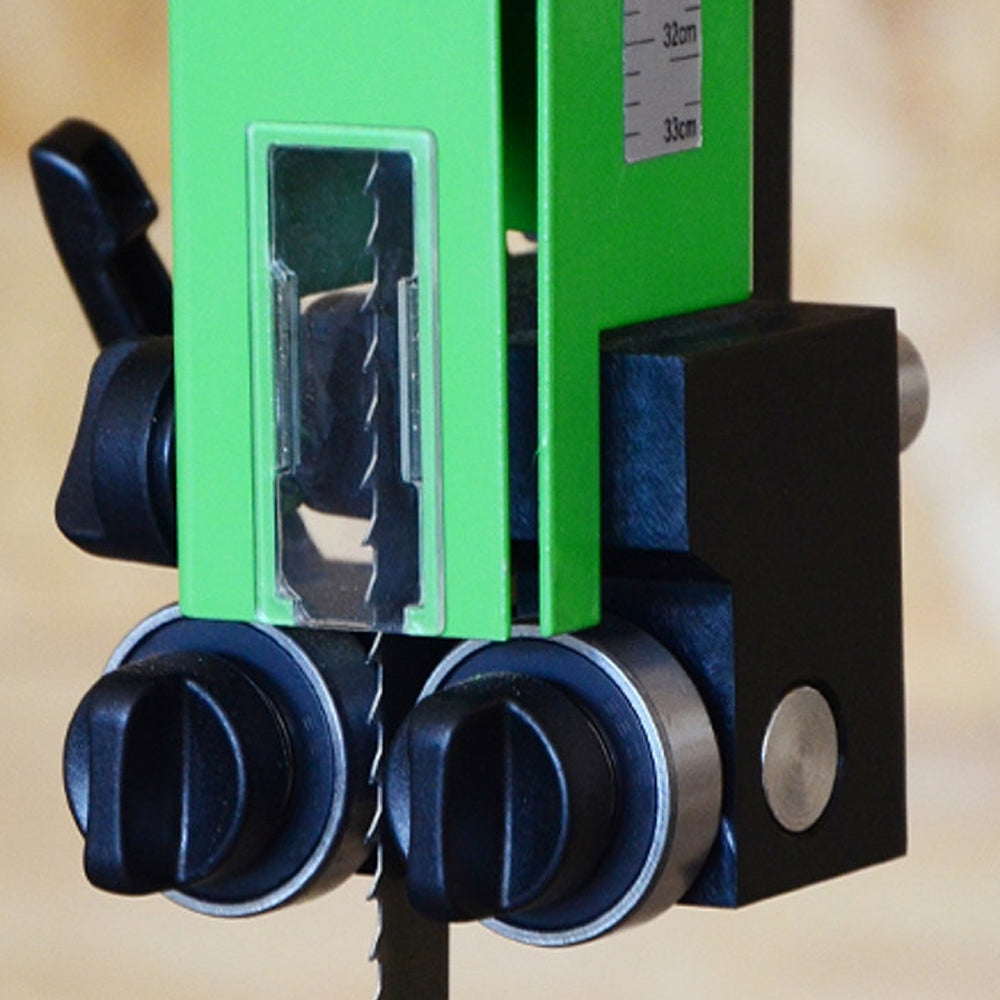

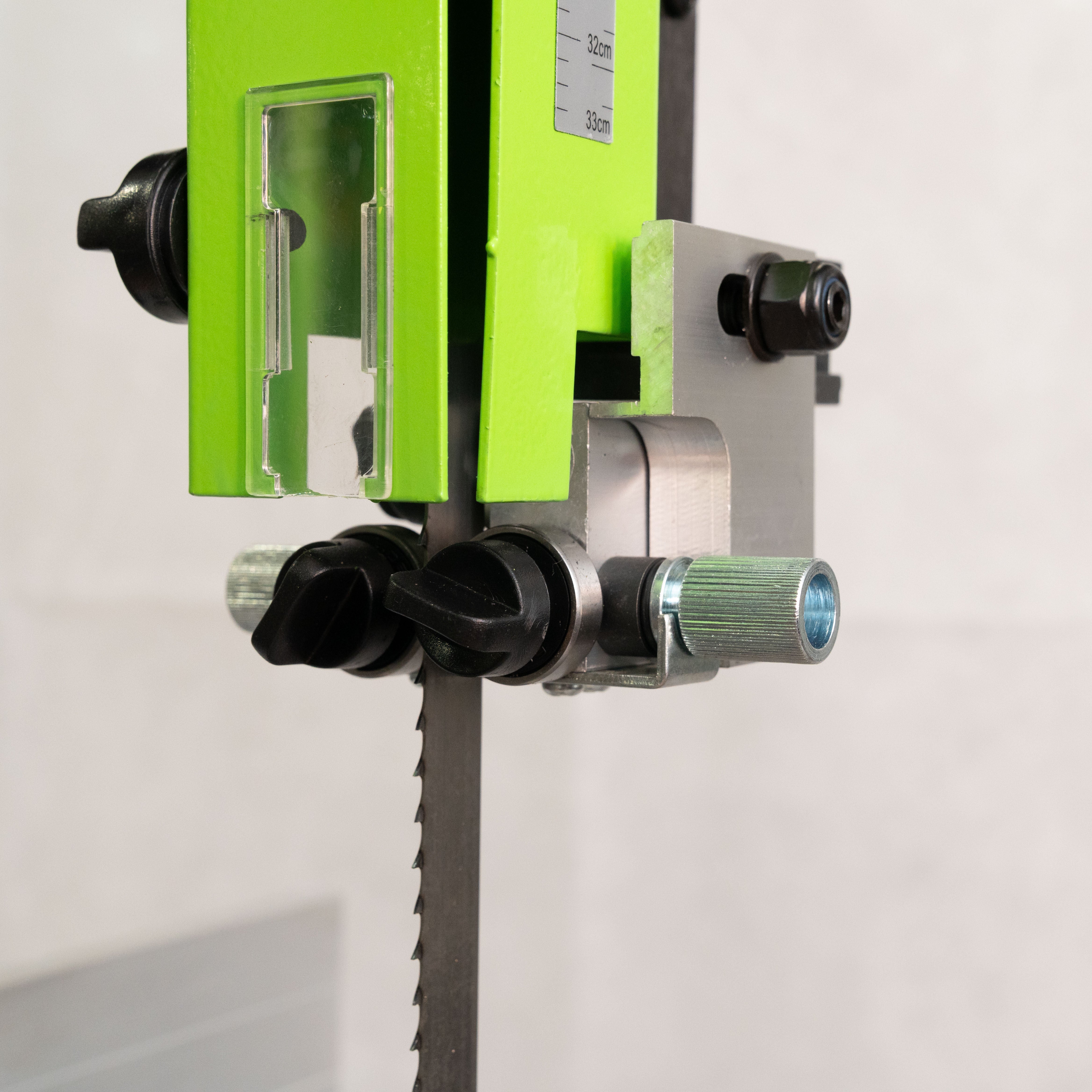

- Spring Loaded Tool-less Blade Guide System can be easily adjusted quickly and without tools. The guides are spring loaded, with the spring pushing the guide away from the blade when its not locked in place.

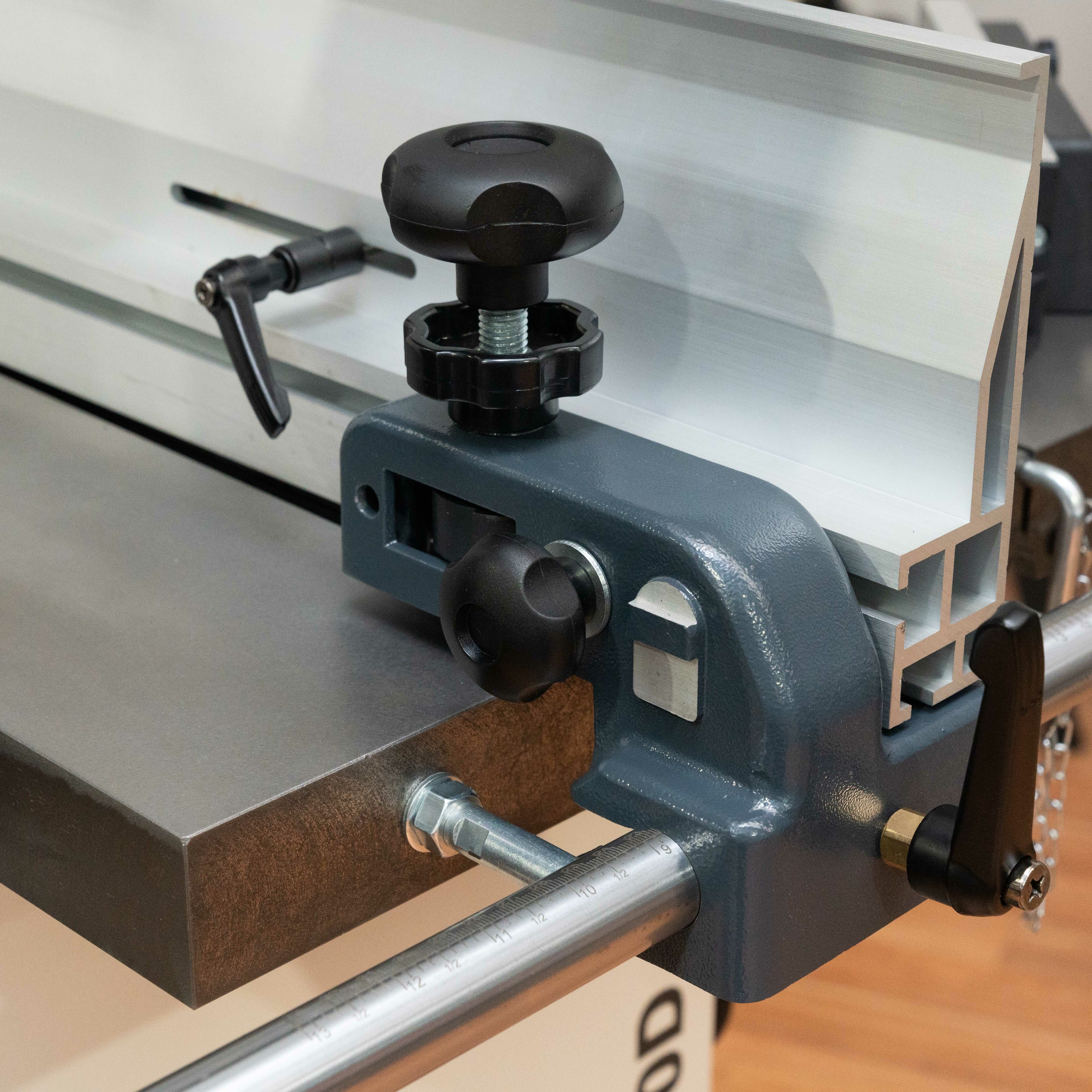

- The unique fence mount design allows he fence to be placed to the right hand side of the blade with the fence extrusion secured on the opposite side of the mount.
- Release and re-apply blade tension instantly using the cam-action handle. This makes changing blade simple and fast and if the new blade is the same as the old, the correct tension can be instantly re-applied on fitting.
- Metal storage cabinet base.
- Easy Drift Fence Alignment Functionality
Please note On/Off switch varies slightly from image.
Please note the 150mm (6") Rip Fence Assembly included can also be purchased separately to retrofit onto your bandsaw. Please click here for more info.
Client Work

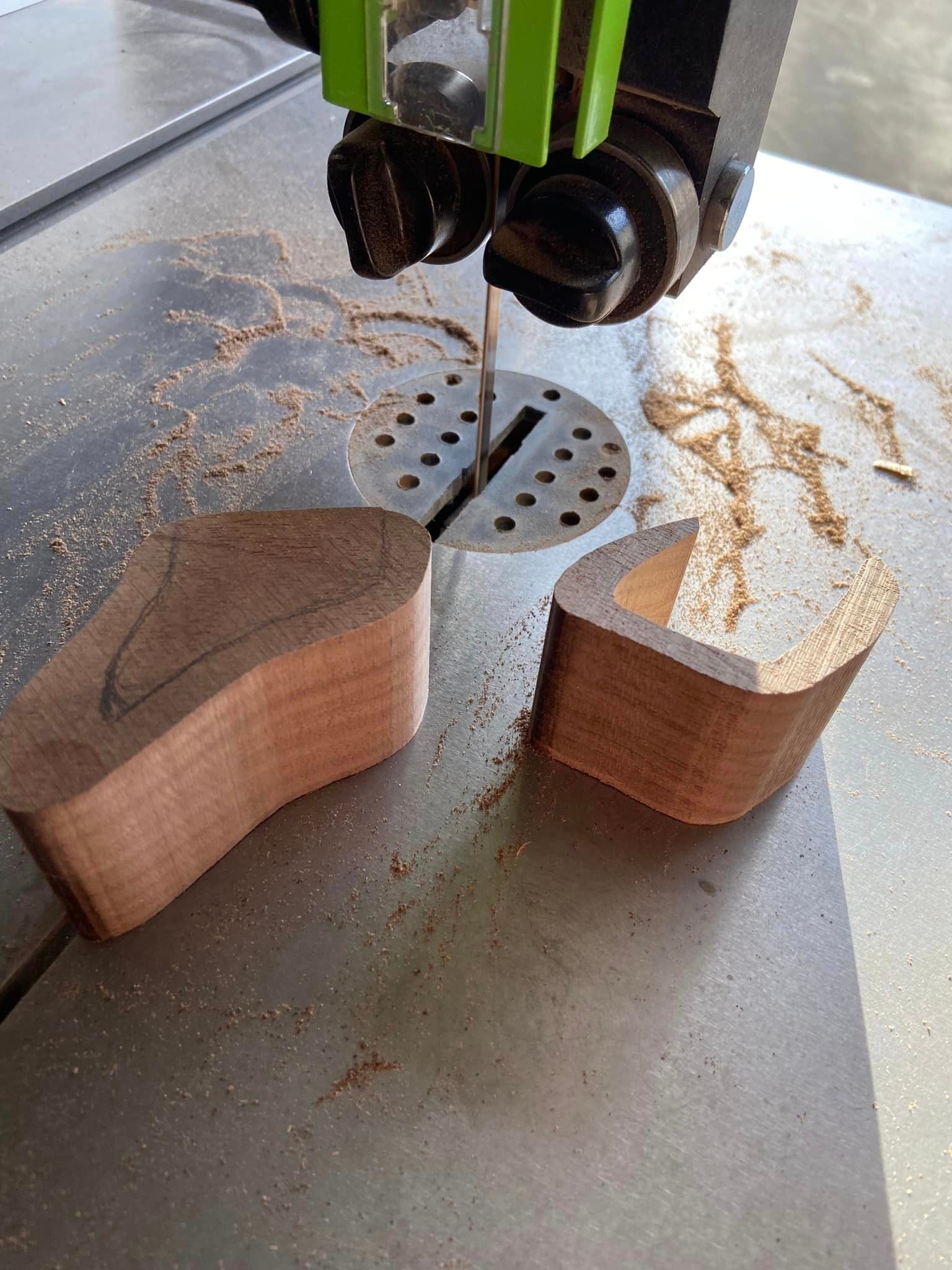

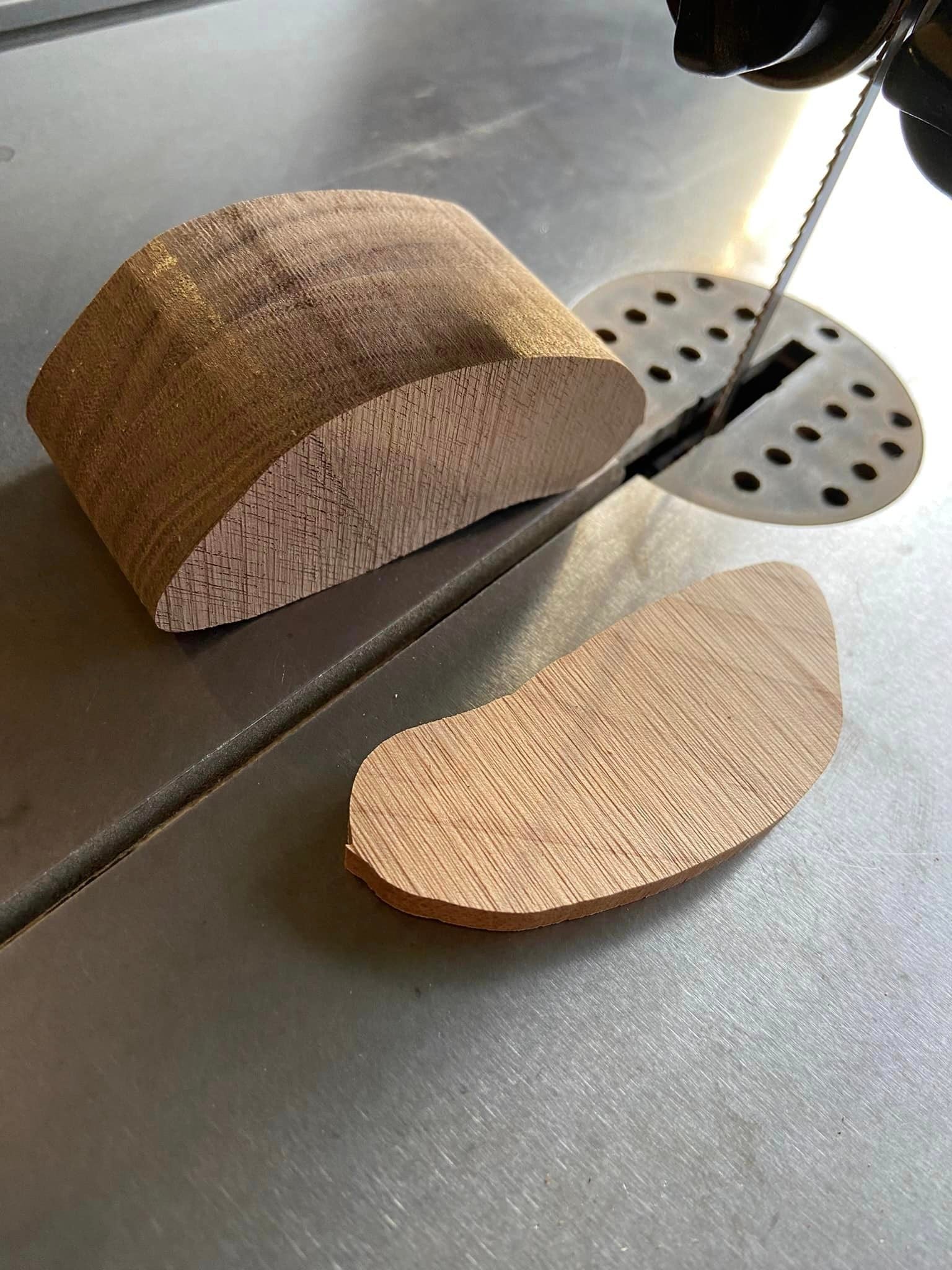

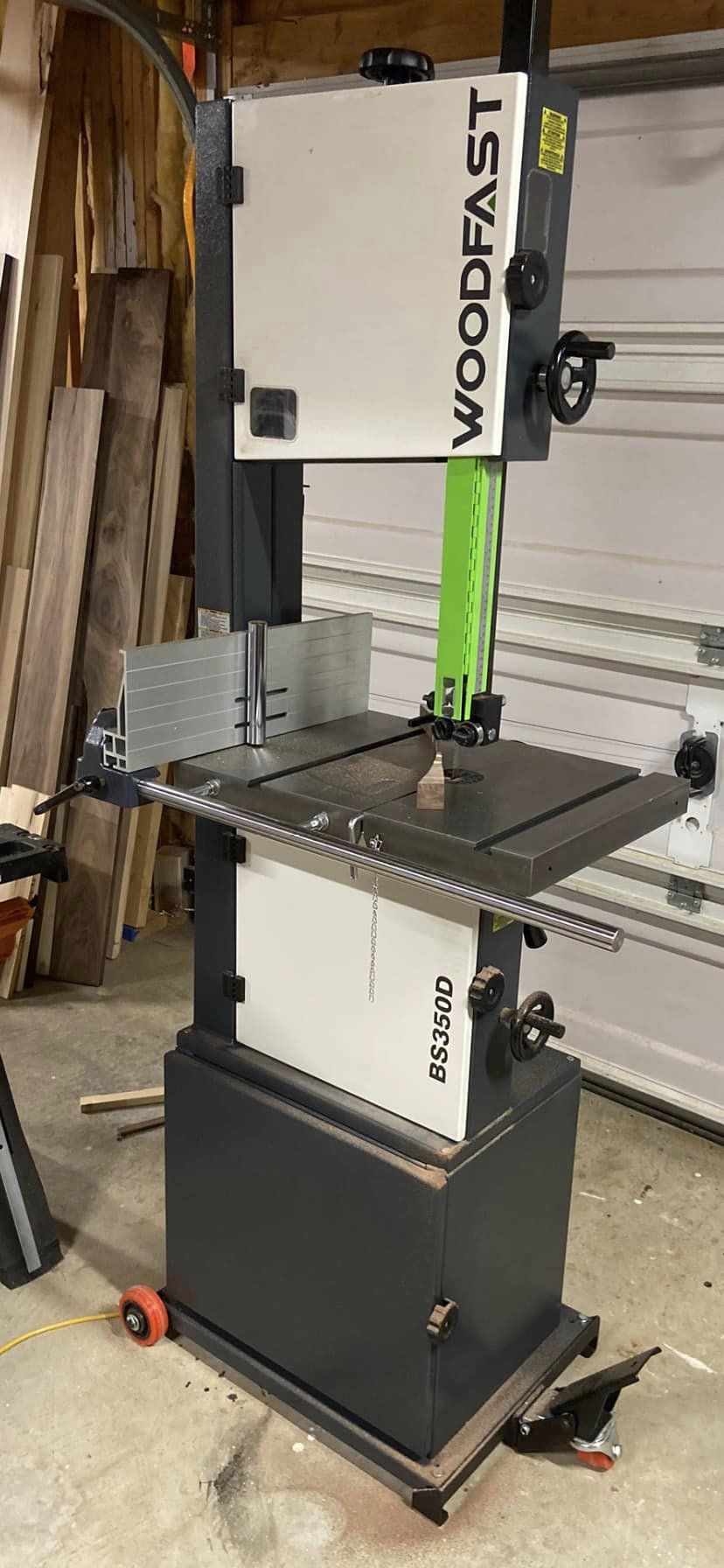

- Phil Disney, USA - Phil purchased the BS350D in 2022. Follow Phil via Instagram: @phildisney Facebook: phil.disney
Image Credits
Some user images courtesy of Phil Disney. USA. Follow Phil via Instagram: @phildisney Facebook: phil.disney
Options
- BS350D-N
- BS350D
Options
- BS350D-N
- BS350D
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
230-240V 50Hz (Single Phase)
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
2HP (1.5kW)
Bandwheel
Cast Iron
Blade Type
Continuous
Blade Length
2820 mm
Blade Width
6-19mm
Cutting Capacity - Height
330 mm
Throat Capacity
345 mm
Table Size
545 x 400mm
Speed Range
440m/min., 900m/min.
Dimensions
Product Length
840 mm
Product Width
620 mm
Product Height
1770 mm
Product Weight (Net Weight)
129 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Rack & Pinion
Rack & Pinion
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack).
Tool Less Blade Guide System
Tool Less Blade Guide System
Tool Less Blade Guide System features quick adjusting, spring loaded, ball bearing blade guides for fast and easy setting to the blades.
Blade Tensioning Quick Release Device
Blade Tensioning Quick Release Device
Lever to ensure quick release of blade tensioning when not in use to help prevent blade stretching and deforming the band saw tyres, which are likely made of rubber or urethane. A stretched blade will cause the operator to increase blade tension to compensate, increasing blade break risk.
De-tensioning your blade will extend the life of your blade.
De-tensioning your blade will extend the life of your blade.

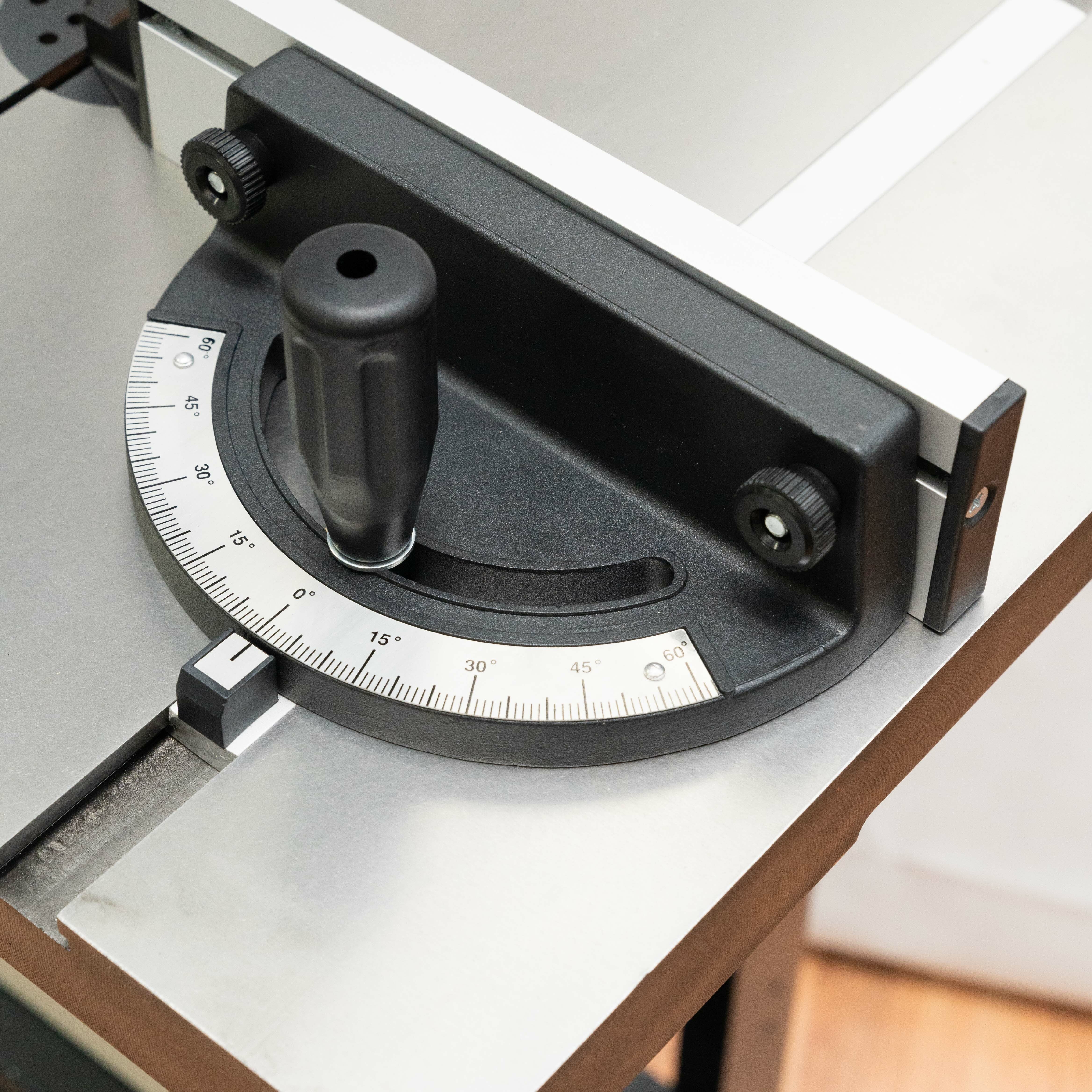

Mitre Gauge Included
Mitre Gauge Included
A mitre gauge is a device used for holding workpieces at a set angle while being cut on table saws, bandsaws or sanded on stationary disc sanders. The mitre gauge slides in a slot on the worktable (known as a mitre slot) on the machine being used.
Push Stick Included
Drift Bar
Drift Bar
The drift bar acts as a thickness gauge and adjusts the angle of cut with the scribed line, ensuring a uniform thickness without putting undue strain on the blade.
Tilting Table
Tilting Table
A tilting table in a machine is a mechanical component designed to adjust the angle or orientation of a work surface or workpiece relative to the machine's axis of operation. This adjustable feature enables operators to position the workpiece at different angles, facilitating various machining processes such as drilling, milling, or grinding. Tilting tables are commonly found in machining centers, allowing for greater flexibility in manufacturing operations by accommodating different machining requirements and achieving precise workpiece positioning for optimal results.
Standard Inclusions
Mitre Gauge
Safety
Safety Switch
Safety Switch
Safety switches are low-wear and low-maintenance when it comes to safe monitoring of doors or safe position monitoring.
Magnetic safety switches on all openings
Blade Guard
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.

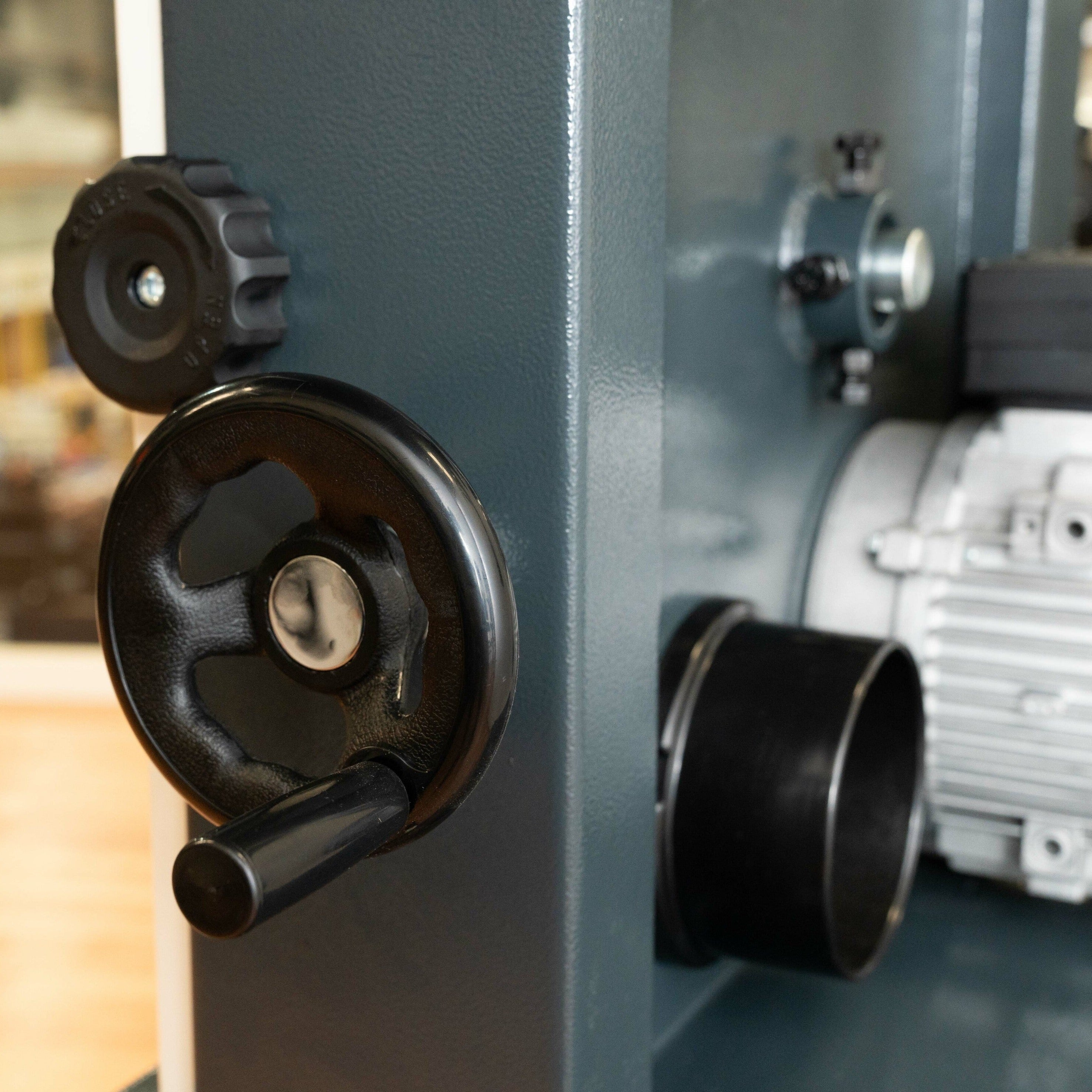

Rack & Pinion Blade Guide Height Adjustment
Rack & Pinion Blade Guide Height Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
Rack & Pinion Table Angle Adjustment
Rack & Pinion Table Angle Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
Dust Port
100mm
Workshop (Site) Info
Electrical Connection
10Amp Lead & Plug
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
1400 mm
Shipping Width
460 mm
Shipping Height
620 mm
Shipping Weight (Gross)
137.0 kg
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Whats Included
350mm (14") Bandsaw with Storage Cabinet Base 2HP 240V BS350D by Woodfast
$2,250.00
