Type
Big Boy / Oscillating Belt Sander
SKU
8043153
Part Number
OS1006
Brand
Woodfast
Size
2515mm (100") x 150mm (6")
Status
Available
Description

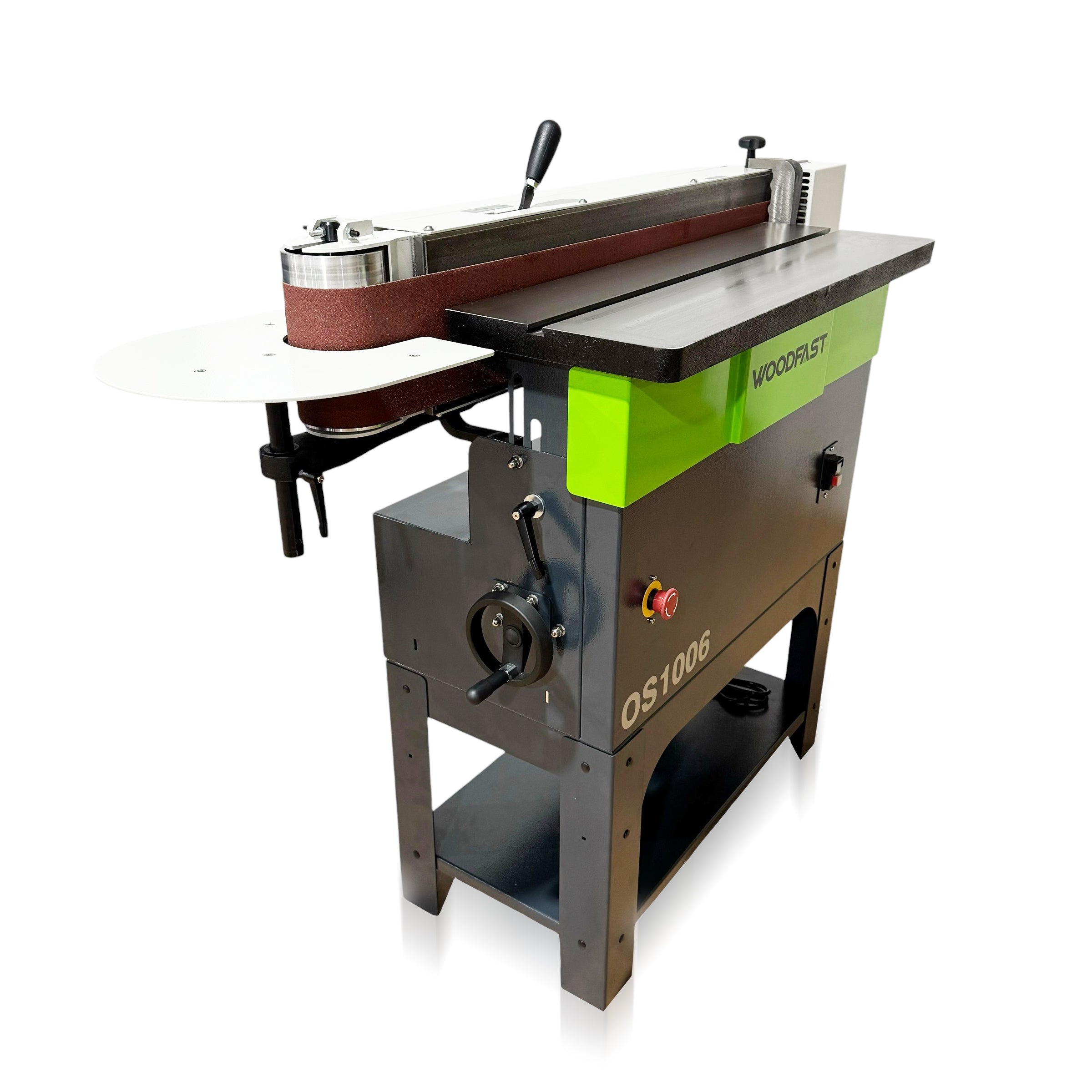

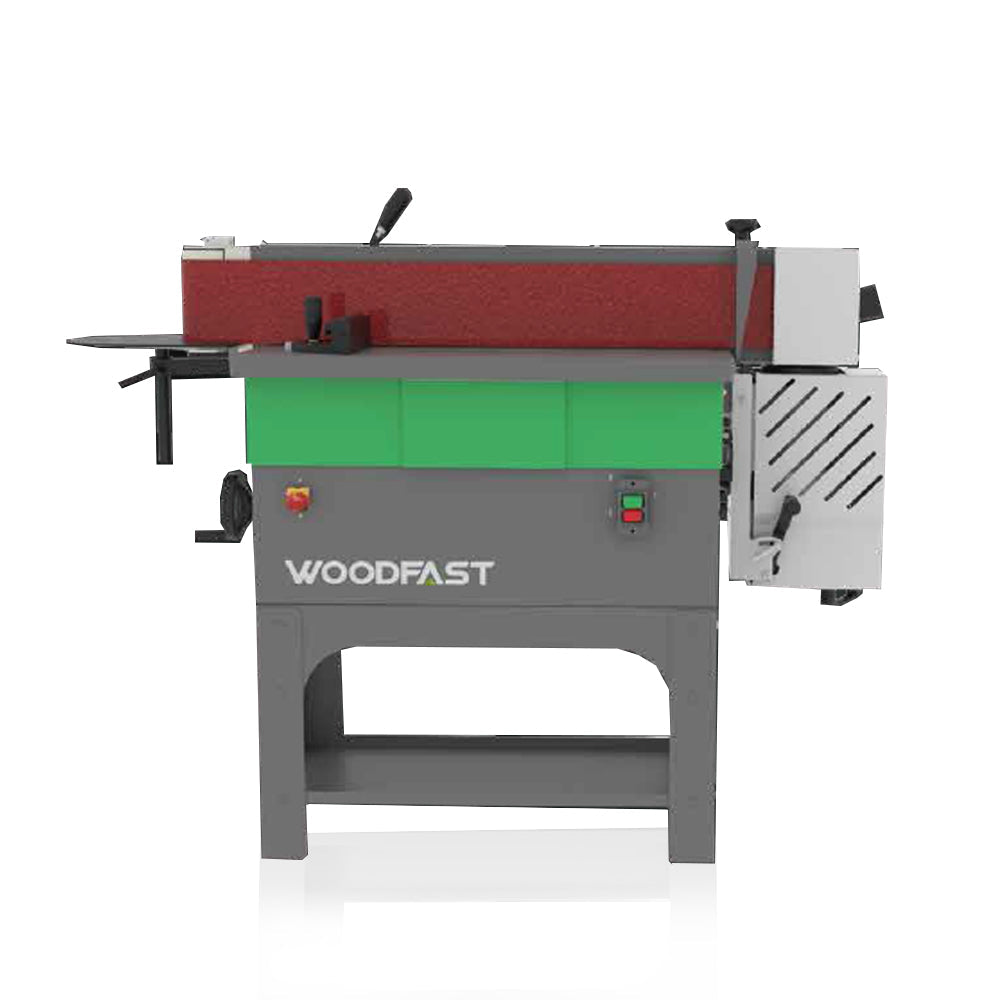

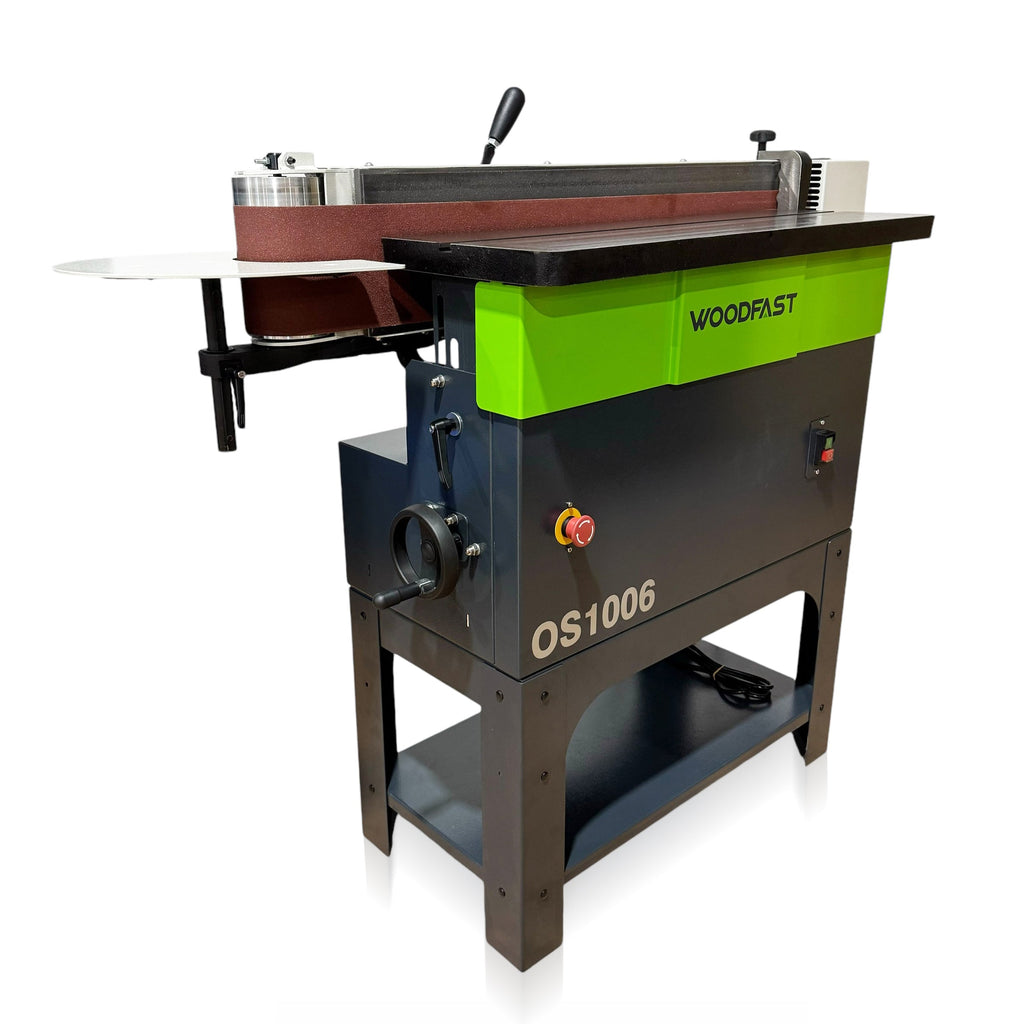

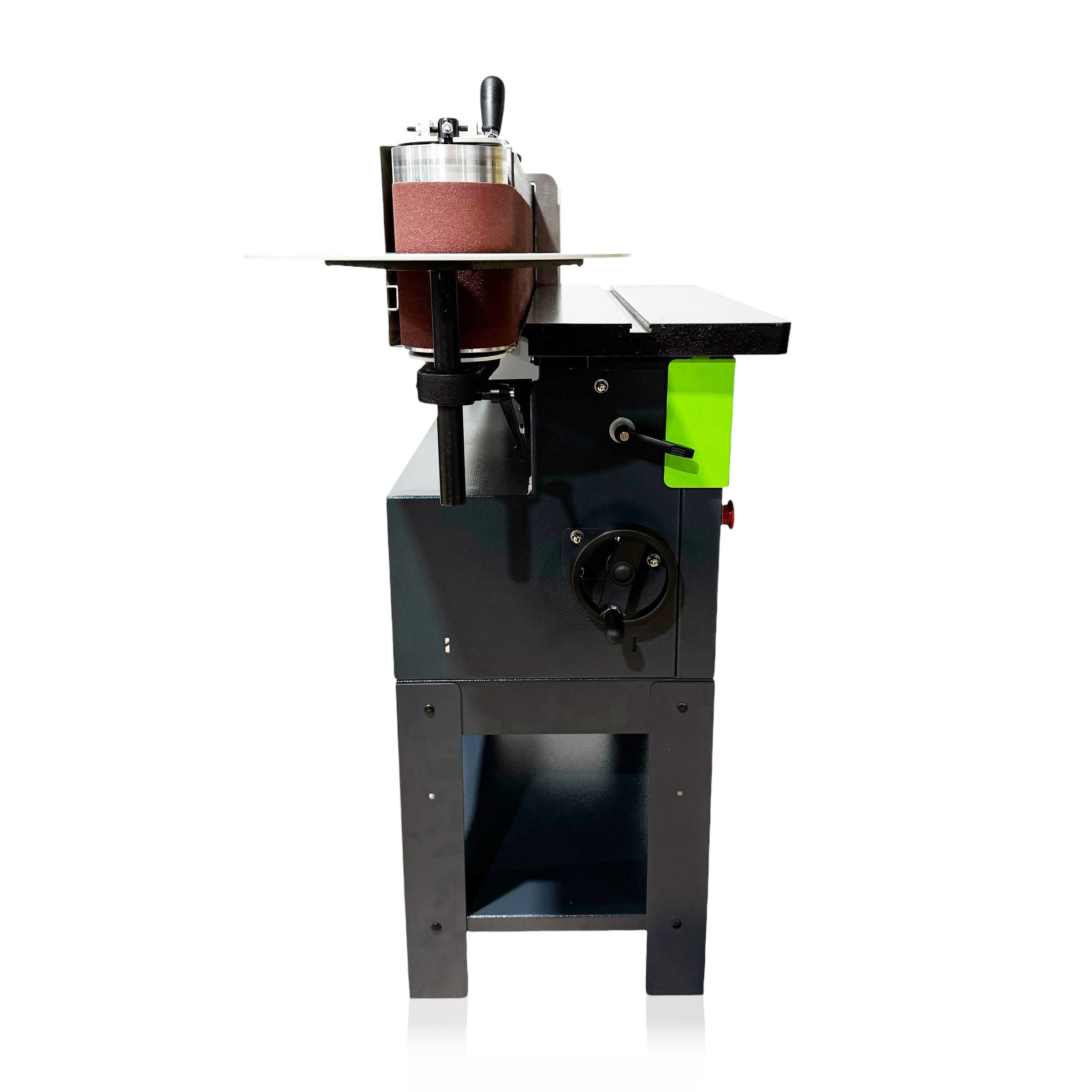

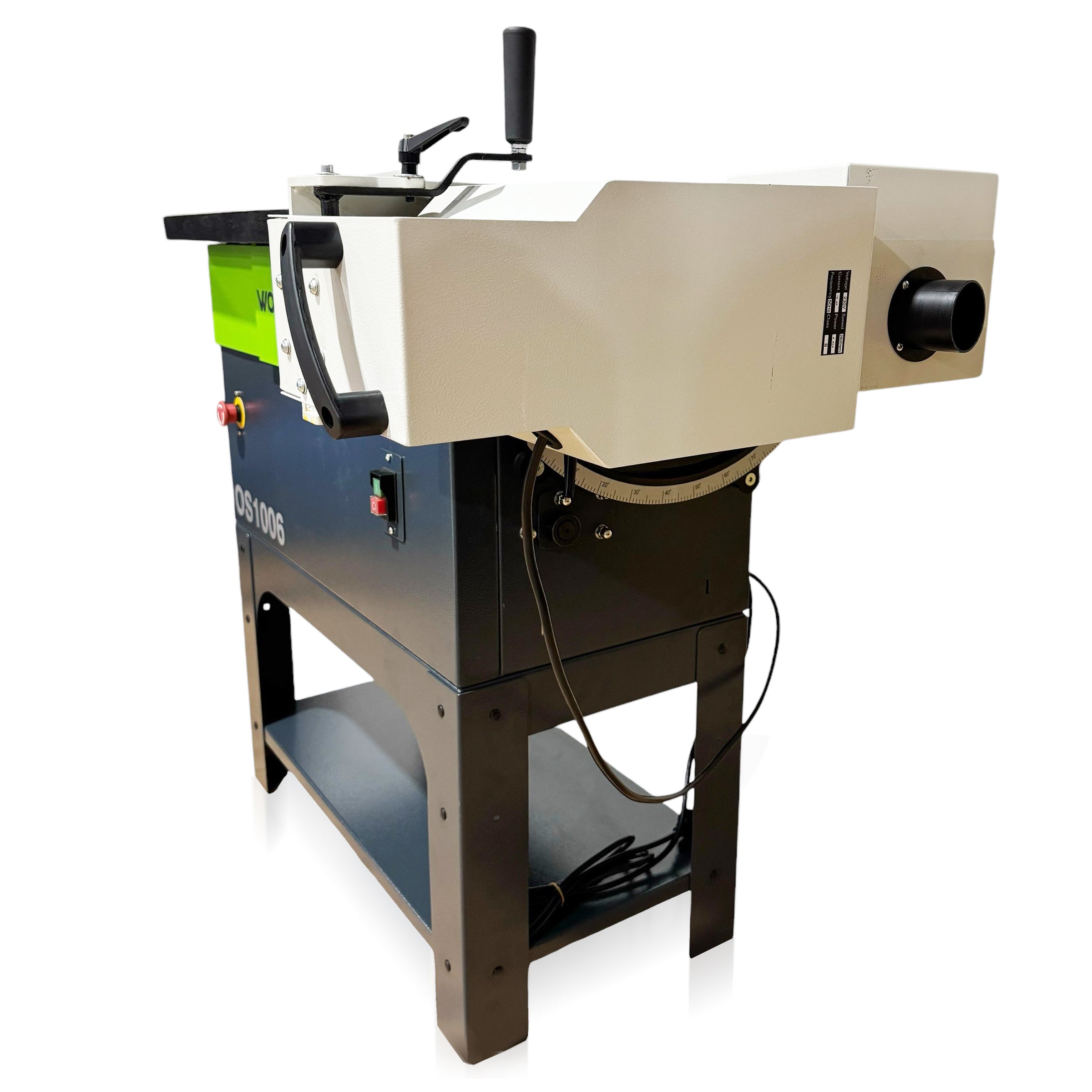

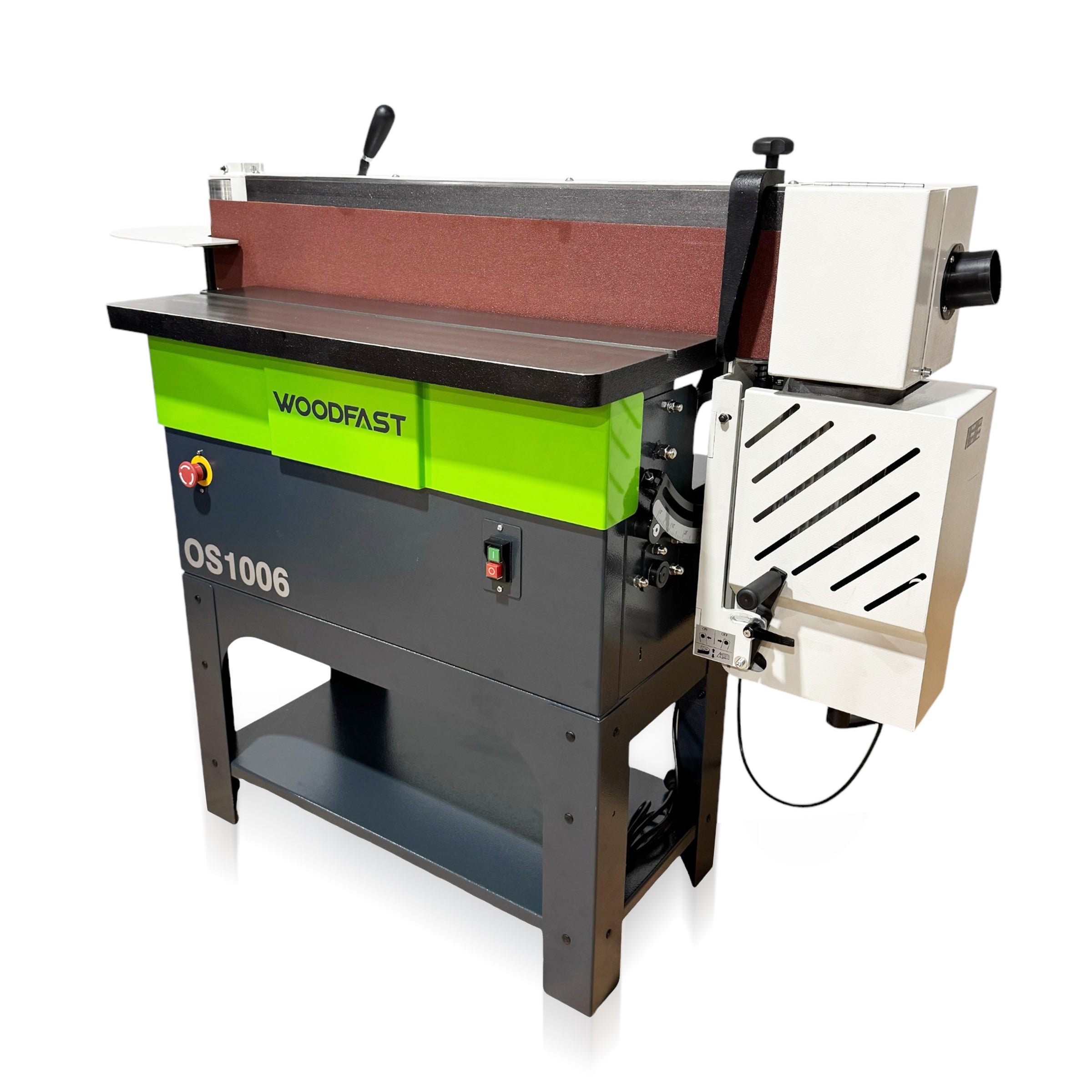

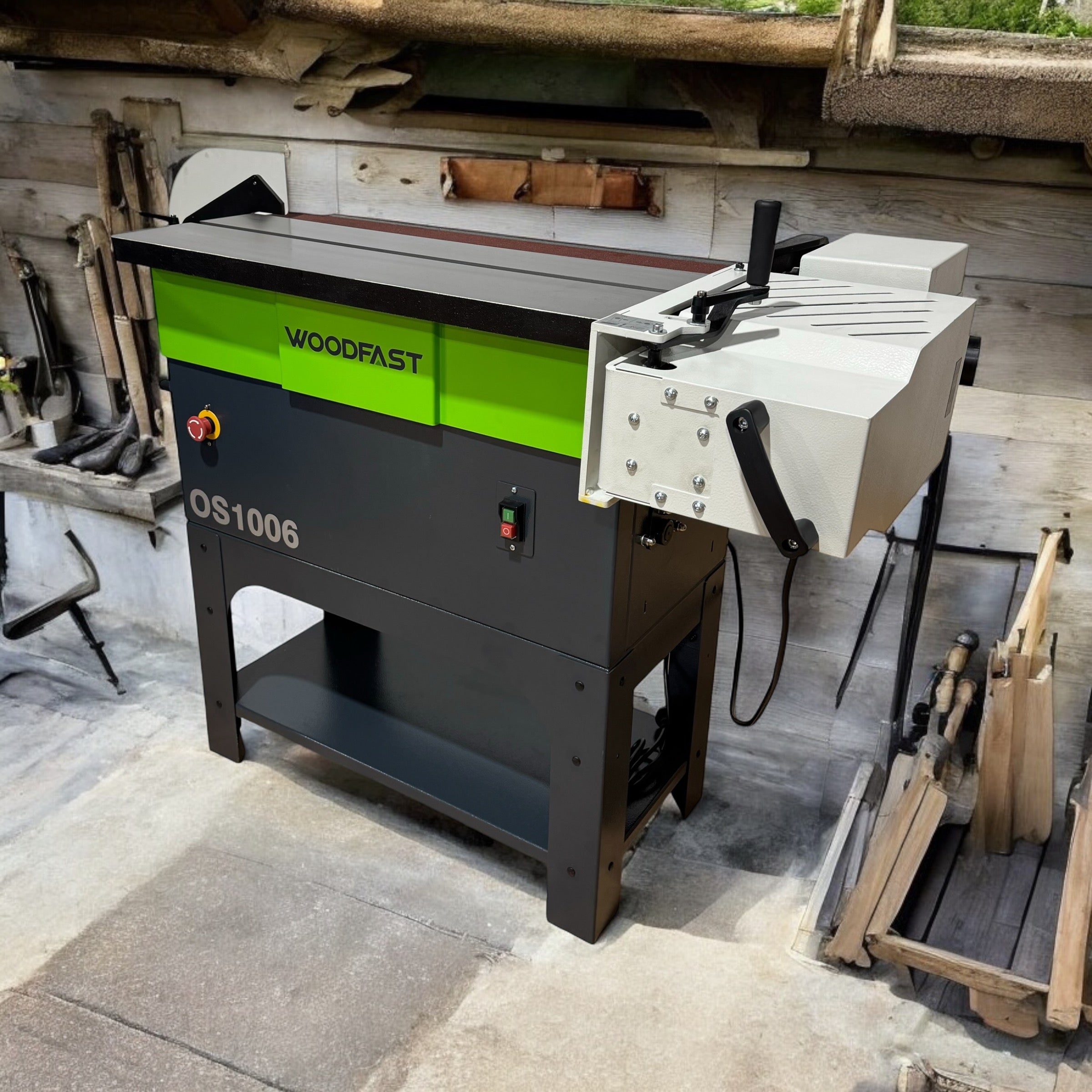

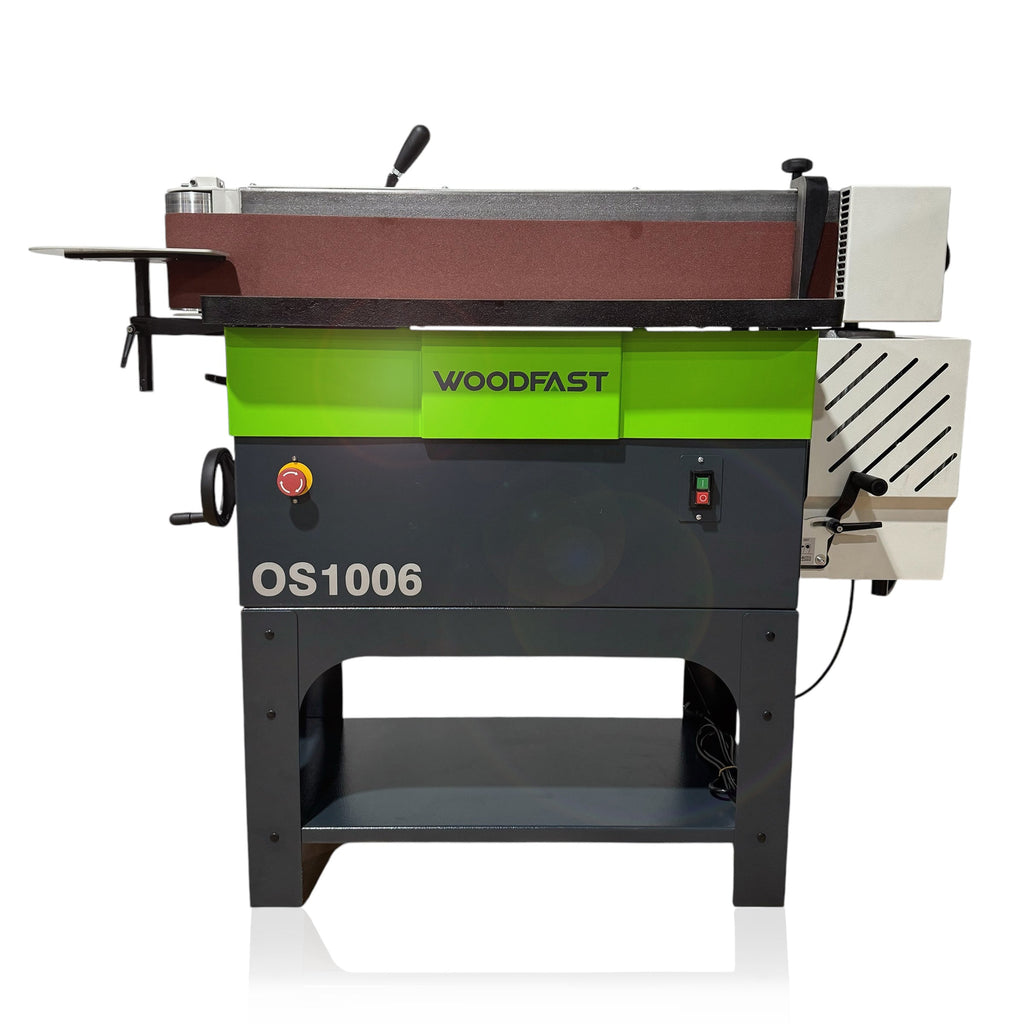

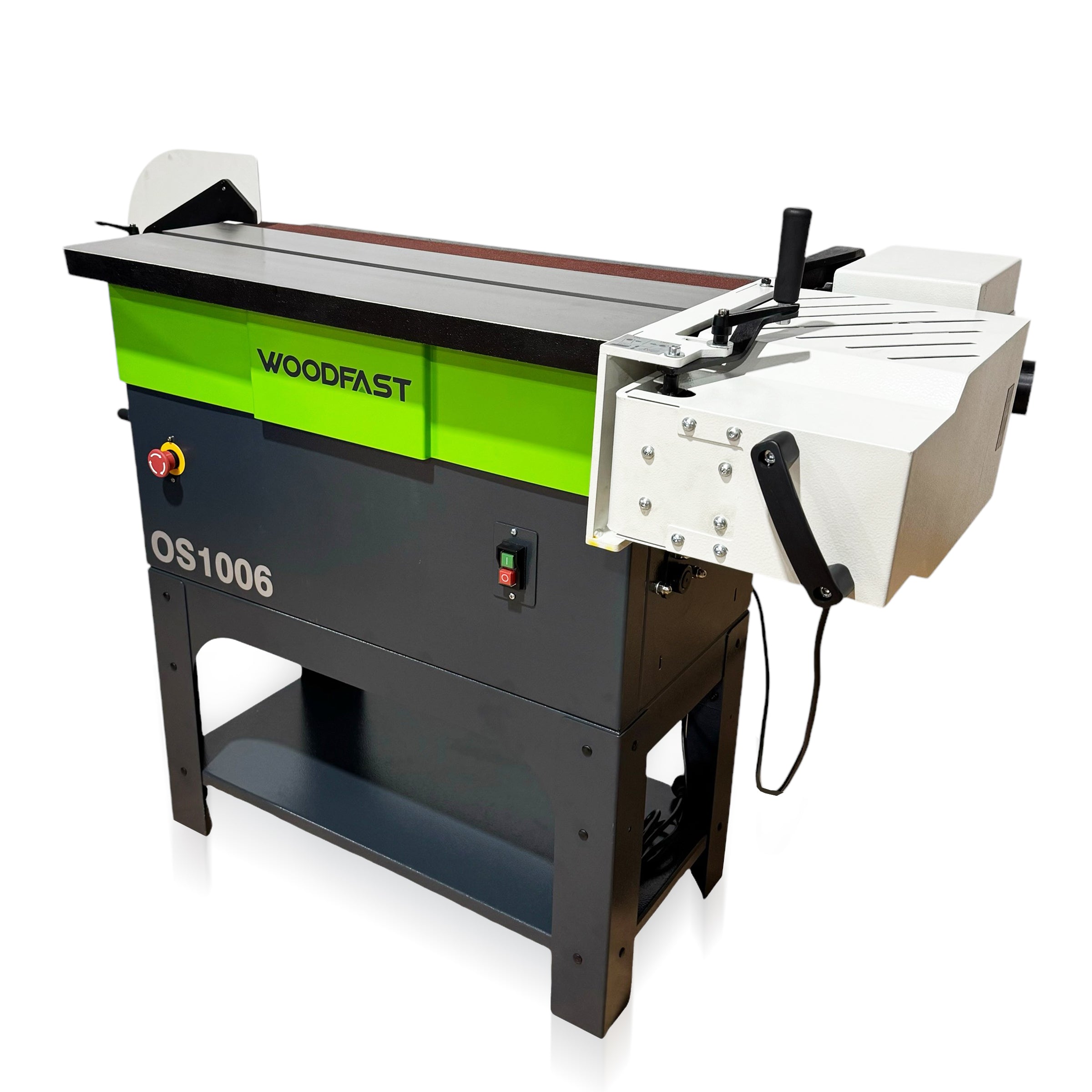

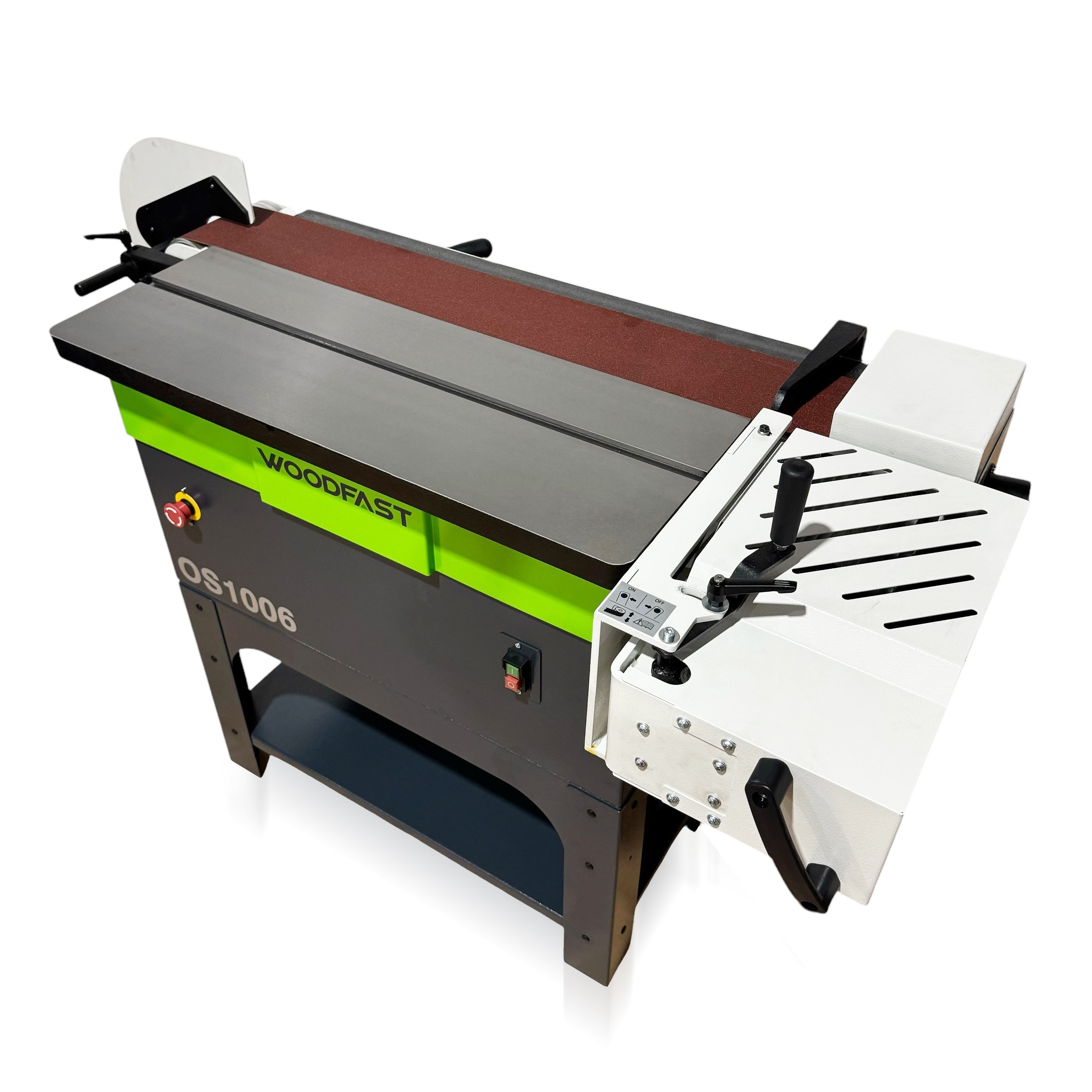

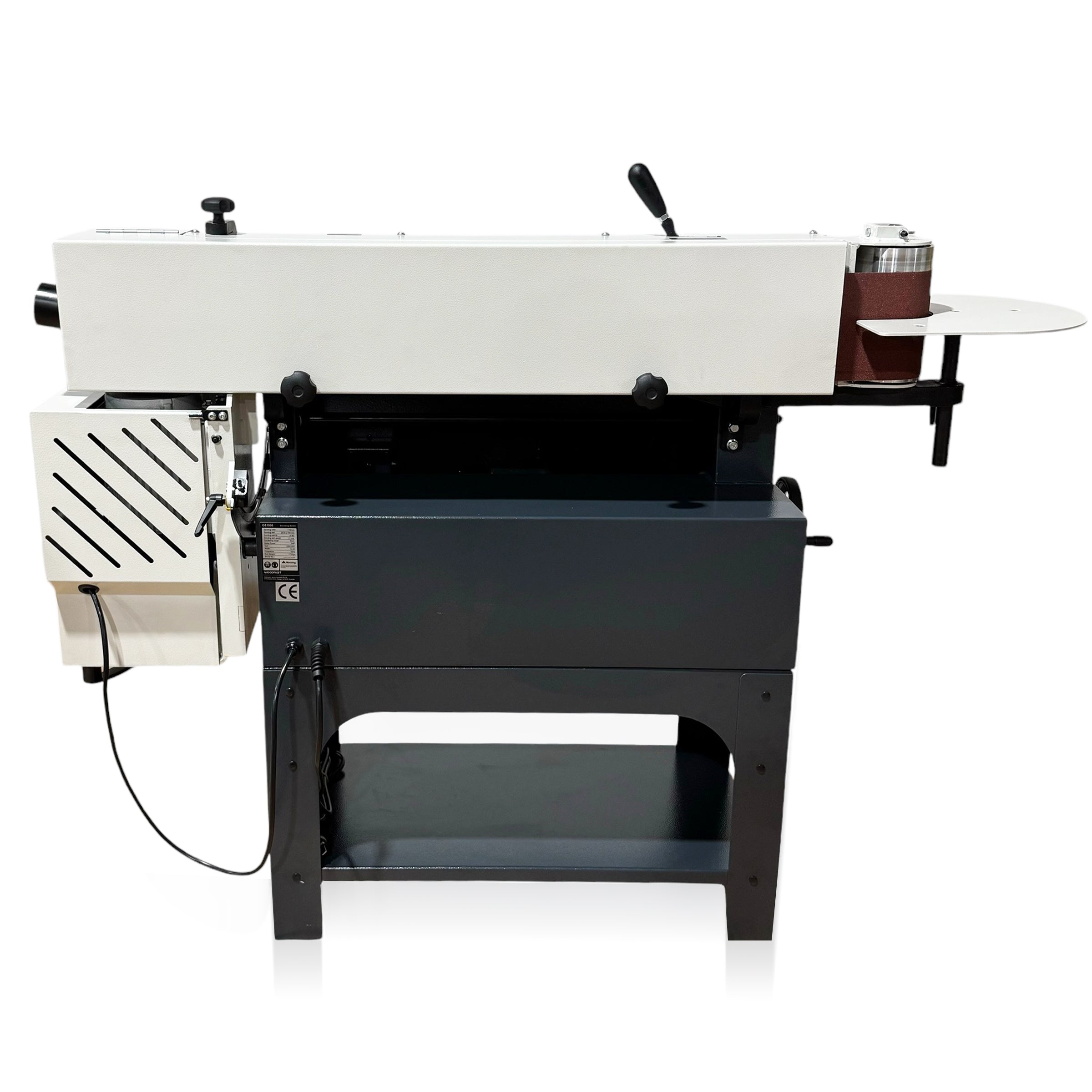

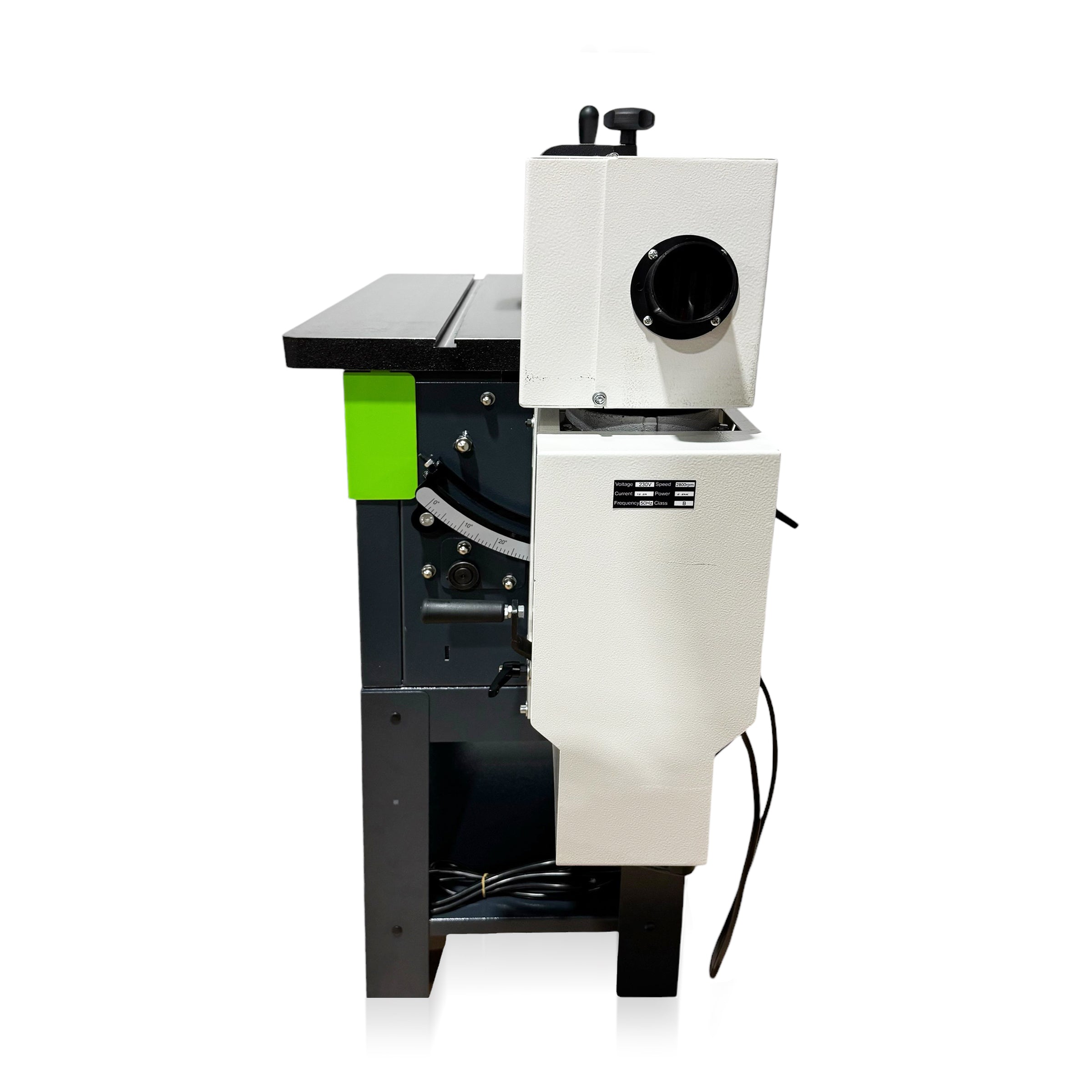

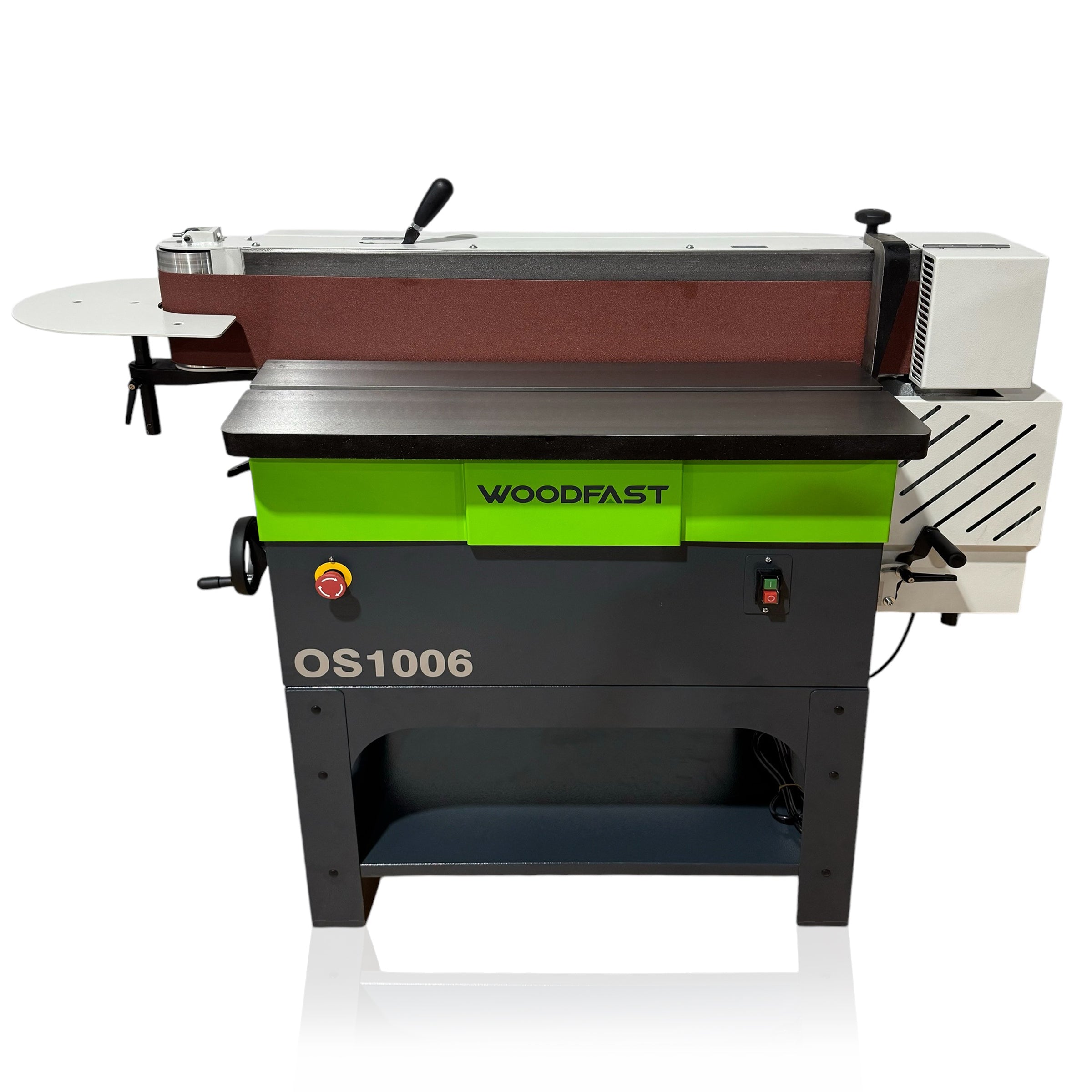

Get ready to be blown away by the new arrival from Woodfast - the Oscillating Big Boy Sander 2515mm (100") x 150mm (6") 3HP 240V OS1006! With unbeatable performance and rugged durability, this sander is perfect for all your sanding needs. Experience improved balance and extended service life with this powerhouse machine. Don't miss out on this ideal entry level tool for edge sanding!
Features

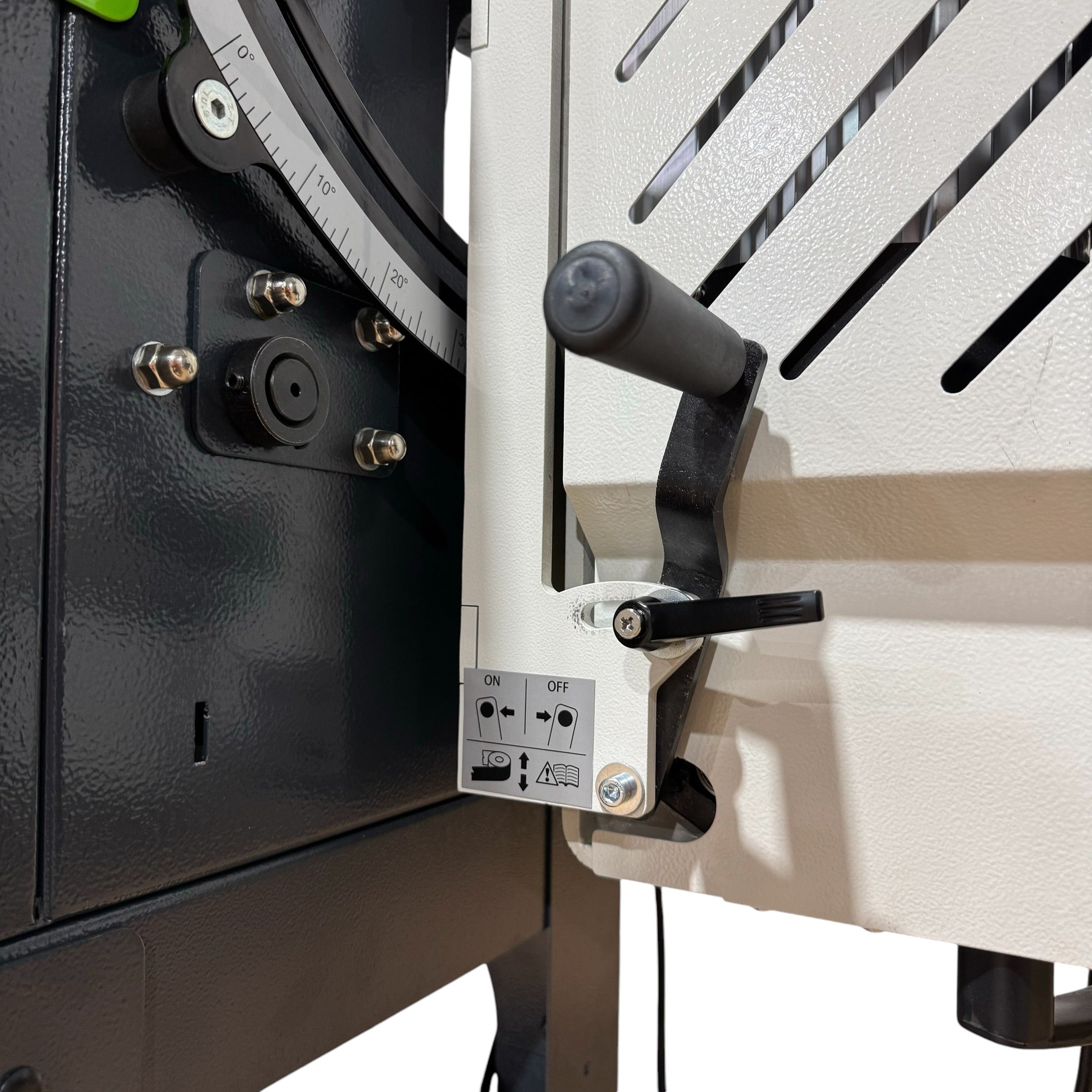

- On / Off Oscillation Lever

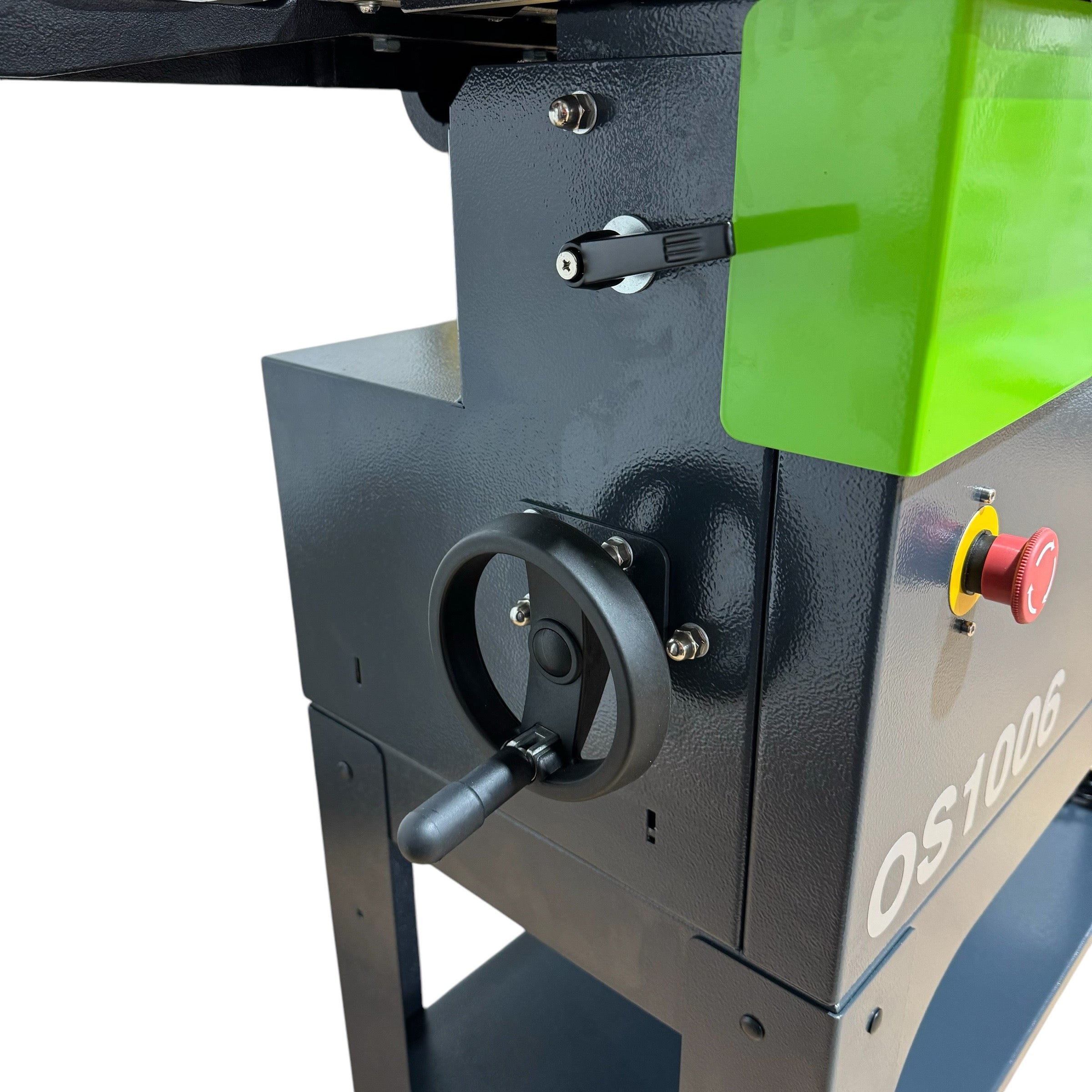

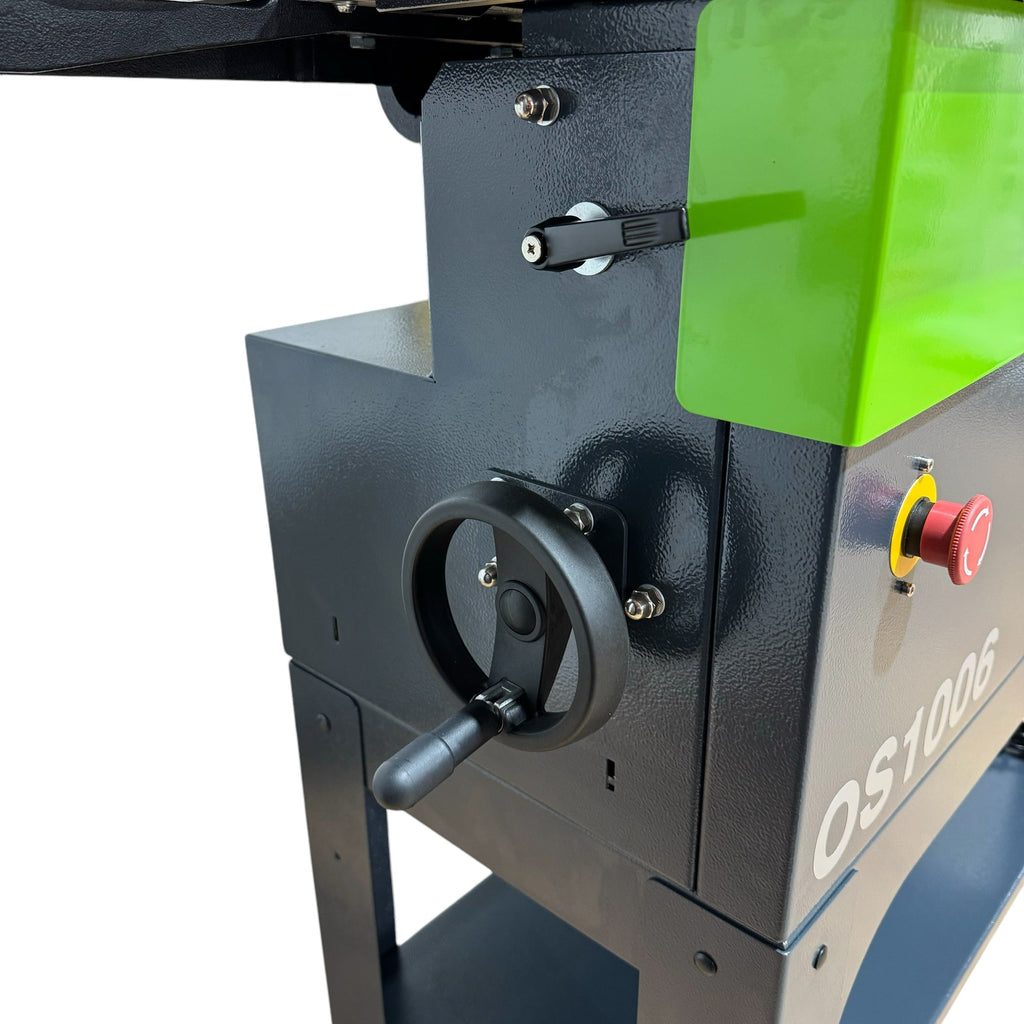

- Height Adjustable Cast Iron Table using the Hand Wheel

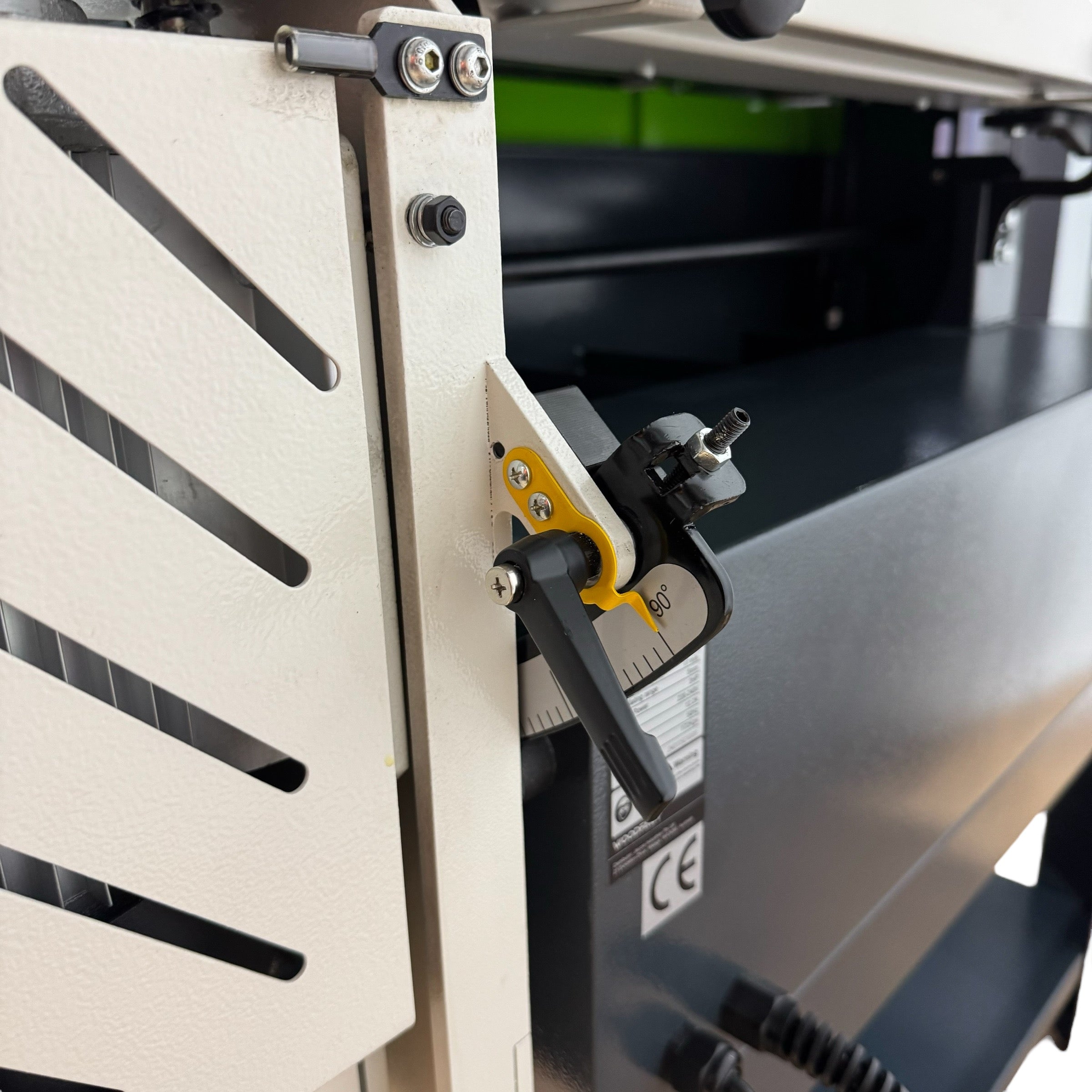

- Sanding table tilts from 0°–90°
- Open Designed Belt Sanding
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
4HP (3kW / 3000W)
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)
Oscillating Range
5.5 mm
Sanding Belt Size
150mm x 2515mm
Sanding Belt Speed
1020m/min. (17m/sec)

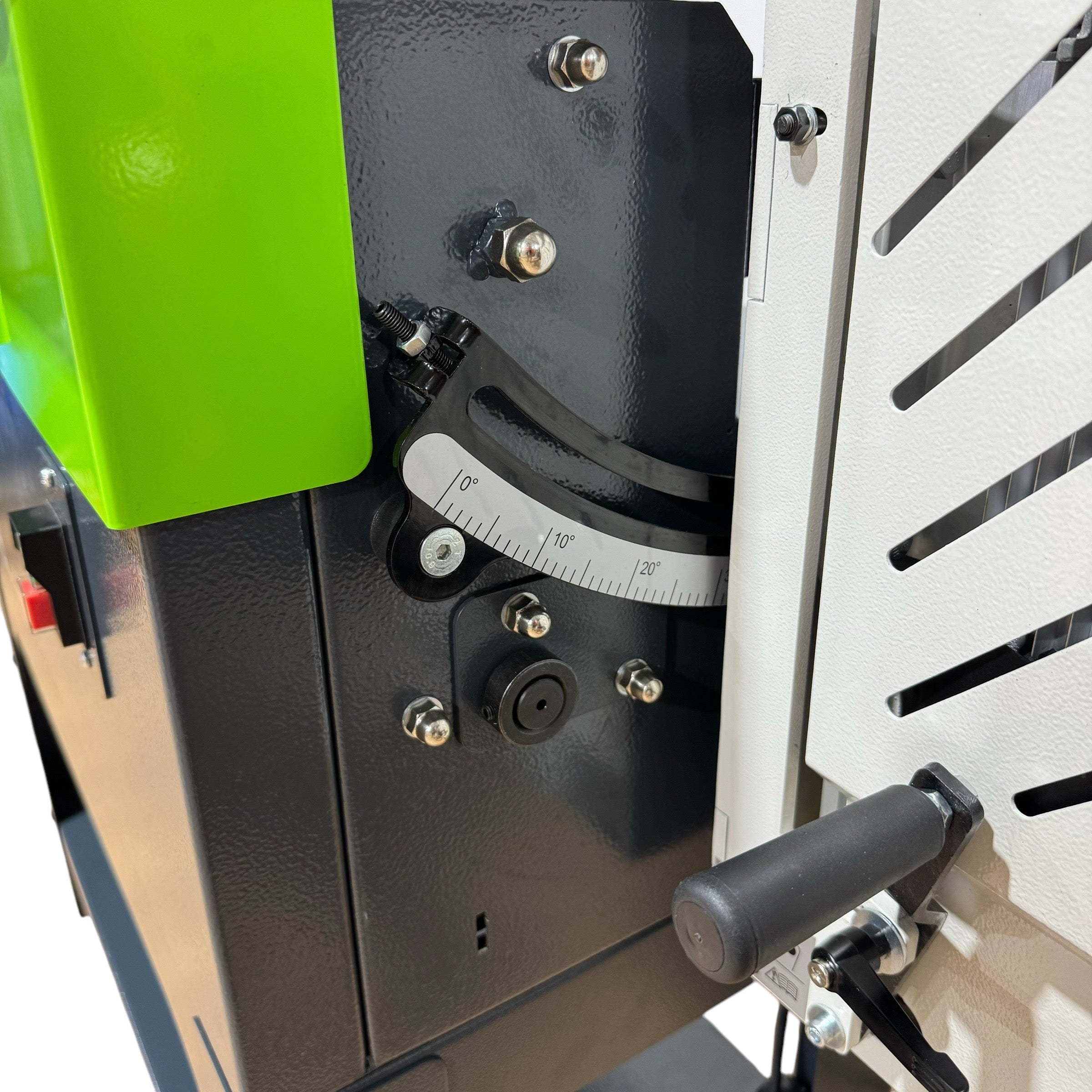

Sanding Belt Table Tilt
0-90°

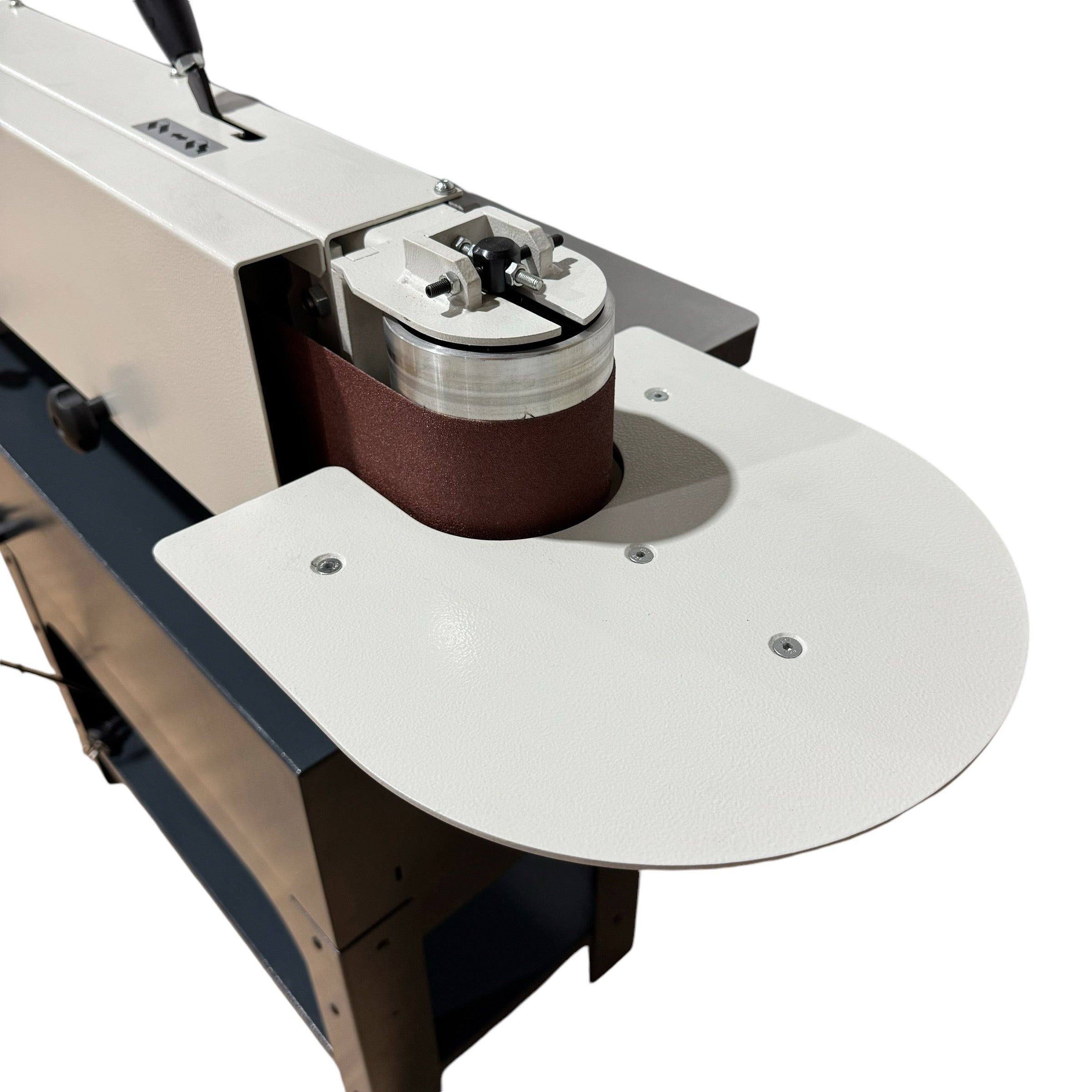

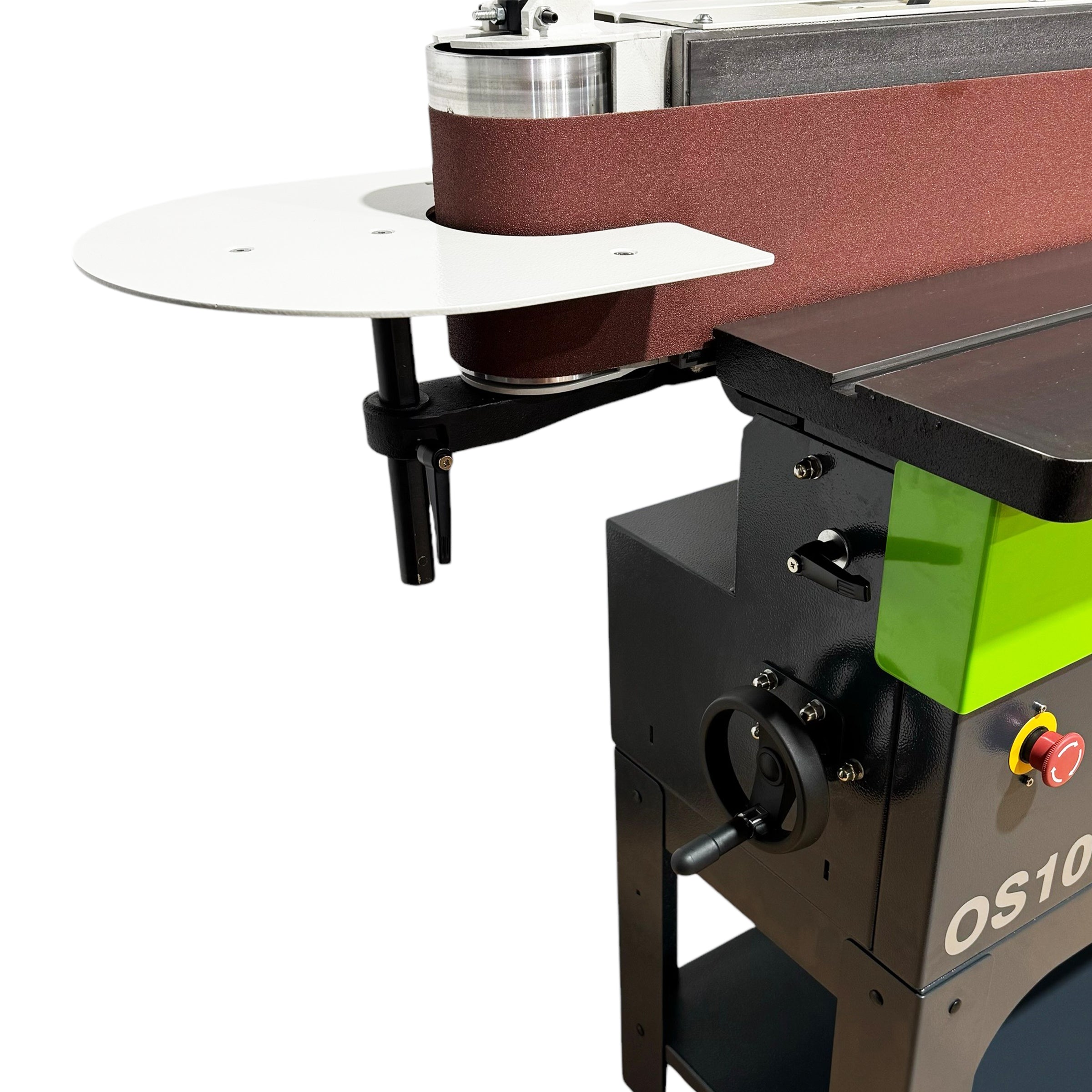

Sanding Roller
110 mm
Table Height
900-1000mm
Table Size
855 x 300mm
Dimensions
Product Length
1488 mm
Product Width
530 mm
Product Height
1170 mm
Product Weight (Net Weight)
172 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Induction Motor
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.

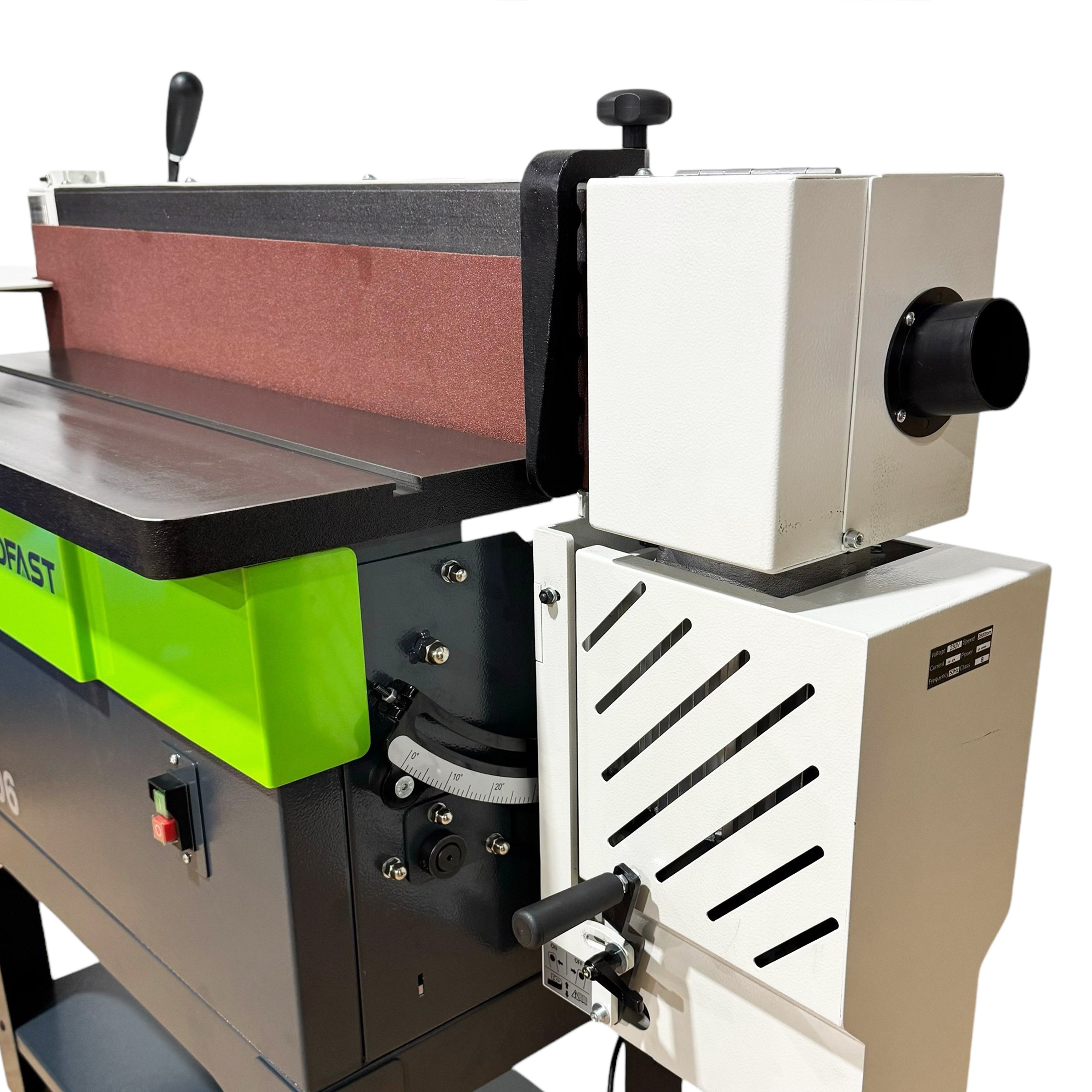

Dust Port
63mm
Workshop (Site) Info
Electrical Connection

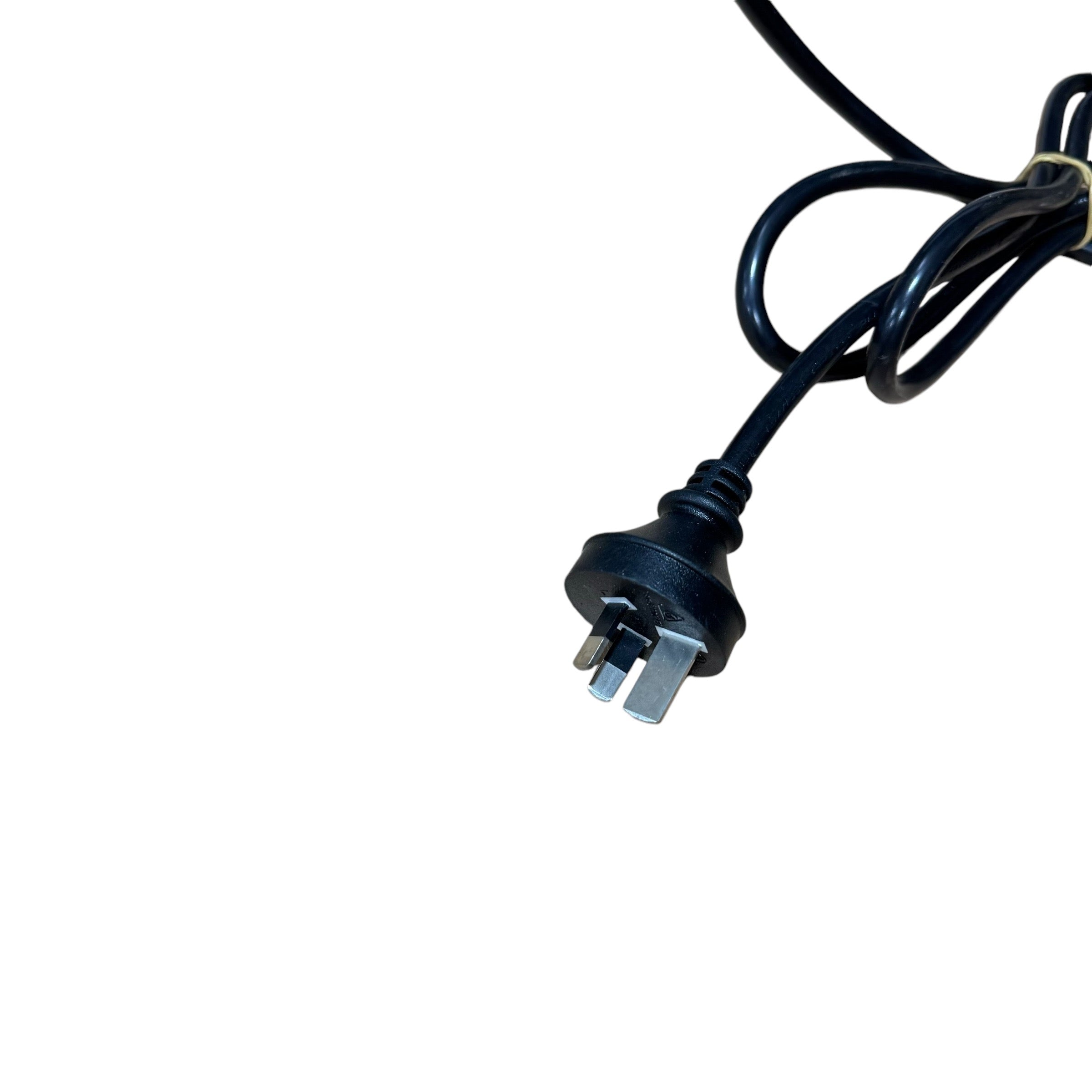

15Amp Plug & Lead
Workshop Requirements
Dust Extraction
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
1430 mm
Shipping Width
776 mm
Shipping Height
650 mm
Shipping Weight (Gross)
216.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
1
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
Whats Included
Oscillating Big Boy Sander 2515mm (100") x 150mm (6") 3HP 240V WF-OS1006 by Woodfast *New Arrival*
$2,195.00
